NM01T510LUN

The SIUI TOFD Probe is a high-resolution ultrasonic transducer designed for precise Time-of-Flight Diffraction (TOFD) inspections in non-destructive testing (NDT). Operating at a frequency of 5 MHz, this probe delivers exceptional resolution, enabling the detection and accurate sizing of small flaws and discontinuities. The 10mm crystal diameter contributes to a focused ultrasonic beam, enhancing sensitivity and precision in flaw detection. Equipped with a Lemo 00 connector, this probe ensures a secure and reliable connection to ultrasonic testing instruments, minimizing signal loss and interference. The inclusion of a 3/8-32UNEF screw thread unit provides robust and standardized mounting options, facilitating seamless integration with various probe holders and wedges. Notably, this probe does not feature an integrated irrigation system. Manufactured by SIUI, a trusted leader in NDT equipment, this TOFD probe offers superior performance, reliability, and precision for critical high-resolution inspections.

Key Features and Benefits:

• 5 MHz Operating Frequency:

  • Provides exceptional resolution for detecting small flaws and discontinuities.

  • Ideal for high-precision TOFD applications.

• 10mm Crystal Diameter:

  • Produces a focused ultrasonic beam for enhanced sensitivity and accuracy.

  • Improves flaw detection capabilities.

• Lemo 00 Connector:

  • Ensures a secure and reliable connection to ultrasonic testing instruments.

  • Minimizes signal loss and interference.

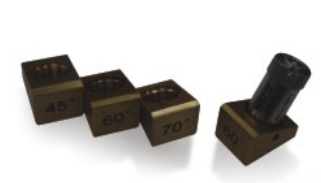

• 3/8-32UNEF Screw Thread Unit:

  • Provides robust and standardized mounting options.

  • Compatible with various probe holders and wedges.

• Not Irrigation:

  • Simple probe design.

• SIUI Manufacturing:

  • Manufactured by a reputable provider of NDT equipment, ensuring high quality and durability.

  • Provides confidence in performance and reliability.

Applications:

• Weld Inspections:

  • High-resolution flaw sizing and characterization in welds.

  • Detection of small cracks, lack of fusion, and other weld defects.

• Pipeline Inspections:

  • Evaluation of pipeline integrity and detection of fine flaws.

  • Corrosion and crack detection.

• Pressure Vessel Inspections:

  • Inspection of pressure vessels for small flaws and discontinuities.

  • Ensuring structural integrity.

• General Non-Destructive Testing (NDT):

  • High-resolution flaw sizing and detection in various materials and components.

  • TOFD inspections in diverse industries requiring high precision.
