NM01MPS01A
The Siui PA Crawler MPS-01A is a state-of-the-art robotic system designed for precise and efficient corrosion mapping using phased array ultrasonic immersion testing. This advanced crawler is specifically engineered to perform comprehensive inspections on pipes with an outer diameter of 100mm (4 inches) or greater, as well as flat plates, making it an invaluable tool for asset integrity management in various industries.
The MPS-01A crawler utilizes phased array ultrasonic technology, enabling detailed and accurate mapping of corrosion damage. By employing immersion testing, where the probe and test piece are submerged in a liquid couplant, the system ensures optimal sound transmission and signal quality, leading to highly reliable inspection results.
This crawler is equipped with a 7.5L64-1.0-7-IH phased array probe, a specialized immersion probe designed for high-resolution corrosion mapping. This probe features a 7.5 MHz frequency, 64 elements, 1.0 mm element pitch, and 7 mm element height, providing exceptional sensitivity and flaw detection capabilities.
To facilitate continuous immersion testing, the MPS-01A crawler includes an integrated irrigation pump that delivers a constant flow of liquid couplant to the probe and test surface. This ensures consistent coupling and eliminates the risk of signal loss due to air gaps.

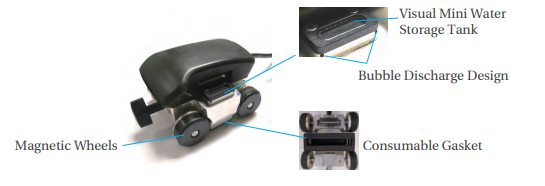

The crawler's magnetic wheels enable it to securely adhere to ferromagnetic surfaces, such as steel pipes and plates. This feature allows for stable and precise movement along the inspection surface, ensuring accurate data acquisition.
Manufactured by Siui, a leading provider of non-destructive testing (NDT) equipment, the MPS-01A crawler is built to meet stringent quality standards and performance requirements. Its robust design and reliable operation make it suitable for demanding industrial environments.
Key Features and Benefits:
Phased Array Immersion Testing: Provides detailed and accurate corrosion mapping.
7.5L64-1.0-7-IH Probe: Ensures high-resolution flaw detection.
Integrated Irrigation Pump: Maintains consistent coupling for reliable results.
Magnetic Wheels: Enables secure adhesion and precise movement.
Suitable for Pipes and Plates: Versatile for various inspection applications.
Siui Quality: Manufactured to high-quality standards.
Automated Inspection: Improves efficiency and repeatability.
Applications:
Pipeline integrity assessment.
Storage tank inspection.
Ship hull inspection.
Pressure vessel inspection.
General corrosion monitoring in industrial structures.
