NM01SYNCSCAN1664U

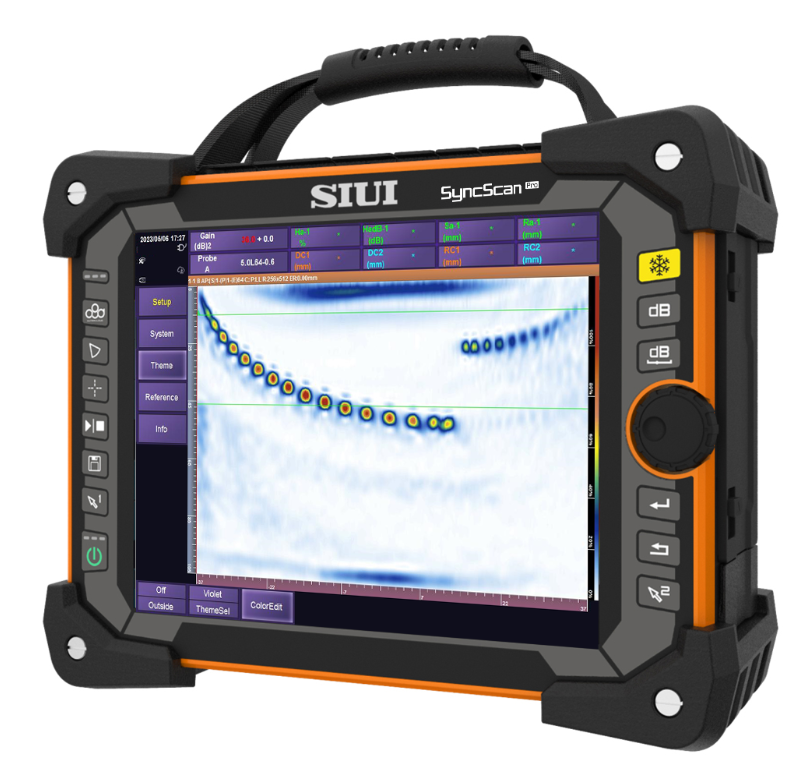

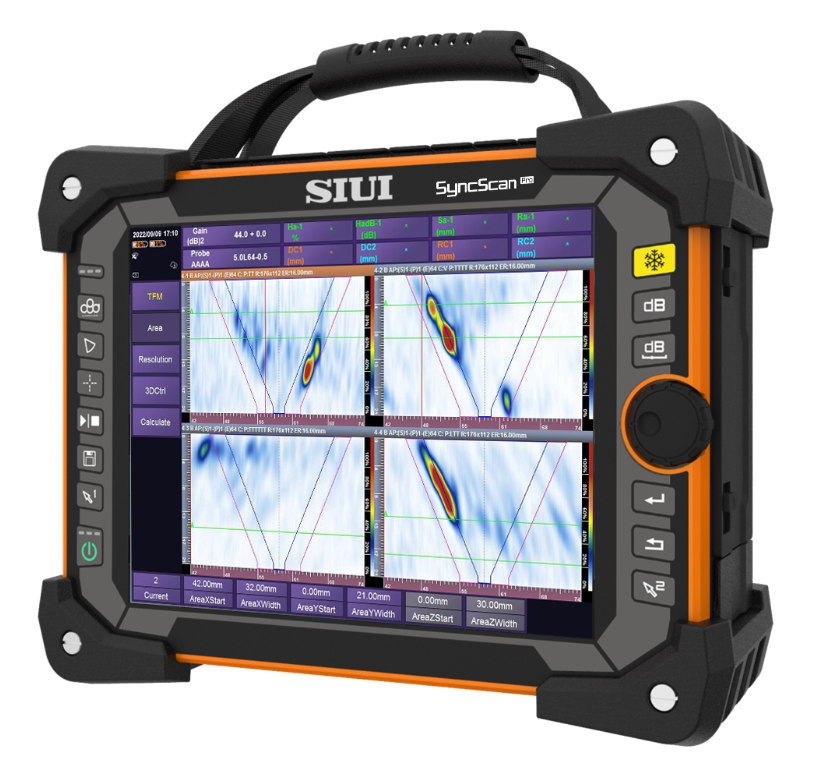

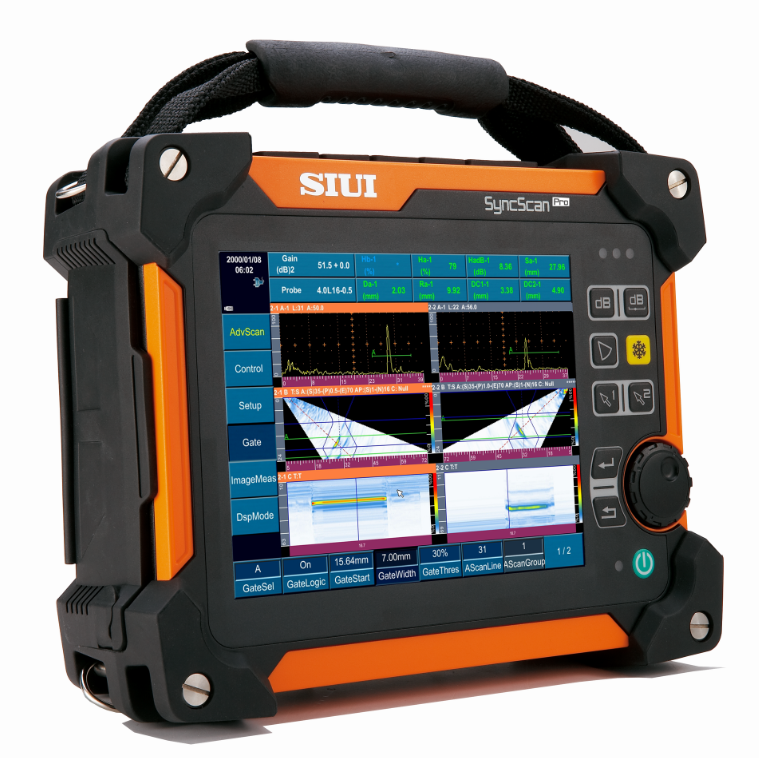

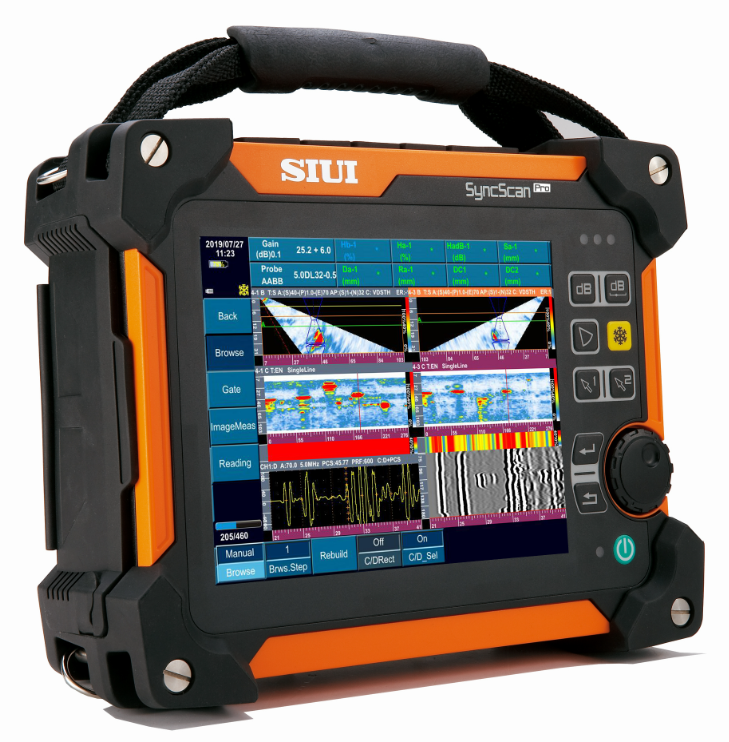

The SIUI SYNCSCAN is an advanced Phased Array Ultrasonic Testing (PAUT) system designed for comprehensive non-destructive testing (NDT) applications. It offers a combination of Phased Array (PA), Conventional Ultrasonic Testing (UT), and Time-of-Flight Diffraction (TOFD), making it an all-in-one solution for professionals in weld inspection, corrosion mapping, flaw detection, and structural integrity assessments.
This unit is pre-owned but fully operational and comes complete with multiple phased array probes, wedges, and dedicated software solutions, making it ready for immediate use in various industrial applications.
Key Features & Capabilities:
Multi-Functional Inspection System – Supports Phased Array (PA), UT, and TOFD (1 Channel) for a wide range of inspections.
High-Resolution Imaging – 16:64 PA channels provide detailed, real-time imaging for precise defect detection.
Simultaneous PAUT & TOFD Display – Enables concurrent PA and TOFD scans, enhancing defect evaluation.
Portable & Durable – Lightweight and rugged design for field and laboratory use.
User-Friendly Interface – Touchscreen operation with customizable software solutions.
High-Speed Data Processing – Real-time scanning and analysis, improving efficiency.
Comprehensive Software Package – Includes specialized applications for different testing needs.
Versatile Applications – Suitable for oil & gas, aerospace, power generation, shipbuilding, and manufacturing industries.
Included Accessories – Probes & Wedges
This package includes a complete set of SIUI-certified phased array probes and wedges for various inspection applications.
? Phased Array Wedges:
32N00L-20 – 20mm Delay Block Wedge (SIUI)
10N55S – 0-70° Shear Wave Angle Block Wedge (SIUI)
10N00L-20 – 20mm Delay Block Wedge (SIUI)
20N55S – 0-70° Shear Wave Angle Block Wedge (SIUI)
20N00L-20 – 20mm Delay Block Wedge (SIUI)
? Phased Array Probes:
5.0L16-0.6-10 – 5 MHz, 16 Elements (SIUI)
5.0L32-0.6-10 – 5 MHz, 32 Elements (SIUI)
? Additional Accessories:
Manual Mini Phased Array Crawler PES-02 – Suitable for phased array single probe (with wedge) (SIUI)
Included Software Solutions
This system is equipped with a full suite of SIUI's proprietary software solutions to optimize various testing applications:
TOFD (1 Channel) – High-accuracy Time-of-Flight Diffraction (TOFD) for flaw detection and sizing.
PA Corrosion Solution – Enables high-resolution corrosion mapping.
PA Flat Weld Solution – Provides detailed flat weld analysis.
PA Angle Weld Solution – Optimized for angled weld inspections.
Small Pipe Girth Weld Solution – Specialized for circumferential weld inspection on small-diameter pipes.
PA Groups & Simultaneous PAUT/TOFD Display – Allows multiple PA groups and simultaneous PA and TOFD analysis.
PA Probe Element Testing – Ensures probe integrity and element performance.
PA Flat Weld Groove Analysis – Enhances defect detection in flat weld grooves.
PA C-Scan In-Depth – Provides detailed cross-sectional imaging and analysis.
Applications
The SIUI SYNCSCAN PAUT system is ideal for a variety of non-destructive testing applications, including but not limited to:
Weld Inspection – Detects cracks, lack of fusion, porosity, and other weld defects.
Corrosion Mapping – Identifies and quantifies material loss in pipelines, tanks, and structures.
Aerospace & Power Generation – Suitable for aircraft components, turbines, and power plant inspections.
Pipeline & Pressure Vessel Inspection – Evaluates seam welds, girth welds, and pipe integrity in the oil, gas, and chemical industries.
Shipbuilding & Structural Testing – Ensures the integrity of marine and offshore structures.
Manufacturing & Quality Control – Used for process control, defect detection, and part validation.
