The Pit Gage Classic is a manual system used to measure surface variations. Its accuracy, ease of use and modular design make it an essential tool for manual pit inspection. Available in kits of 2, 4 or 6 extensions arms, each kit also includes a blindside base for limited access measurement.
Kit Contents
Standard Kit Contents
0 – 12.7 mm (0 – 0.5 in) digital indicator
7.6 cm (3 in) centre base
Blind side base
15.2 cm (6 in) extension arms
Indicator tips
User manual
Rugged plastic carrying case

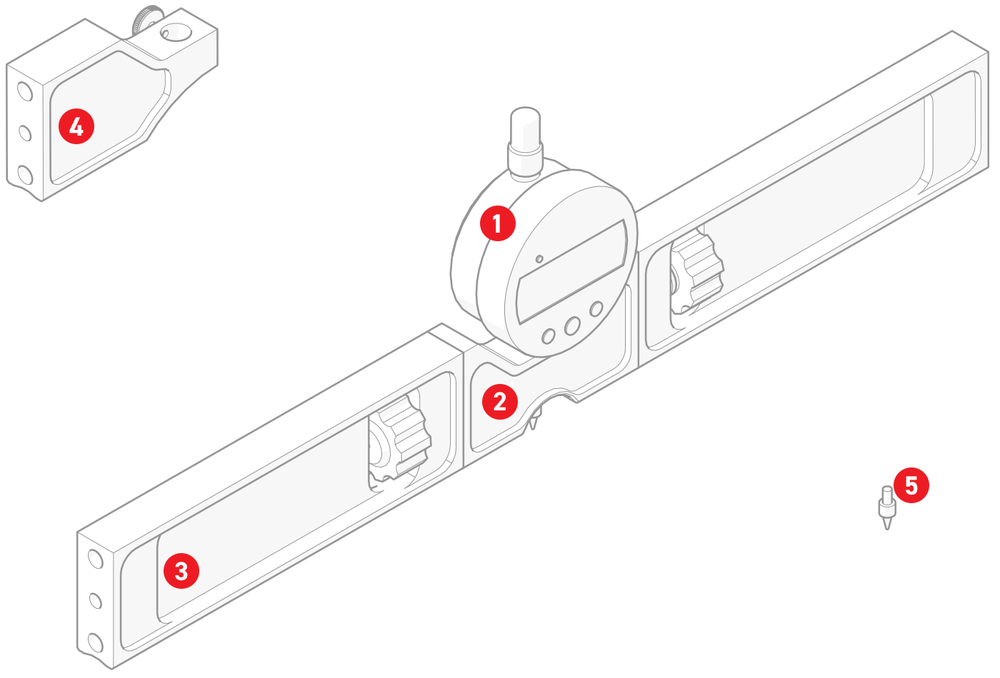

Component Identification
1 Digital Indicator
The easy readability of the digital indicator ensures accurate readings.
2 Centre Base
The centre base can be used alone or in part with multiple extension arms.
3 Extension Arms
The extension arms may be used in any configuration. A small radius on the bottom surface assists with measuring small diameter pipes.
4 Blind Side Base
Used to measure when close to a weld or flange.
5 Indicator Tip
A spare indicator tip is included in the kit.
General
Digital Indicator, Range: 0 – 12.7 mm (0 – 0.5 in)
Digital Indicator, Resolution: 0.01 mm (0.0005 in.)
Digitla Indicator, Stem Diameter: 9.52 mm (.375 in)
Battery Requirements: SR44 x1 (included)
Size and Weight
A: 7.6 cm (3 in)
B: 15.2 cm (6 in)
C: 38.1 cm (15 in)
D: 68.6 cm (27 in)
E: 99.1 cm (39 in)
Shipping weight (2 arm kit): 1.2 kg (2.7 lb)
Shipping weight (4 arm kit): 1.4 kg (3.1 lb)
Shipping weight (6 arm kit): 1.6 kg (3.5 lb)
INDICATOR TIP
Diameter: 0.914 mm (0.036 in)
Environmental Specifications
Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)
