The STIX – 4 Probe Long Seam Scanner is an innovative solution for longitudinal weld tracking. This 4 probe magnetic scanner, built around a versatile pivoting frame bar, allows manual axial scanning down to 15.2 cm (6 in).
Axial Scanning
A dual pivot frame bar accommodates two probe longitudinal scans. Perform manual scans on pipes as small as 15.24 cm (6 in).
Circumferential Scanning
Conversion between circumferential and longitudinal capabilities is quick and simple. Scan circumferentially on pipes and tubes as small as 25.4 cm (10 in). Scan circumferentially as small as 10.2 cm (4 in) using slip-joint probe holders (sold separately).
Ease of use
Comfortable handles provide excellent scanner control as well as mounting points for accessories
Spring-Loaded Encoder
The spring-loaded encoder maintains constant surface contact to ensure accurate scanner positioning at all times.
Phased Array and TOFD Probe Holders
Numerous setup variations and finely tuned adjustment options are the hallmarks of the vertical probe holders.
Brakes
Hold the scanner position when required.
Magnetic Wheels
Translate probes across magnetic material with this manual scanner.
Kit Contents
GENERAL
STIX long seam frame with 8 magnetic wheels
SCANNER
Spring-loaded encoder
Vertical phased array probe holder x2
Vertical TOFD probe holder x2
Probe holder arm set – long, drop arm x2
4 mm ID irrigation kit (7/16 in Quick Connect)
Probe holder spare parts kit
User manual
Rugged carrying case
TOOLS
3 mm hex driver
Wrench for pivot button adjustment

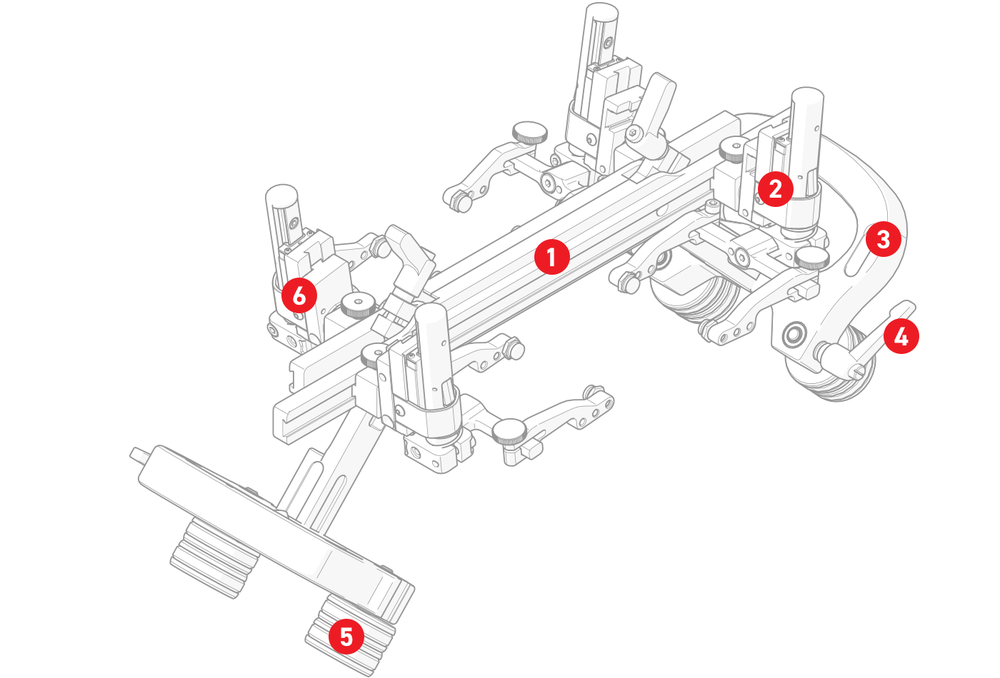

Component Identification
Long Seam Frame
The dual pivot frame bar accommodates longitudinal scanning applications. The synchronized dual pivot frame bar ensures precise scanner setup while full control is provided with the convenient handles.
Phased Array Probe Holders
Countless setup variations and adjustment options are the hallmarks of the vertical probe holder.
Handles
Ergonomic handles provide comfortable scanner control while also providing mounting points for accessories.
Brakes
Brakes are provided to lock the scanner in a required position.
Wheels
The magnetic wheels are coated with urethane to reduce the effects of foreign debris obstructing the scanner motion. Two sets of 4 magnetic wheels are included with the system to provide optimal magnetic attraction during scanning operations.
TOFD Probe Holders
Fine tune probe and wedge setup with these probe holders that also offer transverse scanning.
GENERAL
Pipe Range, Circumferential: 25.4 cm (10 in) to flat1
Pipe Range, Longitudinal: 15.2 cm (6 in) to flat
Encoder Resolution: 9.05 counts/mm (230.0 counts/inch)
Probe Holding Capacity: 2 phased array wedges
Encoder Cable Length: 5 m (16.4 ft)2
Inspection Surface: Ferrous materials
RADIAL CLEARANCE
Long Seam Clearance: 14 cm (5.5 in)
Circumferential Clearance: 8.9 cm (3.5 in)
SIZE & WEIGHT
Frame Height: 10.5 cm (4.1 in)
Frame Height (Pivot): 19 cm (4.5 in)
Frame Width: 45.4 cm (17.9 in)
Frame Depth: 17.5 cm (6.9 in)
Frame Width (Pivot): 35 cm (13.8 in)
Frame Weight: 1.9 kg (4.25 lb)
ENVIRONMENTAL SPECIFICATIONS
Operating Environment:-20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Watertight (submersible), Contact JIREH for details
PHASED ARRAY PROBE HOLDER SPECIFICATIONS
Minimum Wedge Width: 17.1 mm (0.7 in)
Maximum Wedge Width: 57.6 mm (2.3 in)3
TOFD PROBE HOLDER SPECIFICATIONS
Minimum Wedge Width: 17.1 mm (0.7 in)
Maximum Wedge Width: 45 mm (1.8 in)3
Probe Holder Pivot Buttons
01
Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)
02
Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)
03
Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)
04
Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)
06
Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)
07
Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)
08
Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)
09
Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)
11
Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)
- Capable of 10.2 cm (4 in) – 25.4 cm (10 in) using slip-joint probe holders.
- Custom encoder cable lengths are available.
- Some arms styles may provide additional maximum wedge width. Contact Jireh Industries for details.
Technical specifications subject to change.
