NM01HS5122i_RH(v1)
ULTRASONIC TRANSDUCER (DUAL): HS5122i, 5MHz, 12mm tip diameter & 18 mm diameter dual element transducer, with microdot connectors and including red handle, for on-stream UT thickness gauging & corrosion mapping of thicker components or of coarse grain structures. High wear resistance, with surface temperature range from -55 to +550 °C (-67 to +1022 °F), with continuous operation without cooling up to 350 °C (662 °F), IONIX SKU: HS5122i_RH (v1)
Choose Quantity
Ionix — HS5122i Dual Element Ultrasonic Transducer with Red Handle
High-Temperature UT Probe for On-Stream Thickness Gauging & Corrosion Mapping SKU: HS5122i_RH (v1)Overview
The Ionix HS5122i Dual Element Ultrasonic Transducer is a high-performance probe designed for on-stream ultrasonic thickness gauging and corrosion mapping in demanding industrial environments. Operating at 5 MHz with a 12 mm tip diameter and 18 mm dual element transducer body, this probe provides reliable resolution and signal performance for thickness measurement and corrosion inspection applications.
Engineered for high-temperature inspection, the HS5122i supports surface temperature operation from -55 °C to +550 °C (-67 °F to +1022 °F), with continuous operation without cooling up to 350 °C (662 °F). This makes it ideal for in-service inspection where shutdown or cooling may not be practical.
Featuring dual element construction, microdot connectors, high wear resistance, and an included red handle, this transducer is built for reliable field performance, repeatable measurements, and efficient inspection workflows in petrochemical, power generation, refinery, and heavy industrial applications.
What's Included
| Item | Details |
|---|---|
| UT Transducer | HS5122i dual element transducer, 5 MHz, 12 mm tip diameter |
| Transducer Diameter | 18 mm dual element body |
| Connectors | Microdot connectors |
| Handle | Red handle included |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 10.0 in |
| Width | 6.0 in |
| Height | 4.0 in |
| Dimensions (L × W × H) | 10.0 × 6.0 × 4.0 in |
| Weight | 1.5 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Probe Type | Dual element ultrasonic transducer |
| Model | HS5122i |
| Frequency | 5 MHz |
| Tip Diameter | 12 mm |
| Transducer Diameter | 18 mm dual element |
| Connector Type | Microdot |
| Handle | Red handle included |
| Surface Temperature Range | -55 to +550 °C (-67 to +1022 °F) |
| Continuous Operation | Up to 350 °C (662 °F) without cooling |
| Application | On-stream thickness gauging & corrosion mapping |
| Manufacturer | Ionix |
| SKU | HS5122i_RH (v1) |
Performance Features
High-Temperature Inspection Capability
Operates on surfaces from -55 °C to +550 °C, with continuous use up to 350 °C without cooling.
5 MHz Inspection Frequency
Provides strong resolution for ultrasonic thickness gauging and corrosion mapping applications.
Dual Element Design
Supports reliable thickness measurement and corrosion inspection with improved near-surface performance.
High Wear Resistance
Built for repeated use in demanding industrial inspection environments.
User-Friendly Design

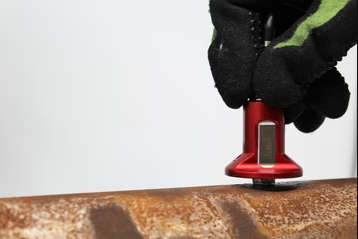

- Red handle included for improved handling and control
- Microdot connectors for secure signal connection
- Suitable for on-stream inspections without shutdown
- Compact 12 mm tip for practical probe placement
- Designed for efficient high-temperature UT workflows
Built for Industrial Environments
- Rugged construction for refinery and plant inspection work
- Reliable performance in high-temperature applications
- Suitable for corrosion monitoring and asset integrity programs
- Designed for professional NDT field use
Compatibility
Compatible with:
- Ultrasonic thickness gauges
- Corrosion mapping systems
- Dual element UT cable setups with microdot connections
- High-temperature ultrasonic couplants
- On-stream inspection workflows
Ideal Applications

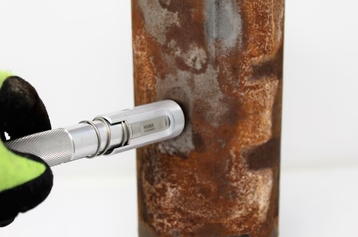

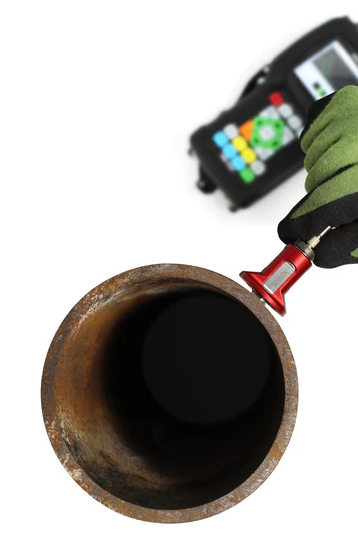

- On-stream ultrasonic thickness gauging
- High-temperature corrosion mapping
- Inspection of process piping and equipment
- Refinery and petrochemical inspection
- Power generation maintenance
- Pressure vessel, pipe, and process equipment inspection
- Industrial asset integrity programs
About Ionix
Ionix is a trusted manufacturer of ultrasonic transducers and accessories designed for demanding inspection environments, including high-temperature NDT applications. Their products support reliable performance, durability, and practical field use in professional ultrasonic testing workflows.
