NM01CAT10

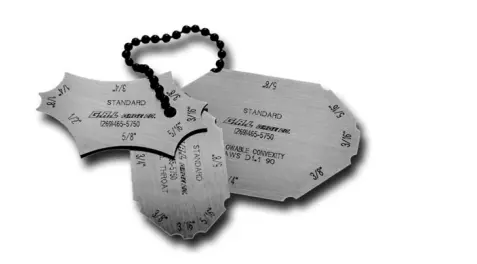

The Pocket Fillet Weld Gauge CAT-10 is an indispensable tool for welders and inspectors who demand quick, accurate, and convenient measurement of fillet welds. This compact gauge is designed to be easily carried in your pocket or attached to your keychain, ensuring it's always within reach when you need it most.
Despite its small size, the CAT-10 is incredibly versatile, allowing you to inspect eight common fillet weld sizes. More than just a size check, this gauge enables a comprehensive assessment of weld quality by verifying leg length, throat size, and allowable convexity. This ensures welds meet crucial specifications for structural integrity and appearance.
Built to last, the CAT-10 features permanently engraved increments, available in both inches and metric scales, guaranteeing clear and durable measurement markings that won't wear away with use. Its robust construction, typically from anodized aluminum, ensures it can withstand the rigors of demanding work environments. The integrated handy keychain attachment further enhances its practicality, keeping it secure and preventing loss on the job site.
Key Selling Points:
Ultimate Portability: Pocket-sized with a convenient keychain attachment for instant access.
Versatile Measurement: Checks eight common fillet weld sizes for leg length, throat, and convexity.
Long-Lasting Accuracy: Permanently engraved increments ensure clear and reliable measurements.
Durable Construction: Made from robust materials for extended use in tough environments.
Cost-Effective Quality Control: An affordable tool for ensuring weld compliance and structural integrity.
Benefits:
Maximize Efficiency: Quickly verify weld dimensions, saving time during inspection and quality control.
Ensure Weld Accuracy: Obtain precise measurements to meet critical specifications.
Unmatched Convenience: Always have a reliable weld gauge readily available.
Dependable Performance: Durable construction and permanent markings ensure long-term usability.
Affordable Quality Assurance: An economical solution for maintaining high welding standards.
Applications:
Rapid welding inspection in fabrication shops and on construction sites.
Efficient quality control of fillet welds across various industries.
Convenient pre-weld fit-up checks.
Ideal for training and educational purposes for welding professionals.
