NM01ND2000C
Choose Quantity

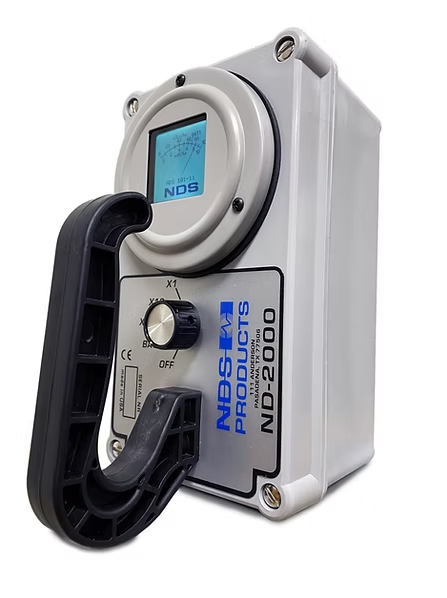

NDS Products — ND-2000C High-Range Gamma/X-Ray Survey Meter with Built-In Dosimeter Charger
3-Range Gamma/X-Ray Survey Meter, 0–1,000 mR/hr / 0–10,000 µSv/hr, with Integrated Dosimeter Charger
SKU: ND2000C
Overview
The NDS Products ND-2000C is a rugged, three-range Gamma and X-Ray survey meter designed for industrial radiography, non-destructive testing, radiation safety, and field radiation-monitoring applications.
The instrument provides three selectable measurement ranges up to 1,000 mR/hr (10,000 µSv/hr) and supports readings in both mR/hr and µSv/hr.
What distinguishes the ND-2000C from the standard ND-2000 is its built-in dosimeter charger, allowing technicians to charge compatible direct-reading pocket dosimeters without carrying a separate charging unit. This makes it particularly convenient for industrial radiography crews and radiation-safety personnel working in the field.
The ND-2000C combines an energy-compensated Geiger-Mueller detector, LCD display, rugged reinforced enclosure, long battery operating life, and integrated dosimeter charging capability in one portable instrument.
What's Included
| Item | Details |
|---|---|
| Survey Meter | NDS Products ND-2000C |
| Measurement Ranges | Three |
| Maximum Range | 1,000 mR/hr / 10,000 µSv/hr |
| Display Units | mR/hr and µSv/hr |
| Radiation Type | Gamma and X-Ray |
| Detector | Energy-compensated Geiger-Mueller tube |
| Display | LCD |
| Dosimeter Charger | Built-in |
| Audio | Not included on ND-2000C |
| Power Supply | 2 × D-cell batteries |
| Meter Tether Clip | Included |
| Manufacturer | NDS Products |
| SKU | ND2000C |
Key Features
Three selectable radiation measurement ranges
Maximum range of 1,000 mR/hr
SI measurement capability up to 10,000 µSv/hr
Measurement display available in mR/hr and µSv/hr
Built-in dosimeter charger
Designed for charging compatible direct-reading pocket dosimeters
Energy-compensated Geiger-Mueller detector
Gamma and X-Ray radiation monitoring
Digital LCD display
Individual calibration adjustment for each measurement range
Rugged nylon-reinforced enclosure
Integrated carrying handle
More than 200 hours of continuous operation with alkaline batteries under specified conditions
Regulated high- and low-voltage circuitry
Wide operating-temperature range
Portable design for field radiography and radiation surveys
Specifications
| Parameter | Details |
|---|---|
| Product Type | High-range Gamma/X-Ray survey meter |
| Model | ND-2000C |
| Measurement Ranges | 3 |
| Low Range | 0–10 mR/hr / 0–100 µSv/hr |
| Medium Range | 0–100 mR/hr / 0–1,000 µSv/hr |
| High Range | 0–1,000 mR/hr / 0–10,000 µSv/hr |
| Radiation Detected | Gamma and X-Ray |
| Energy Response | 80–2,000 keV |
| Detector Type | Halogen-quenched, energy-compensated GM tube |
| Detector Effective Size | 0.625 × 0.194 in |
| Detector Wall Thickness | 90 mg/cm² |
| Display | LCD |
| Display Units | mR/hr and µSv/hr |
| Dosimeter Charger | Built-in |
| Audio | No |
| Calibration | Individual calibration potentiometers for each range |
| Power Supply | 2 × D-cell batteries |
| Battery Life | More than 200 hours with alkaline batteries under specified conditions |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Humidity | Up to 95% non-condensing |
| Manufacturer | NDS Products |
| SKU | ND2000C |
Measurement Ranges
| Range | mR/hr | µSv/hr |
|---|---|---|
| Low | 0–10 | 0–100 |
| Medium | 0–100 | 0–1,000 |
| High | 0–1,000 | 0–10,000 |
The three-range configuration allows the ND-2000C to cover a broad range of radiation-survey requirements encountered during industrial radiography and radiation-safety operations.
Built-In Dosimeter Charger
A major advantage of the ND-2000C is its integrated dosimeter charging capability.
The built-in charger allows compatible direct-reading pocket dosimeters to be charged directly from the survey meter, reducing the need to carry a separate dosimeter charger to the inspection site.
This combination is especially practical for radiography crews that routinely use both survey meters and personal direct-reading dosimeters as part of their radiation-safety program.
Radiation Detection System
The ND-2000C uses a halogen-quenched, energy-compensated Geiger-Mueller tube for Gamma and X-Ray radiation monitoring.
Its specified energy response covers 80 to 2,000 keV, making the instrument suitable for many industrial radiography and radiation-survey applications.
Each measurement range has an individual calibration adjustment to support proper instrument calibration and verification.
Rugged Field Design
The ND-2000C is designed for demanding industrial and field environments.
Its two-piece nylon-reinforced enclosure and integ
