NM01XXG2505

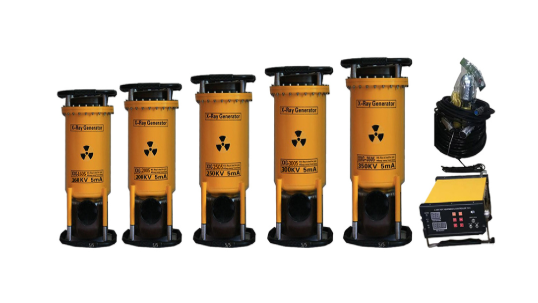

High-Performance Industrial X-RAY Flaw Detector - Model XXG-2505

The XXG-2505 Industrial X-RAY Flaw Detector is a powerful and reliable Non-Destructive Testing (NDT) instrument designed for comprehensive radiographic inspections in demanding industrial environments. This unit, featuring a robust directional ceramic X-ray tube and a high-tension (HT) system, provides exceptional penetration and precise imaging capabilities, making it ideal for critical quality control and integrity assessment in industries such as oil & gas, shipbuilding, metallurgy, pressure vessel manufacturing, and aerospace.

Key Features & Benefits:

• High Voltage Output (150-250 kV): Offers a continuously adjustable voltage range, allowing for optimal penetration of various materials, from thin welds to thick steel sections (up to 40mm).

• Superior Penetration (40mm A3 Steel): Capable of effectively inspecting A3 steel up to 40mm in thickness (at a 600mm focal distance and 5-minute exposure), revealing internal discontinuities with high clarity.

• Precise 2.0x2.0mm Focal Spot: Delivers excellent radiographic image resolution, enabling the detection of subtle flaws such as cracks, porosity, inclusions, and lack of fusion.

• Directional Ceramic X-Ray Tube:

  • Enhanced Durability: The ceramic envelope provides superior mechanical strength, thermal stability, and shock resistance compared to traditional glass tubes, ensuring reliability in harsh field conditions.

  • Consistent Performance: Offers stable X-ray output over extended operational periods.

  • Focused Beam: Features a precise directional beam angle of 40∘±5∘, allowing for targeted radiography of specific inspection areas.




• SF6 Gas Insulation & Forced Air Cooling: The X-ray generator is insulated with SF6 gas for superior dielectric strength and features forced air cooling for efficient heat dissipation, enabling a 1:1 work-to-rest ratio (e.g., 5 minutes work, 5 minutes rest) for high duty cycle operation.




• Robust & Portable Design: Typically configured as a two-piece system (generator and control unit) for easier transport and setup in the field. Built with a rugged construction to withstand industrial environments.

• Advanced Safety Features: Equipped with comprehensive protection systems including over-voltage, under-voltage, over-current, under-current, and over-temperature protection. Includes safety interlocks, delayed high voltage activation, and audible/visual alarms to ensure operator safety.




• User-Friendly Control Unit: The separate control unit often features a microcomputer-controlled system, allowing for precise adjustment of exposure parameters, fault diagnosis, and stable operation.

Specifications (Model: XXG-2505):

• Manufacturer: Typically Dandong Aolong Radiative Instrument Group Co., Ltd., Mitech, Huatec, or similar.




• SKU: XXG-2505

• Type: Directional Industrial X-Ray Flaw Detector

• X-Ray Tube Type: Ceramic Tube

• Output Voltage: 150-250 kV (Adjustable)

• Output Current: Typically 5.0 mA

• Max. Penetration (A3 Steel): 40 mm (at 250kV, 600mm FFD, 5 min exposure)




• Focal Spot Size: 2.0 x 2.0 mm

• Beam Angle: 40∘±5∘

• Input Power Capacity: Typically 2.5 kVA

• Power Input: AC 220V ±10%, 50/60 Hz (single phase)




• Insulation Method (Generator): SF6 gas




• Cooling Method (Tube): Forced Air Cooling

• Duty Cycle: 1:1 (e.g., 5 min work, 5 min rest)

• Operating Temperature: −10∘C to +40∘C (14∘F to 104∘F)

• Relative Humidity: ≤85%

• Generator Weight: Approx. 30.5 kg (67.2 lbs)

• Generator Dimensions: Approx. 320×320×640mm (12.6 x 12.6 x 25.2 inches)

• Controller Weight: Approx. 8.5 - 11 kg (18.7 - 24.3 lbs)

• Controller Dimensions: Approx. 315×240×160mm (12.4 x 9.4 x 6.3 inches)

• Standard Accessories (Typically included): X-ray generator, Control unit, Connecting cables (low and high voltage), Power cable, Grounding cable, Accessories bag (fuses, alarm lamp, manual).

• Certifications: Often CE, ISO certified.
