NM01TG110PKG506

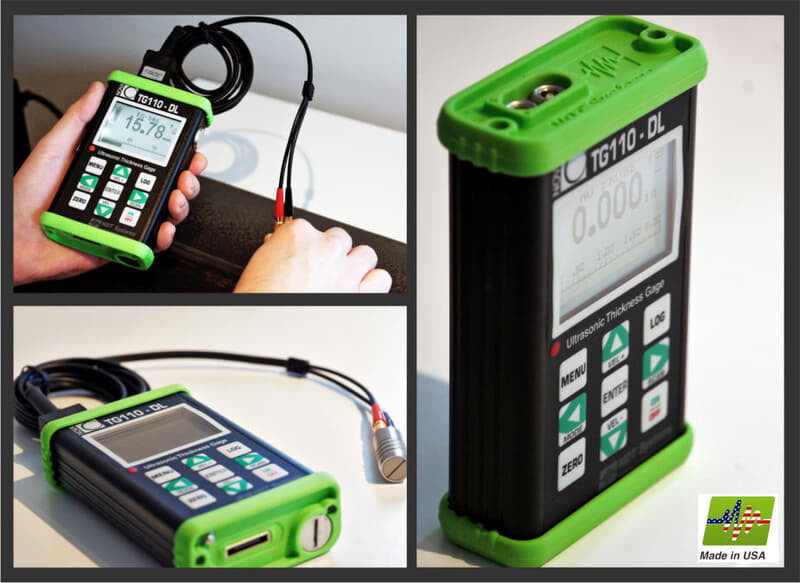

The Nova TG110-DL Ultrasonic Thickness Gauge is a state-of-the-art digital thickness gauge designed for precision measurement across a wide range of applications, including corrosion testing, pitting, pressure vessels, pipes, and more. Its robust feature set includes Auto Probe Recognition, Time-encoded B-scan, and 50,000-point data logging. This high-performance gauge is compatible with 10 probe types and provides versatile data management and connectivity options, such as USB data transfer, dual-point calibration, and alarm modes. The Nova TG110-DL offers unparalleled value, housing advanced capabilities typically found only in high-end devices, making it ideal for industries such as oil and gas, shipbuilding, power plants, automotive, and manufacturing.

Standard Kit Features:

• Dual Element Probes: Compatible with double-element probes only.
• Data Logging: 50,000-point capacity with spreadsheet-style view for data organization.
• High/Low Alarms: Customizable alarms for limits, ideal for quick quality control.
• Adjustable Velocity: Allows calibration across diverse materials, including metals, plastics, ceramics, and glass.
• Scrolling B-Scan: Displays thickness trends with an analog-style scan bar for easy monitoring.
• Echo-to-Echo Mode: (Optional) Measures through paint layers to provide true material thickness.
• Multiple Probe Compatibility: Recognizes and adjusts for 10 different probe types.
• Differential Measurement Mode: Measures deviation from a set reference thickness.
• Min/Max Capture Mode: Automatically records minimum and maximum thickness readings.

Technical Specifications:

• Display: 128 x 64 pixels (1.96” x 1.25”) with an easy-to-read digital interface and an analog-style scan bar.
• Material Compatibility: Measures materials that conduct ultrasound, including metals, plastics, and ceramics.
• Design: All-aluminum enclosure with textured surfaces to improve grip, even when using couplants.
• Power Supply: Alkaline AA cells, included.
• Data Output: USB connectivity for easy data management and reporting.

Included in the TG110-DL Kit:

1. TG110-DL Ultrasonic Thickness Gauge
2. TG506 Ultrasonic Transducer
3. LMD-1 Probe Cable
4. Data Transfer Kit with USB Cable and Software
5. UltraGel II Ultrasonic Couplant
6. Wrist Strap
7. Operating Manual
8. Certificate of Conformity
9. Pelican-style Hard Carry Case

TG110-DL-TP (Through-Paint Model):

• Includes the TG560P Ultrasonic Through Paint Transducer.
• Through Paint software to measure material thickness minus the paint layer, ideal for precise corrosion and wear measurement.

Applications: Commonly used in pipelines, pressure vessels, tanks, ship hulls, automotive parts, and more. Capable of measuring materials in rugged field sites like refineries, power plants, and construction sites.
