NM01X0000002

The DAKOTA NDT 4-Step Calibration Block is an essential tool for accurately calibrating ultrasonic testing (UT) equipment, specifically thickness gauges and flaw detectors. Manufactured from high-strength 4340 steel, this block provides a reliable reference standard due to the material's consistent acoustic properties.

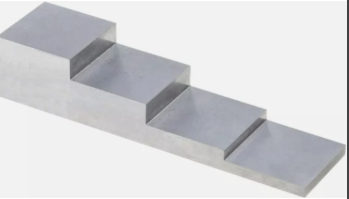

This calibration block features four precisely machined steps of varying thicknesses. A common configuration includes steps at 0.250", 0.500", 0.750", and 1.000 inches, but other specific thickness ranges may be available. These known thicknesses allow technicians to accurately set up and verify the linearity and accuracy of their ultrasonic instruments. By obtaining consistent readings on each step, users can ensure their equipment is providing reliable thickness measurements and flaw detection capabilities.

The 4340 steel construction offers excellent consistency in sound velocity, a critical factor for accurate ultrasonic calibration. Dakota NDT manufactures these blocks to tight tolerances, typically within ±1% of the nominal thickness, ensuring the reliability of the calibration standard.

This 4-step calibration block is a fundamental tool for anyone performing ultrasonic testing, ensuring accurate and repeatable measurements. It is suitable for calibrating a wide range of ultrasonic testing equipment used across various industries.

Key Selling Points:

• 4 Precisely Machined Steps: Provides accurate reference points for ultrasonic calibration.

• High-Quality 4340 Steel: Ensures consistent acoustic properties for reliable calibration.

• Ideal for Thickness and Linearity Checks: Essential for setting up and verifying ultrasonic thickness gauges and flaw detectors.

• Manufactured to Tight Tolerances: Typically ±1% of the nominal thickness for high accuracy.

• Versatile Application: Suitable for a wide range of ultrasonic testing equipment.

• Meets Industry Standards: Often compliant with standards such as ASTM E797.

• Optional Calibration Certificate: May be available with a certificate traceable to national standards (e.g., NIST) for assured accuracy.

Benefits:

• Ensures Accurate Ultrasonic Measurements: Proper calibration leads to reliable thickness readings and flaw detection.

• Improves Inspection Reliability: Verifying instrument linearity across multiple thicknesses increases confidence in results.

• Easy to Use: Simple and straightforward method for calibrating UT equipment.

• Durable Construction: 4340 steel provides a robust and long-lasting calibration standard.

• Supports Quality Control: Essential for maintaining the accuracy of ultrasonic testing processes.

Applications:

This 4-Step Calibration Block made from 4340 steel is crucial for calibrating ultrasonic testing equipment used in various industries, including:

• Manufacturing

• Aerospace

• Oil and Gas

• Infrastructure

• Automotive

• Power Generation

• And many other sectors utilizing ultrasonic testing.

The DAKOTA NDT 4340 Steel 4-Step Calibration Block is a fundamental tool for ensuring the accuracy and reliability of your ultrasonic testing equipment, providing the necessary reference standards for precise measurements and flaw detection.
