NDT Systems TG-110 Ultrasonic Thickness Gauge Package with TG-505 Probe
SKU: TG-110 PKG 505
A complete thickness gauge kit: the TG-110 data logging gauge with the TG-505 5 MHz medium-tip probe, automatic probe recognition, a 50,000-reading data logger, time-encoded B-scan and up to 150 hours of battery life.
| 5 MHzTG-505 probe included | 50,000Reading data logger | 0.001"Resolution | 150 hOn 2 AA batteries |

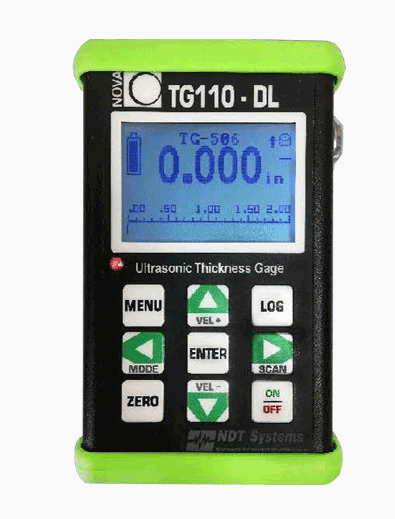

The NDT Systems TG-110 package pairs the TG-110 (Nova TG110-DL) ultrasonic thickness gauge with the TG-505, a 5 MHz dual-element probe with a 0.30" medium tip and attached cable. It measures metals, plastics, ceramics, glass and virtually any other material that conducts ultrasound, making it a dependable everyday tool for corrosion surveys and wall thickness checks.
The gauge comes fully loaded as standard, with automatic probe recognition, adjustable velocity, single and two-point calibration, high and low alarms, a time-encoded B-scan and a 50,000-point data logger. Supplied with couplant, batteries, a carrying case, Certificate of Conformance and operating manual, the kit is ready for field work straight out of the box.
Key Features
TG-505 medium-tip probe included
The 5 MHz dual-element TG-505 has a compact 0.30" tip and an attached cable, so it couples easily on curved surfaces and in tighter spots, with no separate probe cable to manage.
Automatic probe recognition
The patented auto probe recognition system identifies the TG-505, or any of the 10 compatible NDT Systems transducers, and sets it up automatically. Probes can also be selected from the built-in library.
50,000-point data logger
Log readings in 1- or 2-dimensional grids with 30-character file names, and review them in a spreadsheet-style GridView. Windows software transfers setups and data over USB.
Time-encoded B-scan and scan bar
The scrolling B-scan builds a cross-section profile as you move the probe, and an analog-style scan bar under the large 1/2" digits shows thickness trends at a glance, especially in high-speed scan mode.
Flexible measurement and alarm modes
Choose normal, differential or minimum-hold modes, and set high, low or combined thickness alarms with a visual LED. A coupling indicator confirms good probe contact.
Full calibration control
Fully adjustable velocity, single and two-point calibration, and auto zero ensure accurate results on any material. A velocity measurement mode calculates material velocity from a known thickness.
Grip-friendly, rugged and long-lasting
The custom all-aluminum enclosure with gasketed ends is shaped for a secure grip, even when wet with couplant. It weighs just 0.36 kg (0.8 lb), runs up to 150 hours on two AA batteries and works from -10°C to 50°C.
Specifications
| General | |
| Manufacturer | NDT Systems |
|---|---|
| Model | TG-110 (Nova TG110-DL) package with TG-505 probe |
| SKU | TG-110 PKG 505 |
| Instrument type | Ultrasonic thickness gauge with data logger |
| Warranty | 1 year |
| Shipping dimensions (estimated) | 356 × 305 × 152 mm (14.0 × 12.0 × 6.0 in) |
| Shipping weight (estimated) | 2.3 kg (5.0 lb) |
| Included Transducer | |
| Model | TG-505 |
| Type | Dual element, contact; medium tip with cable attached |
| Frequency and diameter | 5 MHz, 0.30" |
| Measurement | |
| Thickness range | 0.022 to 50.000 in (0.559 to 1,270 mm), depending on probe and material |
| Resolution | 0.001 in (0.025 mm) |
| Velocity range | 0.0490 to 0.9999 in/µs (1.24 to 25.40 mm/µs), fully adjustable |
| Calibration | Single and two-point; auto zero; velocity measurement from known thickness |
| Thickness modes | Normal, differential, minimum hold |
| Pulser PRF | 250 Hz |
| Acquisition speed | 4 readings per second; high-speed scan mode |
| Gain | High and low settings |
| Alarms | Visual LED; thickness high, low or both |
| Units | Inches or millimeters |
| Display & Data | |
| Display | Backlit LCD, 128 × 64 pixels, 49 × 32 mm (1.96 × 1.25 in); backlight on, off or auto |
| Views | 1/2" digits with analog scan bar; time-encoded B-scan; GridView |
| Data logger | 50,000 readings, 1- or 2-dimensional; 30-character file IDs |
| Interface | USB, with Windows data transfer software |
| Physical & Power | |
| Dimensions (W × L × D) | 76 × 124 × 32 mm (3.0 × 4.9 × 1.25 in) |
| Weight | 0.36 kg (0.8 lb) |
| Case | All-aluminum body with gasketed rubber end caps |
| Connector | Lemo 01 |
| Power | 2 × AA batteries, up to 150 hours |
| Operating temperature | -10°C to 50°C (14°F to 122°F) |
What's in the Box
- NDT Systems TG-110 ultrasonic thickness gauge with built-in data logger
- TG-505 5 MHz dual-element probe (cable attached)
- Couplant
- AA batteries
- Data transfer software
- Carrying case
- Certificate of Conformance
- Operating manual
Contents can vary by package, so contact us to confirm what ships with your order.
Complete your thickness testing setup
Add a step calibration block for daily checks and extra couplant. For other jobs, add the TG-560P for through-paint measurement, the TG-208 2.25 MHz probe for thick or attenuative materials, or a high-temperature TG-790 probe.
Applications
The TG-110 package measures thickness on metals, plastics, ceramics, glass and other materials that conduct ultrasound.
| ✓ Corrosion and pitting measurement | ✓ Tube and pipe inspection |
| ✓ Tank inspection | ✓ Boilers and pressure vessels |
| ✓ Curved surfaces and tight spots | ✓ Plastics, ceramics and glass |
| ✓ Wall thickness verification | ✓ Maintenance and asset integrity programs |
Downloads
| ⬇ Product Brochure (PDF) |
About NDT Systems
NDT Systems has provided ultrasonic testing solutions to a wide range of industries for over 40 years. Based in Huntington Beach, California, it designs and manufactures thickness gauges, bond testers, portable flaw detectors, scanners and precision transducers.
