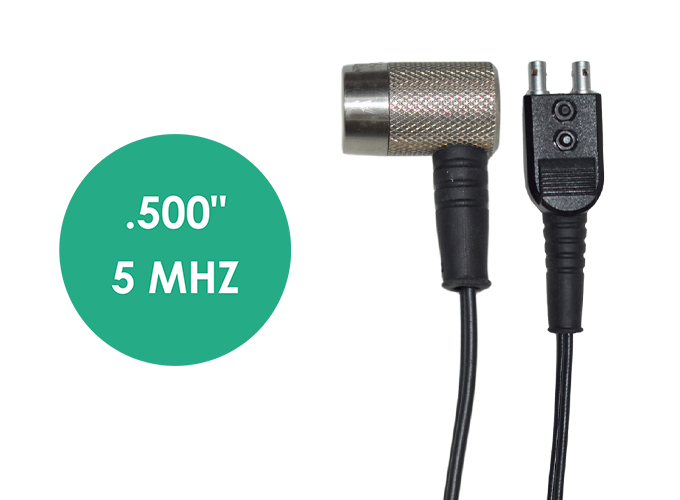

Dakota Ultrasonics — T-104-2000 Dual-Element Transducer
5.0 MHz Ultrasonic Thickness Transducer, 1/2 in Element, Potted Side-Entry ConfigurationSKU: T-104-2000
Overview
The Dakota Ultrasonics T-104-2000 is a 5.0 MHz dual-element ultrasonic transducer designed for corrosion monitoring and general thickness-measurement applications. Its dual-element configuration uses separate transmitting and receiving elements to improve near-surface resolution and support reliable measurements on materials affected by corrosion, erosion, pitting, or surface roughness.
The 1/2 in element size provides a practical balance between acoustic energy, contact area, and access to common industrial components. Its 5.0 MHz frequency supports detailed thickness measurements on suitable metals and other compatible materials while maintaining dependable signal response across typical corrosion-inspection ranges.
The transducer features a potted side-entry configuration that provides a fixed, protected cable transition and directs the cable away from the top of the probe. SKU T-104-2000 is suitable for field, fabrication, maintenance, manufacturing, and QA/QC inspection workflows using compatible Dakota ultrasonic thickness gauges.
What's Included
| Item | Details |
|---|---|
| Ultrasonic Transducer | Dakota T-104-2000 |
| Transducer Type | Dual element |
| Nominal Frequency | 5.0 MHz |
| Element Size | 1/2 in |
| Cable Configuration | Potted |
| Cable Entry | Side |
| Primary Application | Corrosion and thickness measurement |
| Inspection Method | Ultrasonic Testing / UT |
| Manufacturer | Dakota Ultrasonics |
| SKU | T-104-2000 |
Note: Gauge, couplant, calibration block, adapters, and additional cables or accessories are not included unless specified separately.
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 8.0 in |
| Width | 5.0 in |
| Height | 3.0 in |
| Dimensions (L × W × H) | 8.0 × 5.0 × 3.0 in |
| Weight | 1.0 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Dual-element ultrasonic transducer |
| Model | T-104-2000 |
| Nominal Frequency | 5.0 MHz |
| Element Size | 1/2 in |
| Element Configuration | Separate transmit and receive elements |
| Cable Style | Potted / fixed |
| Cable Entry Position | Side |
| Primary Use | Ultrasonic thickness measurement |
| Typical Inspection Mode | Pulse-echo thickness gauging |
| Intended Applications | Corrosion, erosion, and remaining-wall inspection |
| Inspection Method | Ultrasonic Testing / UT |
| Intended Environment | Field, shop, fabrication, maintenance, and QA/QC |
| Manufacturer | Dakota Ultrasonics |
| SKU | T-104-2000 |
Performance Features
5.0 MHz Operating Frequency
Supports detailed thickness measurement and good near-surface response on suitable industrial materials.
Dual-Element Design
Separate transmitting and receiving elements help reduce initial-pulse interference and improve measurement performance on corroded or rough surfaces.
1/2 in Element Size
Provides a practical contact area for inspection of piping, tanks, vessels, plates, and common industrial components.
Potted Cable Configuration
The permanently secured cable transition helps protect the internal connection during routine field and shop use.
Side Cable Entry
Directs the cable away from the top of the probe, supporting convenient handling and access in suitable inspection locations.
Corrosion-Measurement Support
Designed for remaining-wall evaluation where material loss may be caused by corrosion, erosion, or general service wear.
User-Friendly Design
Dual-element configuration supports routine corrosion inspection
Side-entry cable assists with probe positioning
Potted construction eliminates a detachable probe-side connector
1/2 in element provides stable contact on suitable surfaces
Compact design supports portable inspection workflows
Suitable for spot measurements and manual scanning
Easy to integrate with compatible ultrasonic thickness gauges
Practical for field, maintenance, and QA/QC technicians
Built for Industrial Environments
Designed for professional ultrasonic thickness measurement
Suitable for fabrication, manufacturing, maintenance, and asset-integrity programs
Practical for inspection of installed industrial components
Supports repeated corrosion-monitoring measurements
Fixed cable transition helps protect the probe connection
Suitable for piping, tanks, vessels, structures, and machinery
Intended for use with appropriate couplant and calibration procedures
Probe condition and cable integrity should be checked before inspection
Compatibility
Compatible with:
Dakota ultrasonic thickness gauges supporting dual-element probes
Instruments configured for 5.0 MHz transducer operation
Corrosion thickness-gauging modes
Compatible probe cable and instrument connections
Ultrasonic couplants selected for the inspected surface
Known-thickness standards and calibration blocks
Pulse-echo ultrasonic thickness-measurement procedures
Carbon steel, stainless steel, aluminum, and other suitable materials
Field and laboratory corrosion-monitoring programs
Gauge connection, cable length, connector type, material range, and instrument compatibility should be confirmed before ordering.
Ideal Applications
Corrosion thickness measurement
Remaining-wall evaluation
Pipeline inspection
Storage-tank inspection
Pressure-vessel inspection
Boiler-tube inspection
Heat-exchanger inspection
Structural steel measurement
Plate and sheet thickness verification
Erosion monitoring
Fabrication QA/QC
Preventive maintenance programs
Asset-integrity inspection
Field ultrasonic testing
General industrial thickness gauging
About Dakota Ultrasonics
Dakota Ultrasonics develops ultrasonic thickness gauges, flaw detectors, transducers, cables, couplants, and related accessories for professional non-destructive testing. Its products support inspection teams working in corrosion monitoring, manufacturing, fabrication, maintenance, asset integrity, and industrial quality control.
