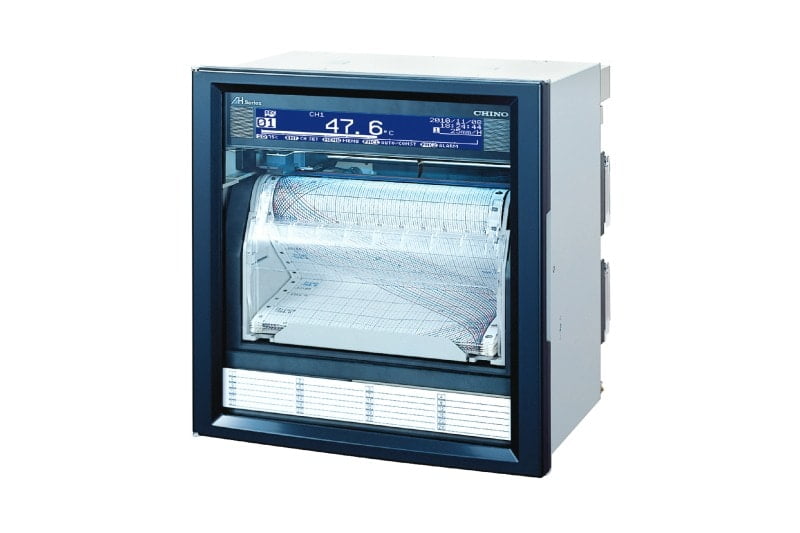

The Chino Recorder, Model AH4000 (Part # 22008) is a compact, versatile hybrid recorder with a clear and bright LCD display, capable of recording and displaying multiple thermocouple inputs and digital readings in both Fahrenheit and Celsius. Designed for industrial and laboratory settings, the AH4000 supports a variety of display options including single-point, multi-point, and combined digital/bar graph displays. Users can easily configure measurement and recording settings via the front key switch, and the digital LCD display confirms settings.
The AH4000’s memory function allows data storage on an SD card (sold separately), while a USB port facilitates direct connection to a PC. This hybrid recorder accepts 58 input types, including 36 thermocouple types, 12 resistance thermometers (RTDs), and various DC voltage ranges. Optional interfaces for RS232C, RS422A, RS485, and Ethernet enable versatile communication and remote monitoring, including email alarms when paired with Ethernet.
Advanced data processing is made possible through Data Acquisition Software, which expands its applications from recording to detailed data analysis and management, including replay display, waveform processing, editing, and trend display. Alarms can be set on four levels per input point, flashing the "ALM" status and measurement values on the display when triggered.
Key Features:
Display: Multi-mode LCD display (single-point, multi-point, digital with bar graph)
Input Capability: 58 types (DC voltage, DC current, thermocouples, RTDs)
Thermocouple Types: Supports K, E, J, T, R, S, B, N, U, L, W-WRe26, WRe5-WRe26, PtRh40-PtRh20, NiMo-Ni, CR-AuFe, Platinel, Au/Pt
Recording Intervals:
Multi-point: 1 sec/6 points, 2 sec/12 points, 2 sec/24 points
Pen Type: ~100 ms
Recording Method: Multi-point wire-dot (6-color ribbon), Pen (felt-tip or dot type plotter)
Connectivity: USB, optional RS232C, RS422A, RS485, Ethernet
Data Storage: SD card slot, data acquisition software
Alarm Functions: 4 alarm types per input, with chart end detection
Applications: Suitable for industrial and laboratory monitoring, process tracking, environmental data logging, and complex data analysis tasks.
The Chino AH4000 is ideal for users requiring high precision, flexibility in input types, and reliable performance in monitoring and recording data across multiple applications.
