ZX-6 Series, Multi-Echo Thickness Gauge. Specifications: ▶ Powered by: 120MHz FPGA timing. ▶ 150 volt square wave pulser. ▶ Pulse-Echo (flaw) & Echo-Echo (thru-paint) measurement modes. ▶ Adjustable gain (40-52dB), in 3dB steps (vlow, low, med, high, vhi). ▶ Time dependent gain (TDG). ▶ Selectable manual or auto zero. ▶ Dual element transducers (1-10MHz options). ▶ Low temperature custom LCD display (-22 F / -30C). ▶ USB-C connectivity. ▶ CDC compatible serial over USB. Optional serial RS232 or bluetooth module (ZX-6). ▶ Data Storage: 32 megabit flash memory (ZX-6 DL). ▶ IP65 protection rating. ▶ 5 year limited warranty. Dakota NDT

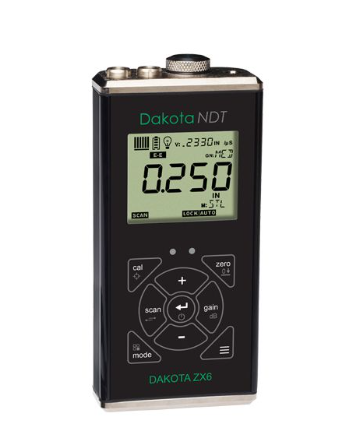

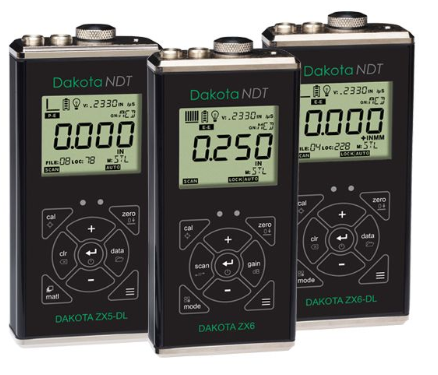

Unleash Precision Thickness Measurement with the Dakota NDT ZX-6 Series
The Dakota NDT ZX-6 Series Multi-Echo Thickness Gauge redefines accuracy and reliability in material thickness measurement. Powered by a high-speed 120MHz FPGA timing system and a robust 150 volt square wave pulser, this gauge delivers exceptional performance for both flaw detection and accurate thickness readings, even through paint and coatings.
Featuring both Pulse-Echo (flaw) and Echo-Echo (thru-paint) measurement modes, the ZX-6 series provides versatility for various inspection needs. The Echo-Echo mode eliminates the need to remove paint or coatings, saving valuable time and resources while ensuring accurate substrate thickness readings. The Pulse-Echo mode allows for standard thickness measurements and basic flaw detection capabilities.
The adjustable gain, ranging from 40 to 52dB in precise 3dB steps (vlow, low, med, high, vhi), allows users to optimize the signal for a wide variety of materials and conditions. The integrated Time Dependent Gain (TDG) further enhances measurement accuracy by compensating for material attenuation over the sound path.
Ease of use is paramount with the selectable manual or auto zero functions, ensuring quick and accurate calibration. The ZX-6 series is designed to work seamlessly with dual element transducers (1-10MHz options), providing flexibility for different material types and thickness ranges.
Built for challenging environments, the ZX-6 features a low temperature custom LCD display that remains clear and readable even at extreme temperatures down to -22°F / -30°C. USB-C connectivity ensures modern and efficient data transfer and potential charging capabilities. The gauge is also CDC compatible for serial over USB, with optional serial RS232 or Bluetooth modules (ZX-6) available for expanded connectivity.
For comprehensive data management, the ZX-6 DL model boasts a substantial 32 megabit flash memory for storing a large number of thickness readings. The rugged IP65 protection rating ensures durability and reliable operation in dusty and wet conditions.
Backed by Dakota NDT's commitment to quality, the ZX-6 Series comes with an impressive 5 year limited warranty, providing peace of mind and long-term value.
Key Features:
High-Speed 120MHz FPGA Timing: Ensures precise and accurate measurements.
Powerful 150 Volt Square Wave Pulser: Delivers strong signals for reliable readings.
Pulse-Echo & Echo-Echo Modes: Versatile for flaw detection and thru-paint thickness measurement.
Adjustable Gain (40-52dB): Optimizes signal for various materials and conditions.
Time Dependent Gain (TDG): Compensates for material attenuation.
Selectable Manual or Auto Zero: For quick and accurate calibration.
Dual Element Transducer Compatibility (1-10MHz): Provides flexibility for different applications.
Low Temperature Custom LCD Display (-22°F / -30°C): Ensures readability in extreme conditions.
USB-C Connectivity: Modern and efficient data transfer.
CDC Compatible Serial over USB: Standard connectivity option.
Optional Serial RS232 or Bluetooth (ZX-6): Enhanced connectivity choices.
32 Megabit Flash Memory (ZX-6 DL): Ample storage for thickness readings.
IP65 Protection Rating: Rugged and durable for demanding environments.
5 Year Limited Warranty: Long-term reliability and peace of mind.
Applications:
Thickness measurement of coated metals without paint removal.
Corrosion monitoring and assessment.
Quality control in manufacturing processes.
Inspection of pipelines, pressure vessels, and storage tanks.
Material thickness verification in various industries.
The Dakota NDT ZX-6 Series Multi-Echo Thickness Gauge offers a powerful combination of advanced technology, versatility, and ruggedness, making it an essential tool for professionals requiring accurate and reliable thickness measurements in diverse applications.
