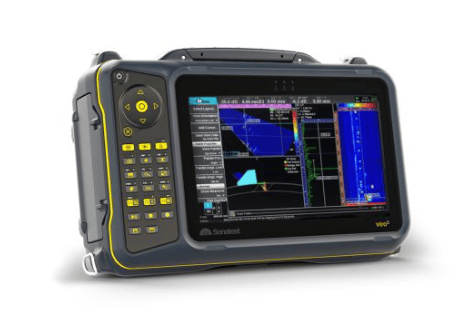

Sonatest Veo3 16:64PR / 2UT:PR BNC Customer Kit
SKU: VEO31664BNC
A portable phased array, TOFD and conventional UT instrument with a 10.4" touchscreen, 128 GB of storage and simultaneous multi-technique scanning, ready for live TFM, supplied as a complete field kit with TOFD software and a Storm case.
| 16:64PA pulser/receiver plus 2 UT | 10.4"1024 × 600 touchscreen | 128 GBSSD storage | IP66Designed for |
The Sonatest Veo3 retains the best features of the established Veo line and adds a PCAP touch interface, user templates and live TFM capability. Its real-time multi-scan and multi-technique architecture lets inspectors run phased array, TOFD and TFM views at the same time. They can keep working to their approved procedures while gaining the extra resolution and sizing performance of TFM.
This 16:64PR / 2UT:PR BNC customer kit comes ready for phased array and TOFD weld inspection, with TOFD software, UTstudio+ analysis software, batteries, power supply and a Storm transport case. It's backed by a 2-year warranty and can be upgraded in the field as your work grows.
See It in Action
▶ Watch on YouTube | More Veo3 tutorials
Key Features
 | Superior digital technologyA 32-channel PA beamformer with enhanced digital signal processing delivers exceptional signal-to-noise ratio. A 64-bit Linux system with a fast 128 GB SSD records huge acquisitions in a single file, and the multi-technique architecture lets you view TFM, phased array and TOFD scans at the same time. |
Intuitive touch workflowThe application-driven menus, PCAP touchscreen and user templates make setup second nature. Wizards for sound velocity, wedge delay, TCG, DAC, TOFD setup and encoder calibration come standard. A 3D inspection plan shows where probes sit on the part, with focal law changes applied instantly at 0.1° angle resolution. |  |
 | Live TFM and FMC readyWith the Live TFM option, the Veo3 generates up to six live TFM scans from multiple FMC sources, with images of up to 500,000 pixels at up to 100 pixels per mm. Full Matrix Capture data can be recorded for detailed analysis and comparison with previous inspections to track flaw and corrosion growth. |
TFMi intermodal imagingDeveloped with Holloway NDT, TFMi combines up to 4 live TFM modes in one image. It gives high-precision height assessment and better shape accuracy than conventional phased array, making defect characterization in welds far easier. |  |
Built for the Field
TOFD included
Two conventional UT channels with a 400 V ActiveEdge pulser and 4 BNC connectors run TOFD and UT scans alongside phased array. TOFD software is included in this kit.
UTstudio+ analysis software
One UTstudio+ license is included to manage setups, analyze data and build detailed reports. The free UTview viewer lets colleagues review results, and UTmap stitches C-scans into large tiled images.
Remote control with Xpair
Control the Veo3 from a PC over a simple network connection. With the Xpair Cloud option, an expert anywhere in the world can pilot the instrument remotely.
Rugged and field ready
The enclosure is designed for IP66, and hot-swappable batteries give about 6 hours of operation without shutting down.
Upgradeable in the field
Add the 32 pulser/receiver or 128-channel upgrades, Live TFM, FMC/TFM post-processing, phased array curved surface correction, CSV export or Xpair Cloud as software options.
Specifications
| General | |
| Manufacturer | Sonatest |
|---|---|
| Model | Veo3 |
| Configuration | 16:64PR phased array / 2UT:PR, BNC |
| SKU | VEO31664BNC |
| Connectors | I-PEX (PA); 4 × BNC (UT) |
| Warranty | 2 years |
| Shipping dimensions (estimated) | 559 × 457 × 254 mm (22.0 × 18.0 × 10.0 in) |
| Shipping weight (estimated) | 9.1 kg (20 lb) |
| Phased Array | |
| Pulsers / receivers | 16:64 (upgradeable to 32 PR and 128 channels) |
| Multi-scan | Up to 8 scans, depending on configuration |
| Gain range | 80 dB |
| Sampling | 125 MHz at 12-bit (16-bit processing) |
| System bandwidth | 0.2 to 23 MHz |
| Max PRF | 50,000 Hz |
| Pulse voltage | 100 to 50 V, ActiveEdge |
| Focusing | Natural, or constant depth, path, offset or resolution |
| Scan resolution | S-scan up to 0.1°; L-scan 1 element, double resolution or custom element steps |
| Max PA beams | Up to 4,096 focal laws |
| Measurement tools | Extraction box, 4 gates per A-scan, TCG, DAC and Split DAC |
| UT-TOFD | |
| Channels | 2 pulser/receivers (4 connectors); up to 2 scans (UT and TOFD) |
| Gain range | 100 dB |
| Sampling | 50, 100 or 200 MHz at 10-bit |
| System bandwidth | 0.2 to 18 MHz |
| Max PRF | 20,000 Hz |
| Pulse voltage | 400 to 100 V, ActiveEdge |
| Measurement tools | 4 gates per A-scan, TCG, DGS and Split DGS, DAC and Split DAC |
| Live TFM (Software Option) | |
| Scans | Up to 6 TFM scans and 1 FMC scan |
| Probe | Up to 64 elements |
| Image size and resolution | Up to 500,000 pixels; TFM and TFMi resolution down to 0.01 mm |
| TFMi | Up to 4 live TFM modes combined |
| System & Software | |
| Data storage | 128 GB SSD |
| Operating system | 64-bit Linux |
| Onboard tools | Live 3D scan plan, PDF auto-report, screen capture, PDF reader, integrated help |
| PC software | UTstudio+ (1 license included); UTview free viewer; UTmap and Xpair available |
| Software options | 32 PR upgrade, 128-channel upgrade, Live TFM, FMC/TFM post-process, PA curved surface correction, CSV export, Xpair Cloud |
| Calibration standards | ISO 18563 (EN 16392) and EN 12668 |
| Display, Physical & Power | |
| Display | 10.4" wide, 1024 × 600 LCD, LED backlight 460 cd/m², projective capacitive touch panel |
| Remote display | WiFi, Ethernet or VGA |
| Dimensions | 115 × 220 × 335 mm (4.52 × 8.66 × 13.19 in) |
| Weight | 5.1 kg (11 lb) without battery; 460 g (1 lb) per battery |
| Operating time | 6 hours, hot-swappable batteries |
| Power input | AC 110 to 240 V, 50/60 Hz |
| Operating temperature | -10°C to 40°C (14°F to 104°F); storage -20°C to 60°C (-4°F to 140°F) |
| Environmental rating | Designed for IP66; MIL-STD-461G section 5.21 RS103 |
What's in the Box
 |
Contents can vary by package, so contact us to confirm what ships with your order. |
Complete your PAUT setup
Add Sonatest X-Series or DAAH phased array probes with wedges, TOFD probes and wedges with BNC cables, an encoded scanner or wheel probe, plus irrigation and calibration blocks for your inspections.
Applications
The Veo3 handles advanced inspection programs across oil and gas, power generation, aerospace and fabrication.
| ✓ Phased array weld inspection | ✓ TOFD weld inspection and sizing |
| ✓ TFM and TFMi defect characterization | ✓ Crack detection and sizing |
| ✓ Corrosion mapping and C-scans | ✓ Composite and aerospace inspection |
| ✓ Pipelines and pressure vessels | ✓ Multi-probe weld inspection |
Downloads
| ⬇ Product Brochure (PDF, 0.9 MB) | ⬇ Full Specifications (PDF, 0.1 MB) |
About Sonatest
Founded in 1958, Sonatest is a leading manufacturer of ultrasonic inspection equipment, including flaw detectors, thickness gauges, phased array and TOFD systems, probes, wedges and scanners. Thousands of customers, including Shell, Airbus, Siemens and ArcelorMittal, use Sonatest instruments to keep their products and processes safe and reliable.
