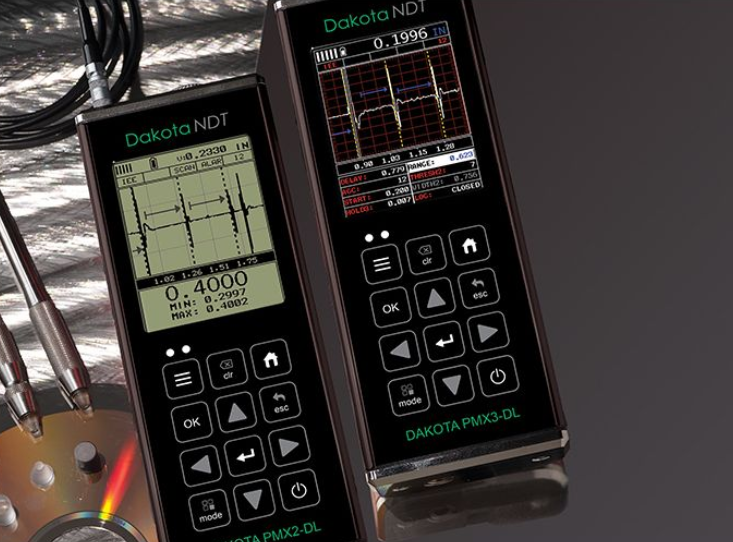

Dakota NDT — PMX Precision Thickness Gauge (PVX)
High-Resolution Precision Ultrasonic Thickness Gauge with A-Scan, B-Scan, Data Storage & 4 GB Memory SKU: Z-157-0006Overview
The Dakota NDT PMX Precision Thickness Gauge, also referenced as PVX, is a professional ultrasonic thickness measurement instrument designed for high-resolution material inspection, precision thickness measurement, and advanced NDT workflows. Built for field, shop, and laboratory use, this gauge supports accurate thickness verification across metals, plastics, composites, and industrial materials.
With 0.001 mm high resolution, multiple display options, and selectable measurement modes including A-Scan, B-Scan, Pulse-Echo, and Echo-Echo, the PMX provides strong flexibility for both routine and advanced inspection applications. Its high-speed scan capability of 250 readings per second helps technicians capture fast, repeatable measurements during production checks, corrosion surveys, and quality control inspections.
Equipped with manual or automatic gain control, 4 GB internal memory, user-definable setups, visual and audible alarms, multiple calibration and material selection options, differential mode, minimal thickness alarm, data output, storage, and data management software, the PMX is built for professional inspection teams requiring accuracy, documentation, and advanced measurement control.
What's Included
| Item | Details |
|---|---|
| Thickness Gauge | Dakota NDT PMX Precision Thickness Gauge |
| Model Reference | PVX |
| Display Modes | A-Scan, B-Scan, Pulse-Echo, Echo-Echo |
| Data Storage | 4 GB internal memory |
| Software | Data management software |
| Alarm Functions | Visual and audible alarm, minimal thickness alarm |
| Documentation | User manual / operating instructions, if included |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 14.0 in |
| Width | 12.0 in |
| Height | 6.0 in |
| Dimensions (L × W × H) | 14.0 × 12.0 × 6.0 in |
| Weight | 5.0 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Precision ultrasonic thickness gauge |
| Model | PMX |
| Model Reference | PVX |
| Resolution | 0.001 mm |
| Display Options | A-Scan, B-Scan, Pulse-Echo, Echo-Echo |
| Gain Control | Manual or AGC |
| Gain Range | 110 dB, varies with selected mode |
| Automatic Gain Control | Yes |
| User Setups | User definable setups |
| Display Language | Multiple language display |
| Alarm Functions | Visual and audible alarm with high and low limit settings |
| Calibration Options | Multiple calibration and material selection options |
| High-Speed Scan | 250 readings per second |
| Differential Mode | Included |
| Minimal Thickness Alarm | Included |
| Data Storage | 4 GB internal memory |
| Software | Data management software |
| Application | Precision thickness measurement and material verification |
| Manufacturer | Dakota NDT |
| SKU | Z-157-0006 |
Performance Features
0.001 mm High Resolution
Provides precision measurement capability for applications requiring detailed material thickness verification.
Multiple Display Modes
Supports A-Scan, B-Scan, Pulse-Echo, and Echo-Echo display options for flexible inspection and data review.
High-Speed Scan Capability
Captures up to 250 readings per second for efficient measurement collection and rapid inspection workflows.
4 GB Internal Memory
Supports data output, storage, and inspection documentation for professional reporting and quality control programs.
User-Friendly Design
Multiple language display supports flexible operator use
User-definable setups allow customized inspection configurations
Visual and audible alarms support high and low tolerance monitoring
Differential mode helps compare measurement variation against reference values
Data management software supports inspection records and reporting workflows
Built for Industrial Environments
Designed for professional ultrasonic NDT applications
Suitable for precision measurement, QA/QC, and production environments
Practical for field, shop, and laboratory inspection workflows
Built for repeated measurement and documentation use
Supports demanding inspection programs requiring high accuracy and data management
Compatibility
Compatible with:
Ultrasonic precision thickness measurement workflows
A-Scan and B-Scan inspection procedures
Pulse-Echo and Echo-Echo measurement applications
Material calibration and selection workflows
Data storage and reporting processes
Manufacturing QA/QC and industrial NDT programs
Ideal Applications
Precision ultrasonic thickness measurement
Material thickness verification
Manufacturing quality control
Production inspection
Corrosion monitoring
A-Scan and B-Scan evaluation
Differential thickness comparison
Field, shop, and laboratory NDT workflows
About Dakota NDT
Dakota NDT is a trusted manufacturer of ultrasonic testing equipment, thickness gauges, flaw detectors, probes, cables, and inspection accessories. Their products are widely used in professional NDT environments where accuracy, durability, and consistent inspection performance are essential.
