NM01LEEB432

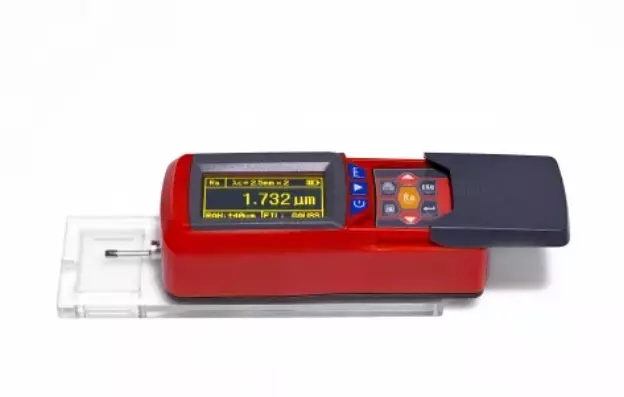

The Leeb432 Surface Roughness Tester is a compact and user-friendly handheld instrument designed for quick, accurate, and reliable measurement of surface roughness across a wide variety of machined components. Manufactured by Leeb, a trusted name in testing equipment, this portable device is an excellent choice for both on-site and in-process quality control.

Featuring a clear matrix LCD screen, the Leeb432 displays all relevant parameters and data in an easy-to-understand format. Its DSP chip-controlled operation ensures high accuracy and fast testing speeds, allowing for efficient surface finish assessments. The tester is compliant with multiple international standards, including ISO, DIN, ANSI, and JIS, ensuring your measurements are consistent with global quality requirements.

Powered by a rechargeable Li-ion battery, the Leeb432 offers extended operation, making it ideal for continuous use in various industrial settings. It supports measurement of 13 key roughness parameters, including Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, Rz(JIS), Rs, Rsk, Rsm, Rku, Rmr, Ry, Rmax, Rc, RPc, Rk, Rpk, Rvk, Mr1, and Mr2, providing comprehensive surface texture analysis.

With a resolution of 0.001 μm and a measuring range of Ra: 0.005-16 μm, Rz: 0.02-160 μm, the Leeb432 can accurately assess a wide range of surface finishes. It also offers adjustable cut-off lengths (0.25mm, 0.8mm, 2.5mm) and evaluation lengths (1.25mm, 4mm, 5mm) for versatile application.

The Leeb432 allows storage of over 100 groups of measurement data and waveforms, and its USB connectivity enables easy connection to a computer for data management and report generation using optional PC software, as well as connection to a printer for direct output. Its robust yet lightweight design (440g) and compact dimensions make it highly portable and suitable for various measurement tasks.

Key Selling Points:

• Accurate and Fast Measurement: DSP chip control ensures high precision and speed.

• Comprehensive Parameter Support: Measures 13 key surface roughness parameters.

• Complies with International Standards: Meets ISO, DIN, ANSI, and JIS requirements.

• User-Friendly Display: Clear matrix LCD screen for easy data viewing.

• Long Battery Life: Rechargeable Li-ion battery for extended operation.

• Data Storage and Output: Stores data and connects to PC and printer via USB.

• Portable and Robust: Lightweight and compact design for easy handling in various environments.

Benefits:

• Ensures Surface Finish Quality: Provides reliable and accurate roughness assessment.

• Increases Inspection Efficiency: Fast measurement speed saves valuable time.

• Versatile Applications: Suitable for a wide range of machined surfaces.

• Easy Data Management: Simplifies recording and reporting of measurement results.

• Ideal for On-Site Use: Portable design and long battery life offer convenience in the field.

Applications:

• Measurement of surface roughness in mechanical processing and manufacturing, especially metal processing.

• Quality control in various industries including electricity, communications, and electronics.

• Assessment of surface finish on components like oil pump nozzles, crankshafts, camshafts, cylinders, and pistons.

• Suitable for both shop floor use and mobile measurement needs.

• Can be used for incoming goods inspection and final product quality control.
