NM01IQI02CAL

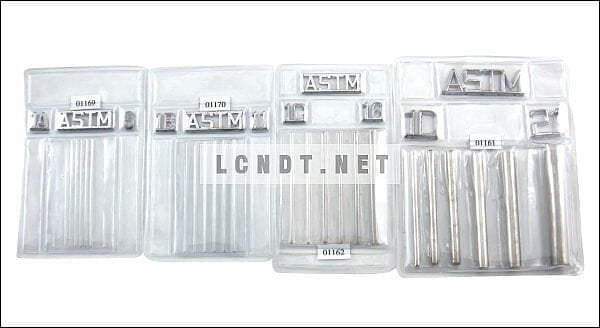

The ASTM E 747-97 Wire Type Penetrameter Set 02-C (AL) is an aluminum wire indicator designed for precise radiographic inspection and quality assurance. This set contains a series of six parallel wires of varying diameters, encapsulated in flexible PVC sheets, offering durability and clarity during radiographic testing. It follows the ASTM E747 standard, where each indicator is equipped with lead characters to identify ASTM specifications, material type, and wire diameter range.

The ASTM E747-97 Set 02-C includes wire diameters suitable for a variety of applications, especially in non-destructive testing (NDT) for radiographic clarity and resolution assurance. This set supports material verification and flaw detection across aluminum-based products.

Specifications:

• Material: Aluminum (AL)
• Standard Compliance: ASTM E 747-97
• Wire Length: 2 inches (50 mm)
• Encapsulation: Transparent, flexible PVC for durability
• Identification: Lead characters indicate ASTM standard, material type, and wire diameter range

Wire Diameters for Set C (AL):

• 0.81 mm (Wire 1)
• 1.02 mm (Wire 2)
• 1.27 mm (Wire 3)
• 1.60 mm (Wire 4)
• 2.03 mm (Wire 5)
• 2.50 mm (Wire 6)
