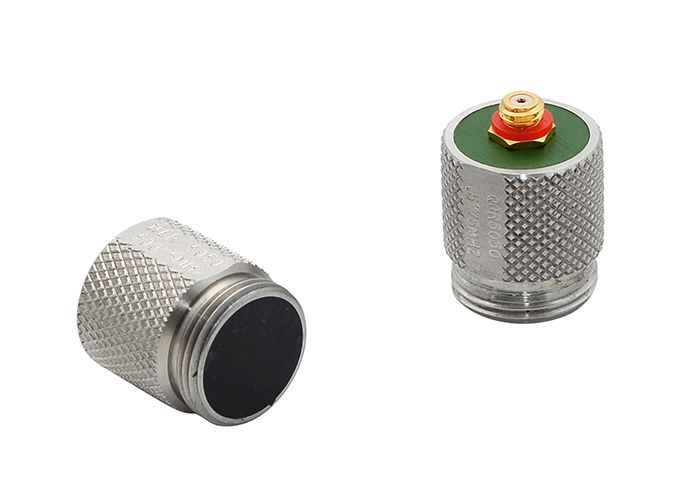

NM01QC3725

The DAKOTA QUICK CHANGE SHEAR WAVE TRANSDUCERS (QC), 2.25 MHZ, 0.375" are high-performance ultrasonic transducers designed for efficient and reliable shear wave inspections in a variety of non-destructive testing (NDT) applications. These transducers are engineered for quick and easy replacement, enhancing productivity and minimizing downtime during inspections.

The "QUICK CHANGE (QC)" designation highlights the transducer's design for rapid connection and disconnection. This feature allows for seamless transitions between different transducers or inspection setups, saving valuable time and effort.

Operating at a frequency of 2.25 MHz, these transducers provide a balance between penetration and resolution, making them suitable for a wide range of shear wave inspections. This frequency is commonly used for detecting flaws in welds, pipes, and structural steel.

The 0.375" element size influences the beam characteristics of the transducer, providing a focused and effective shear wave beam. This size is well-suited for general-purpose shear wave inspections, offering a good compromise between sensitivity and beam spread.

Manufactured by Dakota Ultrasonics, a reputable provider of ultrasonic testing equipment and accessories, these transducers are built to stringent quality standards. Their robust construction and reliable performance ensure consistent and accurate inspections.

These transducers are designed for use with compatible ultrasonic flaw detectors and are essential tools for detecting flaws such as cracks, lack of fusion, and inclusions in various materials.

Key Features and Benefits:

• QUICK CHANGE (QC) Design: Enables rapid transducer replacement.

• 2.25 MHz Frequency: Provides a balance of penetration and resolution.

• 0.375" Element Size: Offers a focused shear wave beam.

• DAKOTA Quality: Manufactured by a trusted provider of UT equipment.

• Reliable Performance: Ensures consistent and accurate inspections.

• Versatile Application: Suitable for various shear wave inspections.

Applications:

• Weld Inspection: Detecting flaws in welds.

• Pipe Inspection: Inspecting pipes for defects.

• Structural Steel Inspection: Inspecting structural steel components.

• General Shear Wave Testing: Detecting flaws in various materials.

• Aerospace Industry: Inspection of structural components.

• Automotive Industry: Inspection of welds and structural parts.

Technical Details:

• Probe Diameter: 3/8"

• Probe Characteristic: Standard

• Damping: HG

• Connector Type: Microdot

• Suitable for: FX70, FX71, FX80
