NM01SU200K3A45DX64105S

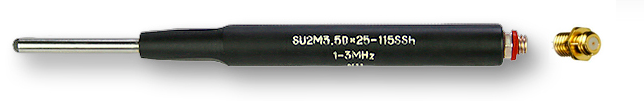

OKOndt Eddy Current Angle Shaft Surface Probe (45˚ Tip, Single/Single Shielded)

The OKOndt Eddy Current Angle Shaft Surface Probe with its distinctive 45˚ tip is a high-precision inspection tool engineered for detecting surface and near-surface discontinuities in challenging geometries on conductive materials. Manufactured by OKOndt GROUP, this specialized probe is an essential asset for NDT professionals requiring accurate flaw detection in areas inaccessible to standard straight probes, such as fillets, chamfers, grooves, and intricate component features.

Key Features & Benefits:

• Specialized 45˚ Angled Tip: The primary distinguishing feature, allowing the probe to effectively inspect angled surfaces, corner radii, and fillet welds, where straight probes would lack proper coupling or coverage. Ideal for complex component geometries.

• Surface & Near-Surface Flaw Detection: Utilizes Eddy Current Technology to sensitively detect surface-breaking cracks, pits, material variations, localized corrosion, and other discontinuities.

• Single Coil, Single Shielded Configuration: This design provides focused inspection capabilities with improved signal-to-noise ratio, enhancing the clarity and reliability of defect indications.

• Optimal Tip Diameter (4.5 mm): The compact 4.5 mm diameter sensing element ensures high-resolution inspection of small defects and allows access to confined areas.

• Precise Dimensions:

  • Drop Length (6.4 mm): Specifies the exact reach of the angled tip from the main shaft, crucial for fitting into specific geometries.

  • Total Length (105 mm): Provides sufficient reach and a comfortable grip for manual scanning.

• Versatile Material Compatibility (Fe / NFe): Suitable for use on a broad spectrum of conductive materials, including both ferrous (magnetic) and non-ferrous (non-magnetic) alloys.

• Non-Contact Inspection: Eddy current inspection is a non-contact method, preventing any damage or marring to the inspected surface.

• Standard MicroDot Connector: Ensures wide compatibility with a variety of industry-standard eddy current flaw detectors, including OKOndt's Eddycon series.

• Durable & Ergonomic Design: OKOndt probes are built to withstand the rigors of industrial NDT environments, offering robust performance and comfortable handling.

Specifications:

• Manufacturer: OKOndt GROUP (OKO-NDT)

• Probe Type: Angle Shaft Surface Probe

• Tip Angle: 45˚

• Coil Configuration: Single coil, Single Shielded

• Tip Diameter ('D'): 4.5 mm

• Drop Length: 6.4 mm

• Total Length: 105 mm

• Connector Type: MicroDot

• Material Compatibility: Ferrous (Fe) and Non-Ferrous (NFe) conductive materials

• Operating Frequency: (Note: Specific operating frequency is part of the full model number and should be specified by the buyer/seller to ensure compatibility with their EC instrument and application. This probe design is typically used with frequencies ranging from hundreds of kHz to several MHz for crack detection.)

• Shaft Material: (Typically durable non-conductive material or insulated metal)

Typical Applications:

• Inspection of fillets, radii, and chamfers in components like turbine blades, shafts, and cast parts.

• Detection of fatigue cracks in bolt holes, corners, and other stress concentration areas.

• Inspection of gear teeth roots and threaded sections.

• Quality control in aerospace, automotive, power generation, and manufacturing industries.
