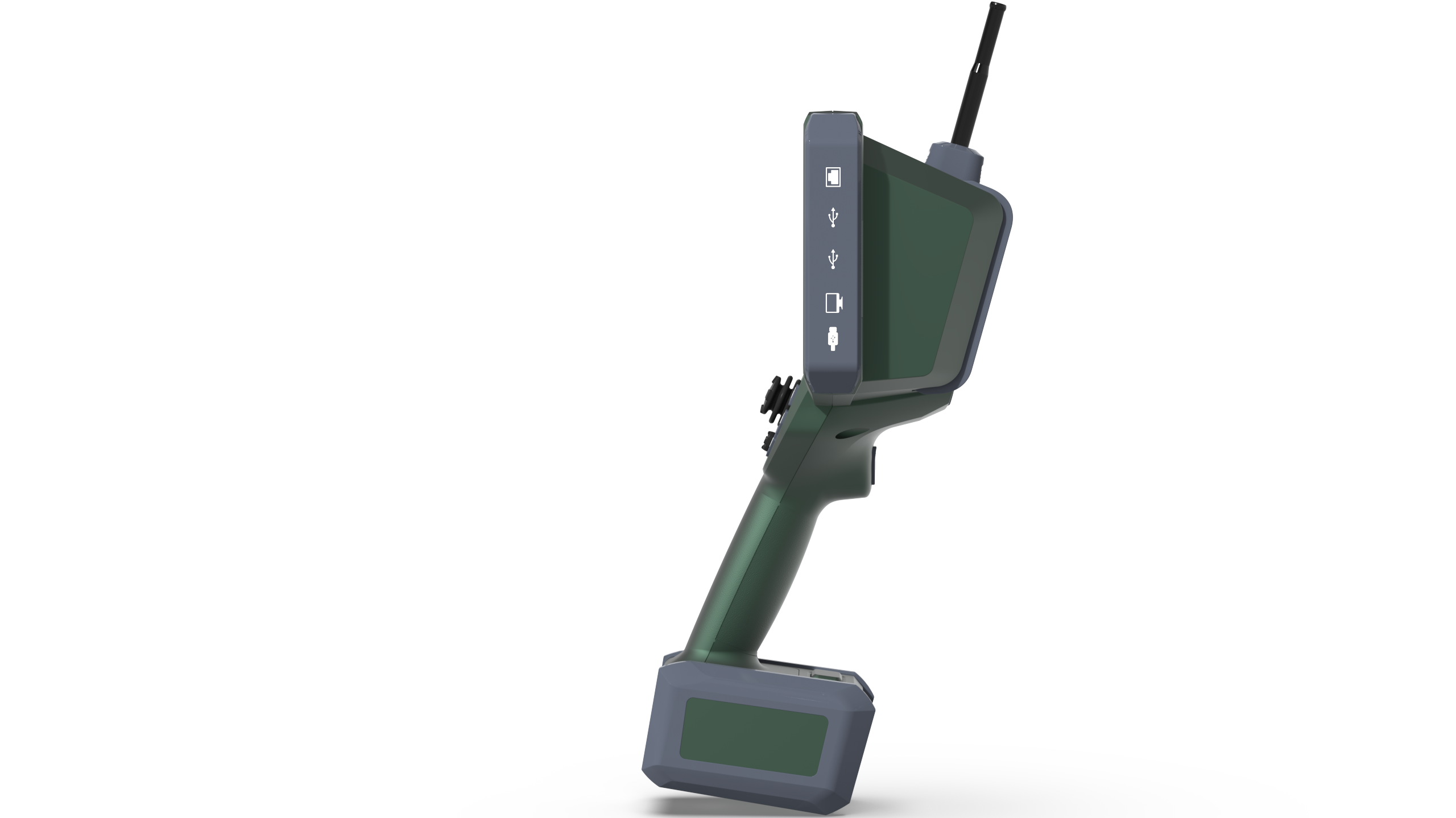

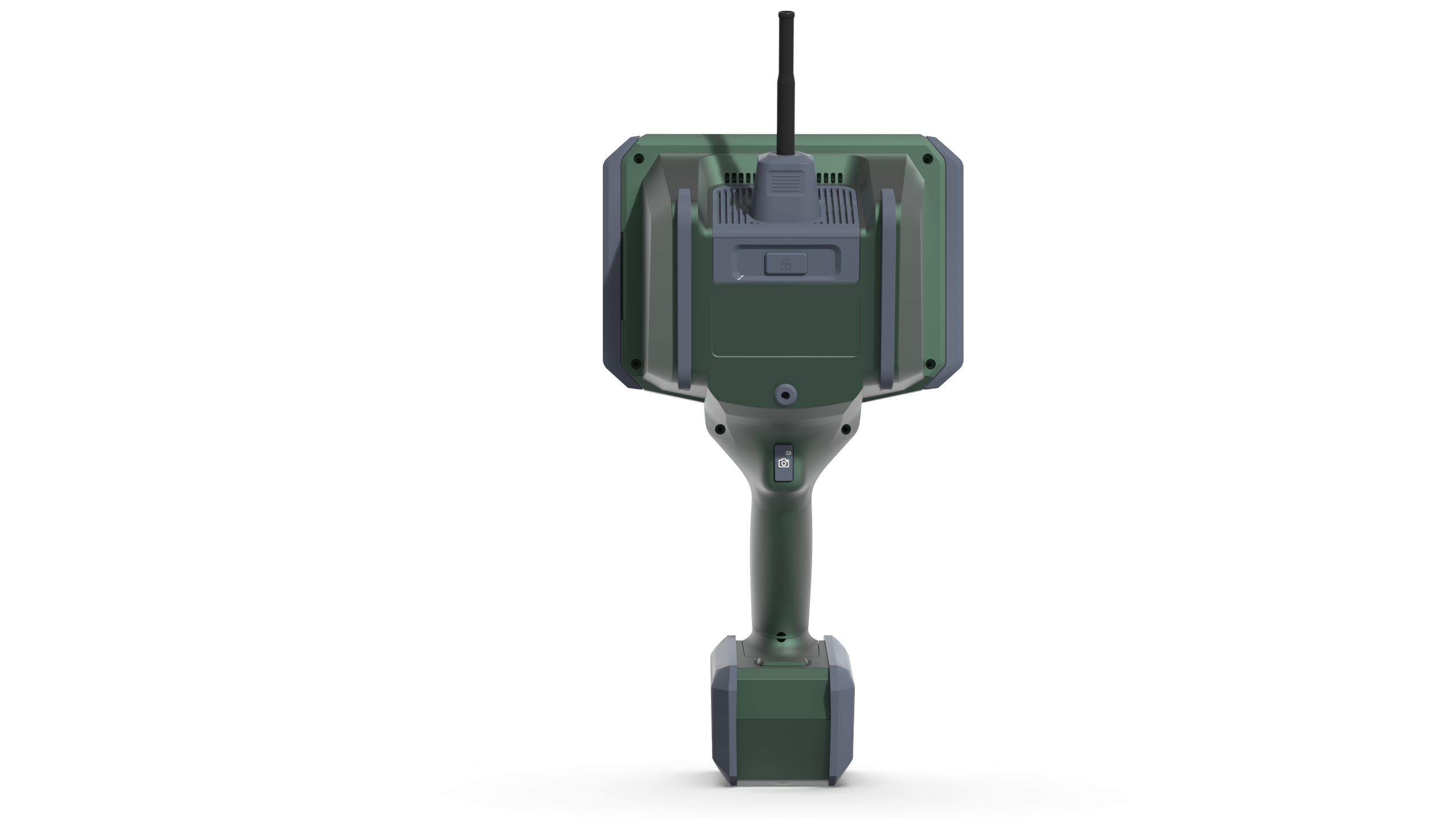

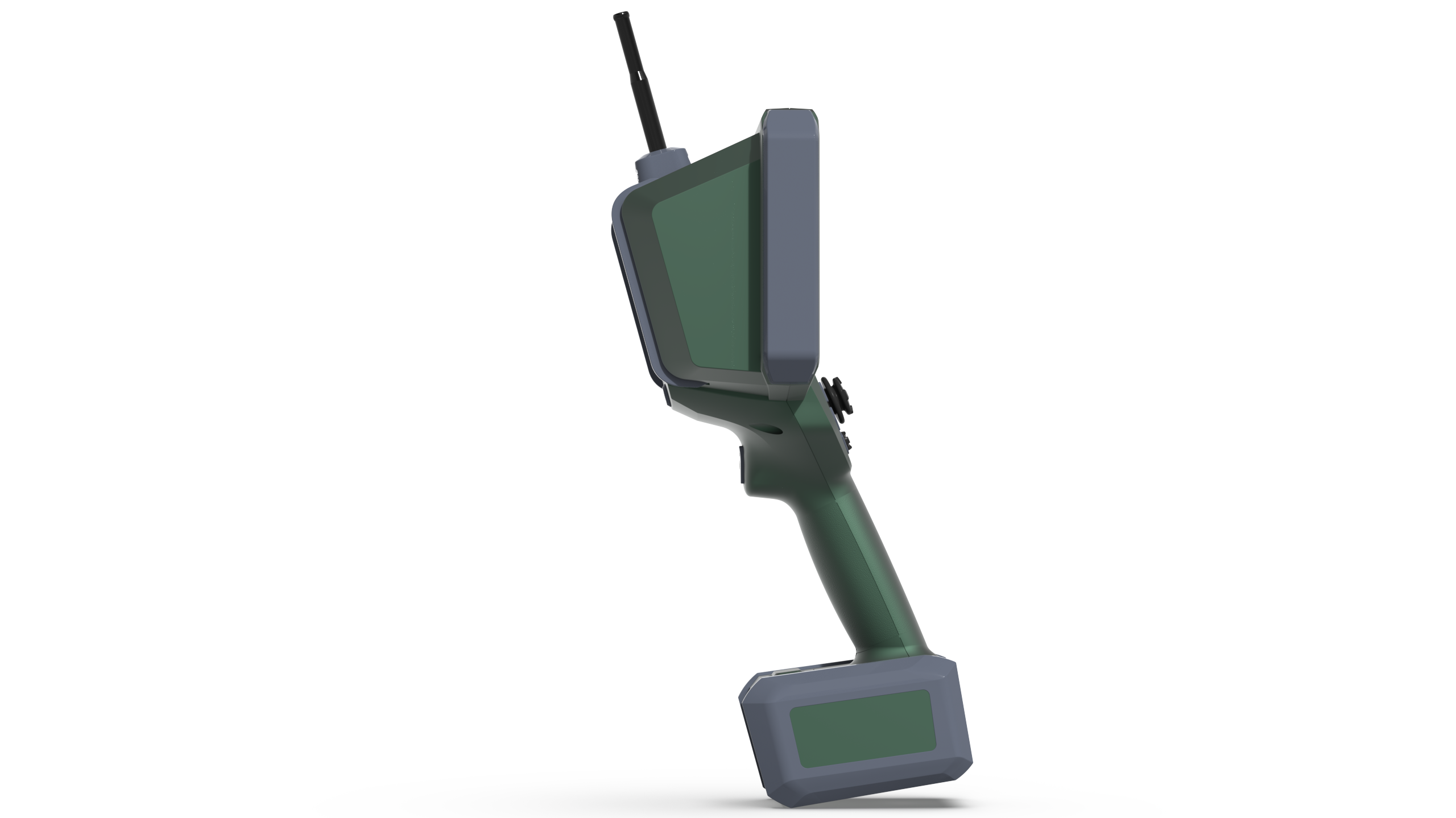

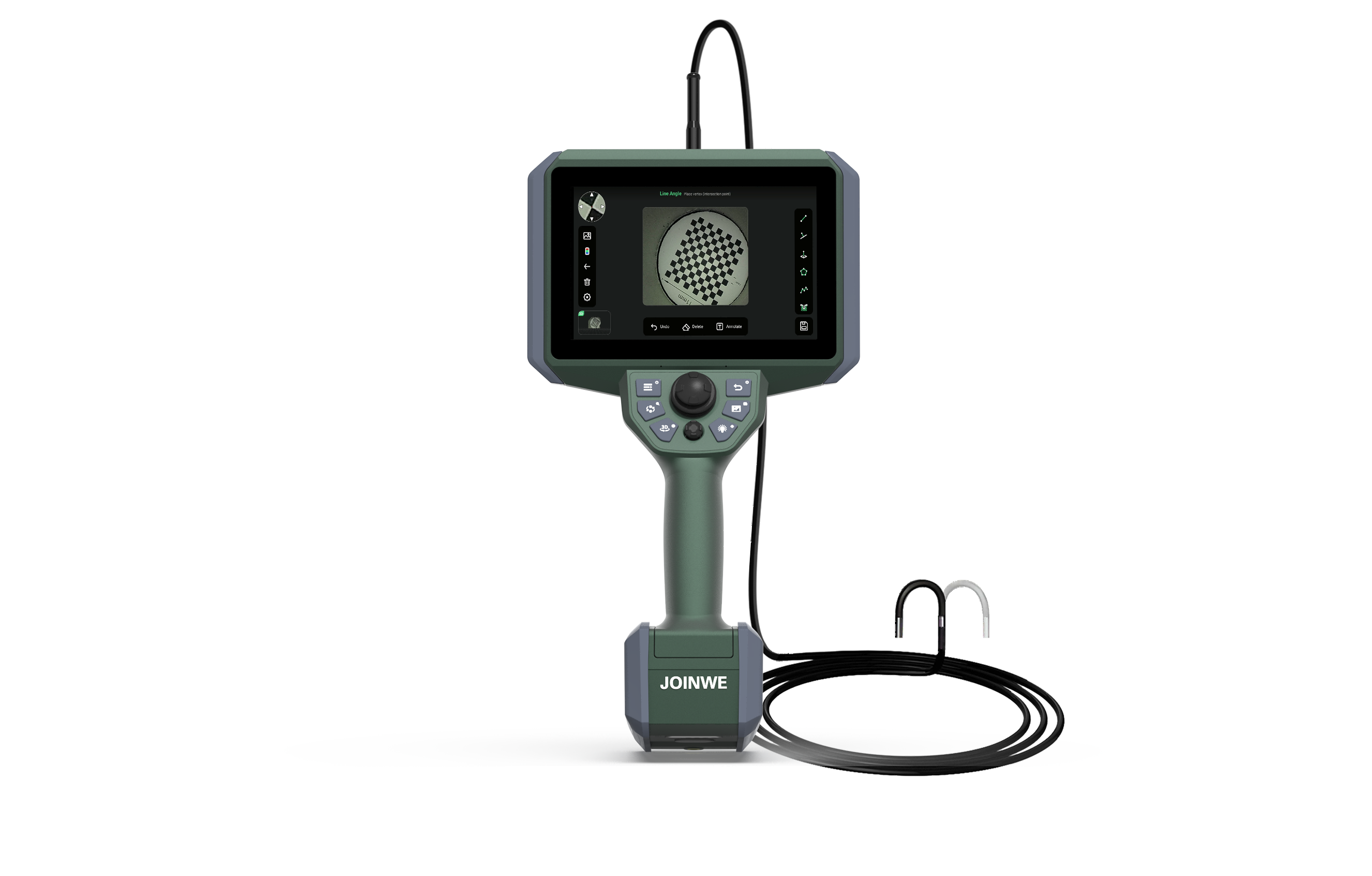

Joinwe JW-T Series | 7-Inch HD Motorized Industrial Videoscope
The Professional Choice for Large-Scale Visual Inspection
The Joinwe JW-T Series is a powerhouse of Remote Visual Inspection (RVI) technology. Featuring a massive 7-inch high-definition screen, this unit is designed for inspectors who require maximum visibility without compromising on portability. With its 10-meter (32.8 ft) tungsten-braided insertion tube and precision motorized 360° articulation, the JW-T allows you to navigate the deepest internal corridors of industrial assets with cinematic clarity.
Key Performance Features
Expansive 7-Inch HD Display: The upgraded 7-inch industrial-grade LCD provides a 40% larger viewing area than standard 5-inch models. This allows for easier identification of hairline cracks, pitting, and foreign objects (FOD) without eye strain.
Precision Motorized Articulation: Experience effortless control. The joystick-controlled motorized steering provides a full 360° sweep, allowing the 6 mm probe to navigate tight elbows and complex junctions even at the full 10-meter extension.1
Ultra-Bright 40,000 Lux Illumination: Equipped with high-intensity front-mounted LEDs, this unit penetrates the pitch-black interiors of large-diameter pipes and turbines, delivering crystal-clear imagery where others fail.
Extreme Durability: The 10-meter insertion tube is wrapped in a multi-layered tungsten wire braid, providing superior wear resistance against abrasive surfaces, while the host is housed in a rugged, impact-resistant alloy frame.
HD Documentation: Capture every detail with 1280 x 720 HD resolution. The system supports instant photo and video capture for professional reporting and audit compliance.
Technical Specifications
| Component | Specification |
| Display | 7-inch Industrial HD LCD |
| Probe Diameter | 6.0 mm |
| Tube Length | 10 Meters (32.8 ft) |
| Resolution | 1280 x 720 (HD) |
| Articulation | 360° Motorized All-Way Steering |
| Illumination | Front-mounted LED, 40,000 Lux |
| Field of View (FOV) | 100° |
| Depth of Field (DOF) | 8 mm – 150 mm |
Dimensions & Weight
Host Dimensions (LxWxH): ~350 x 240 x 65 mm (13.8 x 9.4 x 2.6 in)
Total System Weight: ~3.2 kg (7.0 lbs) — Balanced for handheld use
Shipping Case Weight: ~8.5 kg (18.7 lbs) — Includes heavy-duty protective transit case
Ideal For:
Industrial Power Plants: Boiler tubes, main steam lines, and headers.
Refineries: Long-range heat exchanger and pressure vessel inspections.
Large-Scale Infrastructure: Inspections of bridge cables, hollow piers, and culverts.
Automotive/Marine: Large diesel engine cylinders and exhaust systems.
Reliability Note: The JW-T Series (Regular Version) is engineered for consistent performance in temperatures ranging from -20°C to 70°C, making it a dependable partner for field inspections in diverse climates.
