NM0327109

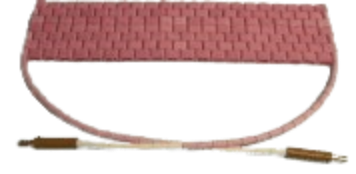

EHS CMH21-80 Ceramic Heater - 21" x 5.75", 80 Volt Flexible Heating Pad

The EHS CMH21-80 is a durable and versatile flexible ceramic pad heater, measuring 21 inches in length and 5.75 inches in width. Operating at 80 volts, this heater is constructed with high-quality 80/20 Nickel/Chrome heating wire encased in interlocking sintered alumina ceramic beads, ensuring excellent insulation and high-temperature performance up to 2150°F (1176°C). Its flexible design allows it to easily conform to various shapes, making it ideal for pre- and post-weld heat treatment on pipes, pressure vessels, and other components. The heater is equipped with robust nickel 212 cold tail wires and two secure male 60 amp twistlock connectors with insulated covers for reliable operation.

Key Benefits:

• Optimal Size: 21" x 5.75" dimensions for effective heating of specific areas.

• High-Temperature Performance: Capable of reaching up to 2150°F (1176°C).

• Durable Construction: Built with high-quality materials for long-lasting use.

• Flexible Design: Easily conforms to curved and irregular surfaces.

• Safe and Reliable Connections: Features insulated twistlock connectors.

Applications:

• Preheating of welds.

• Post-weld heat treatment.

• Stress relieving.

• Bending and forming of metals.

• Any application requiring controlled and localized heating up to 2150°F.
