NM01MCCAUT0084000

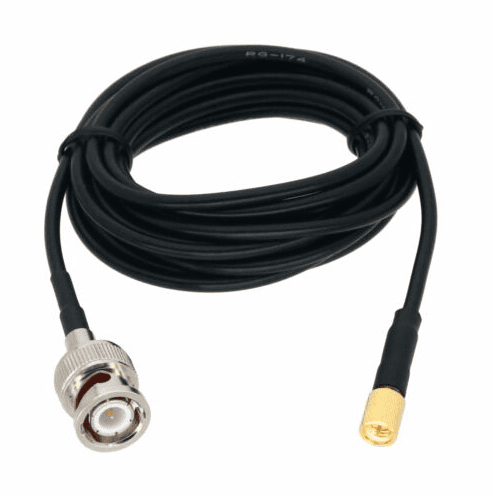

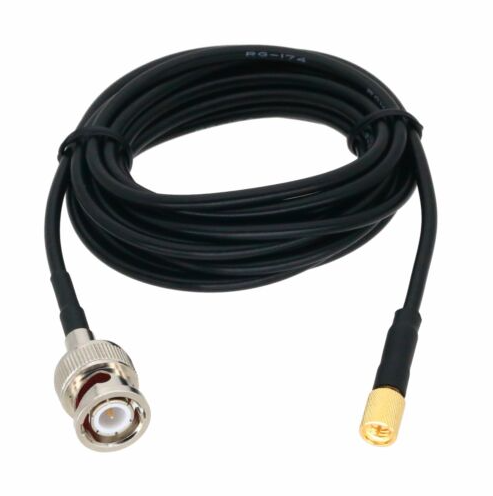

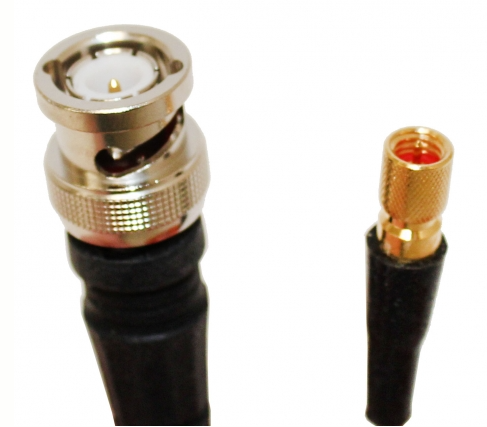

The UT Cable BNC to Microdot is a high-quality interconnect designed for seamless integration between ultrasonic transducers and testing instruments. Featuring a widely compatible BNC connector on one end and a Microdot connector (typically 10-32 UNF) on the other, this extended 4-meter (approximately 13.12 feet) cable provides a reliable connection for accurate ultrasonic signal transmission with increased reach.

Constructed with flexible RG174 coaxial cable, this longer lead offers enhanced maneuverability and routing flexibility during inspections of larger structures or in more complex testing setups. The BNC connector provides a quick and easy interface to your instrument, while the Microdot connector is a common standard for many compact ultrasonic transducers, particularly single element probes.

This extended cable is an essential accessory for any ultrasonic testing professional utilizing instruments with BNC connectors and transducers with Microdot connectors, providing both reliable signal transfer and the extra length needed for greater testing flexibility.

Key Selling Points:

• BNC to Microdot Interface: Specifically designed for connecting instruments with BNC ports to transducers with Microdot connectors.

• Flexible RG174 Coaxial Cable: Enables ease of handling and routing, even with the extended length.

• Extended 4-Meter Length: Provides increased reach and flexibility for various testing configurations.

• Reliable Signal Transmission: Ensures accurate data transfer for dependable results.

• Durable Construction for NDT Environments: Built to withstand typical usage in ultrasonic testing.

• Secure and Stable Connections: BNC and Microdot connectors ensure a firm and reliable link.

Benefits:

• Guarantees Compatibility: Provides a direct and secure connection between dissimilar connector types.

• Enhances User Convenience: The flexible and longer cable allows for comfortable and unrestricted movement during inspections of larger areas.

• Offers Extended Reach: The 4-meter length accommodates a wider range of testing scenarios and complex setups.

• Maintains Signal Integrity: High-quality RG174 cable ensures efficient data transfer over longer distances.

• Provides Long-Term Reliability: Durable construction withstands the demands of NDT applications.

Applications:

This UT cable is commonly used to connect:

• Single element contact transducers with Microdot connectors to ultrasonic flaw detectors or thickness gauges with BNC connectors, especially when greater separation is needed.

• Angle beam transducers with Microdot connectors to UT instruments equipped with BNC ports in larger inspection setups.

• Various other ultrasonic transducers featuring Microdot connectors to compatible instruments utilizing BNC connections, where extended reach is required.

The UT Cable BNC to Microdot with an extended 4-meter length is a crucial component for establishing a reliable and efficient ultrasonic testing system, ensuring seamless communication between your transducer and instrument with the added benefit of increased reach for greater testing flexibility.
