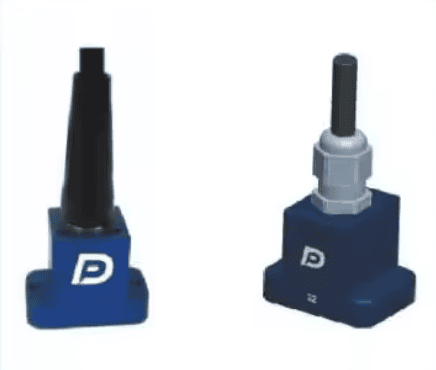

NM01TAB2708X9

The OKO-NDT Angle Beam Probe TAB is a high-performance, single-element ultrasonic transducer meticulously engineered for precise angle beam inspections. This probe is designed to provide reliable and accurate flaw detection in a variety of materials, with a particular focus on weld and structural integrity assessments.

This probe is a "Through Angle Beam" (TAB) type, having a single crystal, making it well suited to many inspections.

Operating at a frequency of 2.0 MHz, this probe is optimized for applications where a balance of penetration and sensitivity is required. The 2.0 MHz frequency allows for effective inspection of weldments and structural components, providing reliable detection of subsurface discontinuities.

The defining characteristic of this probe is its 70-degree refracted angle. This angle is specifically chosen to optimize the detection of common weld defects, such as cracks, lack of fusion, and inclusions. The 70-degree angle provides excellent sensitivity for detecting flaws oriented at critical angles within the material.

The probe's 8 x 9 mm active element size contributes to a focused ultrasonic beam, ensuring optimal sensitivity and flaw characterization. This element size is carefully selected to provide a balance between beam spread and sensitivity, enhancing the probe's overall performance.

To ensure secure and reliable connection to ultrasonic testing instruments, the probe is equipped with a Lemo 00 connector. This high-quality connector minimizes signal loss and ensures consistent data transmission, contributing to the accuracy of inspection results.

Manufactured by OKO-NDT, a reputable provider of non-destructive testing (NDT) solutions, this angle beam probe is built to stringent quality standards. This ensures durability, reliability, and consistent performance in demanding industrial environments.

Key Features and Benefits:

• 2.0 MHz Frequency: Provides excellent penetration for angle beam inspections.

• 70° Refracted Angle: Optimized for detecting common weld defects.

• 8 x 9 mm Active Element: Provides a focused ultrasonic beam for reliable flaw detection.

• Lemo 00 Connector: Ensures a secure and reliable connection.

• OKO-NDT Quality: Manufactured by a trusted provider.

• Single Element TAB Probe: For accurate angle beam inspections.

Applications:

• Weld Inspection: Detection and sizing of weld defects.

• Pipe Inspection: Flaw detection in pipes.

• Pressure Vessel Inspection: Inspection of pressure vessel integrity.

• Structural Integrity Assessment: General angle beam inspections.
