NM01MCCAUT003DB

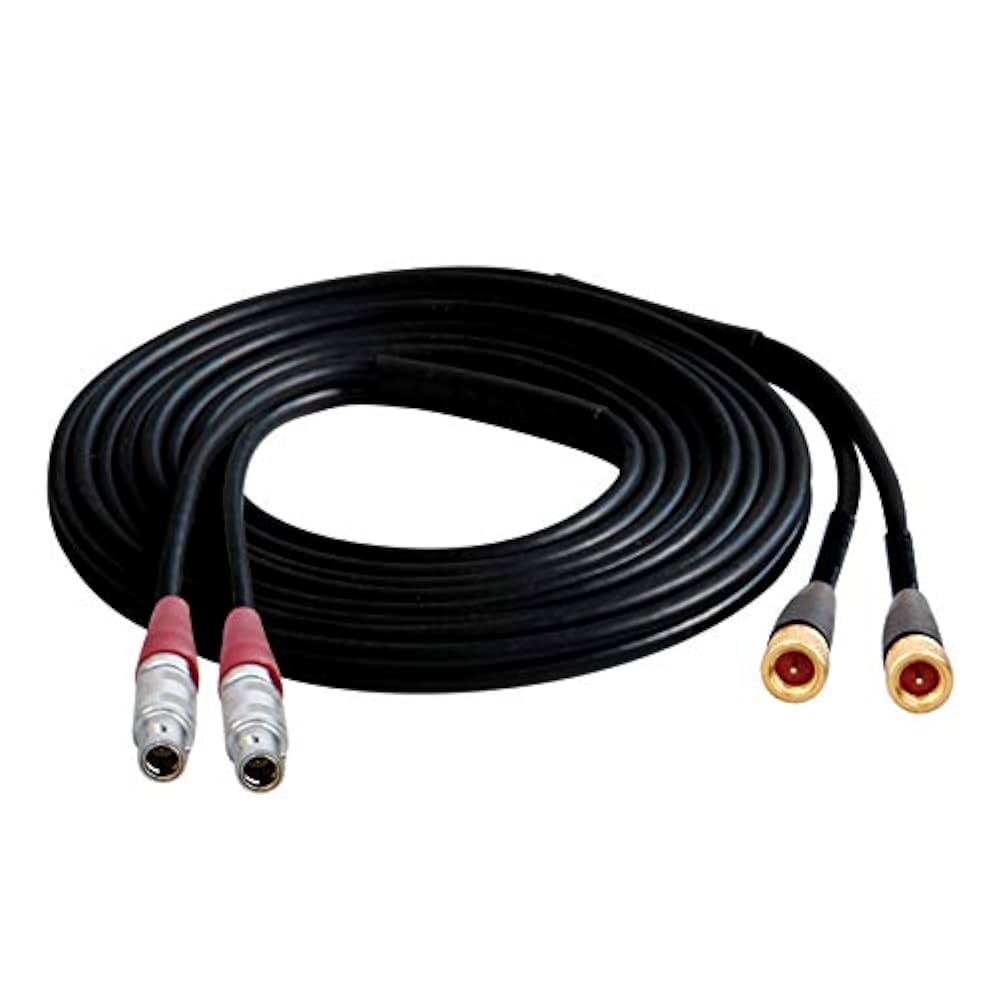

The Dual UT Specialty Cable is a uniquely configured 72-inch (6 feet) cable engineered to connect dual-element ultrasonic transducers featuring a Lemo 00 connector to ultrasonic testing instruments that utilize both a 10-32 Regular Microdot connector and a 12-32 Large Microdot connector. This specialized cable incorporates two independent RG174 coaxial cables within a single, protective outer sheath. One RG174 cable is terminated with a Lemo 00 connector at one end and a 10-32 Regular Microdot connector at the other, while the second RG174 cable features a Lemo 00 connector at one end and a 12-32 Large Microdot connector at the other.

Key Selling Points:

• Specialized Dual Microdot Interface: Specifically designed to connect to instruments requiring both 10-32 Regular and 12-32 Large Microdot inputs for dual-element probes with a Lemo 00 connection.

• Dual RG174 Coaxial Cables: Ensures independent and reliable signal transmission for the separate transmit and receive elements of dual-element transducers.

• High-Quality Connectors: Features durable Lemo 00 and precision-machined Microdot connectors for secure and efficient signal transfer.

• Practical 72-inch Length: Provides ample reach and flexibility for various ultrasonic testing applications.

• Robust Construction: The RG174 cables and outer sheath are designed to withstand typical industrial use.

Benefits:

• Enables Direct Connection to Specialized Instruments: Provides a plug-and-play solution for instruments requiring this specific dual Microdot input configuration for Lemo 00 dual-element probes.

• Ensures Optimal Dual-Element Probe Performance: Facilitates accurate near-surface flaw detection and thickness measurements.

• Maintains Signal Integrity: The RG174 coaxial cables minimize signal loss and interference.

• Offers Convenience and Flexibility: The 6-foot length is suitable for both benchtop and field applications.

Approximate Dimensions (inches):

• Length: 72 inches

• Diameter of each RG174 cable: Approximately 0.11 inches

• Outer diameter of the dual cable sheath: Approximately 0.25 inches (This may vary slightly.)

• Lemo 00 Female Connector Diameter: Approximately 0.25 inches

• Lemo 00 Female Connector Length (including strain relief): Approximately 1.6 inches

• 10-32 Regular Microdot Male Connector Diameter: Approximately 0.19 inches (threaded portion)

• 10-32 Regular Microdot Male Connector Length (including strain relief): Approximately 1.2 inches (This can vary.)

• 12-32 Large Microdot Male Connector Diameter: Approximately 0.22 inches (threaded portion)

• 12-32 Large Microdot Male Connector Length (including strain relief): Approximately 1.2 inches (This can vary.)

Applications:

This unique dual UT cable is specifically designed for connecting dual-element ultrasonic transducers (with Lemo 00 connectors) to ultrasonic testing instruments requiring one 10-32 Regular Microdot and one 12-32 Large Microdot connector input. This specialized configuration may be used in specific niche applications such as:

• Advanced near-surface flaw detection techniques.

• Specialized corrosion mapping systems.

• Unique material characterization applications.

• Legacy or specialized ultrasonic testing instruments with this particular connector requirement.
