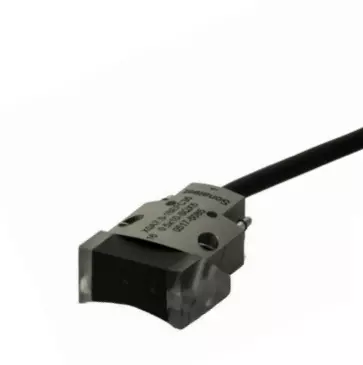

NM01X0AW00345
Out of stock
Tags:
X0AW-N45S-IHC, Wave Type (LW/SW): S, angle steel: 45°, cut angle: 39°, delay line (mm): 0. with irrigation & radious of 4.5" OD, Sonatest.
$474.00
Product Details
Small Bore, Thin Weld Inspection
Common applications:
Fits on most low profile scanners
Technical Details:
- Wave Type: S
- Nominal Refracted Angle in Steel: 45°
- Recommended Sweep (in steel): Min 35°, Max 60°
- Delay Line Length: 0mm
- Wedge Dimensions: Cut Angle 39°, Length 18mm, Width N/A, IHC Width 21mm, Front Height H1 13.2mm, Back Height 2.4mm.
- Radious: 4.5"
