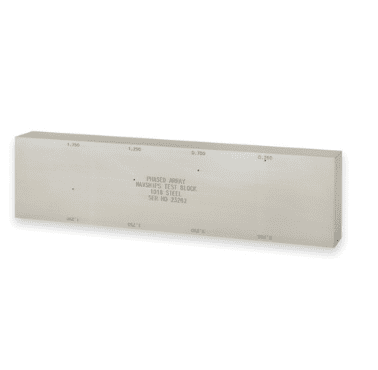

The PH Tool Phased Array Navships Test Block (Inch) made from Special Alloy 4340 is a specialized calibration standard designed for setting up, calibrating, and verifying the performance of phased array ultrasonic testing (PAUT) equipment. This block is a modified version of the traditional Navships block, optimized to minimize hole interference commonly encountered when using phased array techniques.

Key Features:

• Material: High-strength Special Alloy 4340 Steel. This material provides specific acoustic properties suitable for calibration.

• Inch Dimensions: Manufactured with precise inch measurements.

• Optimized Hole Configuration for Phased Array: Typically contains four strategically placed, small diameter side-drilled holes drilled through the width of the block at specific depths. This configuration is designed to reduce interference between reflections when using phased array beams. The exact hole sizes and depths might vary slightly depending on the specific PH Tool drawing number for this 4340 version.

• Versatile Calibration Capabilities: Suitable for:

  • Verifying beam steering capabilities of phased array probes.

  • Determining the probe index point.

  • Performing wedge delay calibration.

  • Assessing system sensitivity.

• Durable Construction: Made from robust 4340 steel for longevity and reliable performance.

• PH Tool Quality: A trusted calibration standard from a reputable manufacturer in the NDT industry.

Applications:

• Calibration and performance verification of phased array ultrasonic testing (PAUT) systems.

• Setting up and optimizing PAUT inspections for various applications.

• Training and education in phased array ultrasonic techniques.

• Quality control in industries utilizing advanced ultrasonic inspection methods.
