NM01RTRH1

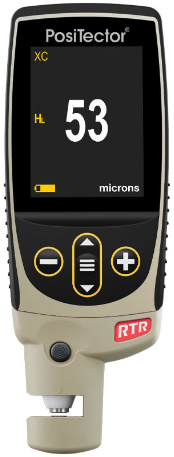

The PosiTector® RTR H Standard combines the precision of the RTR H probe with the reliable functionality of the PosiTector Standard gauge body to provide a digital solution for surface profile measurement. This instrument is crucial for ensuring proper surface preparation prior to coating application, as specified by various industry standards.
Key Components and Features:
PosiTector RTR H Probe:
Accurate Digital Measurement: Provides a precise digital reading of the peak-to-valley height (H) and linearized height (HL) of the surface profile replicated onto the tape.
Automatic Subtraction: Automatically subtracts the incompressible film thickness (50.8 µm or 2 mils) of the replica tape, yielding the true surface profile height.
Linearized Height (HL): Calculates and displays a linearized height value that is accurate across the full range of Coarse and X-Coarse replica tapes, simplifying the measurement process and reducing the need for averaging.
Mils/Microns Switchable: Allows users to easily toggle between imperial (mils) and metric (microns) units.
Compliance: Adheres to recognized national and international standards, including ISO 8503-5, ASTM D4417 Method C, NACE RP0287, and SSPC-PA17.
PosiTector Standard Gauge Body:
Simple and Intuitive Operation: Features an enhanced, one-handed menu navigation system for ease of use.
Durable Construction: Boasts a weatherproof, dustproof, and water-resistant (IP65 rated) enclosure, ensuring reliable performance in challenging environmental conditions.
Ergonomic Design: Incorporates a comfortable, rubberized grip for prolonged use.
High Contrast Color LCD: Offers excellent readability in both bright sunlight and dimly lit areas.
Data Logging: Internally stores up to 1,000 measurement readings per probe, allowing for on-instrument review.
USB Connectivity: Equipped with a sealed USB port for seamless connection to a computer for rapid data transfer and continuous power.
PosiSoft Software: Includes complimentary PosiSoft software for downloading, archiving, viewing, and generating professional reports of the collected data.
Calibration Traceability: Supplied with a Long Form Certificate of Calibration demonstrating traceability to a national metrology institute (PTB).
Warranty: Backed by DeFelsko's comprehensive two-year warranty on both the gauge body and the attached probe.
The standard PosiTector RTR H package typically includes:
PosiTector Standard gauge body
PosiTector RTR H probe
Stainless steel burnishing tool
Five (5) cleaning cards
Check shim(s) for verification
Surface cleaning putty
Protective rubber holster with a belt clip
Wrist strap
Three (3) AAA alkaline batteries
Comprehensive instructions
Durable nylon carrying case with a shoulder strap
Protective lens shield for the display
USB cable for data transfer and power
PosiSoft desktop software
Long Form Certificate of Calibration
