NM01L120

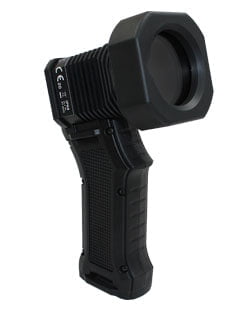

The Labino MB 3.0 HERMES (Battery) Handheld UV-A LED Light is a compact, robust, and high-intensity UV-A inspection lamp designed for demanding non-destructive testing (NDT) applications. This battery-powered unit provides exceptional portability and performance for fluorescent penetrant testing (FPT) and magnetic particle inspection (MPI).

The MB 3.0 HERMES generates a powerful UV-A intensity, typically around 4,500 µW/cm² at 38 cm (15 inches), ensuring clear and reliable detection of even the faintest indications. Its beam profile is exceptionally homogeneous, eliminating any dark spots or unevenness that could hinder inspection accuracy.

Built for challenging environments, the MB 3.0 HERMES boasts an IP68 waterproof rating and is penetrant resistant, ensuring reliable operation even in harsh conditions. Its lightweight and ergonomic design minimizes user fatigue during extended inspections. The battery-powered version offers a typical running time of 3.5 hours on a single charge, providing ample time for thorough examinations.

Key Features:

• High-Intensity UV-A LED: Provides powerful illumination for effective fluorescent indication excitation.

• Battery Powered: Offers cordless portability for inspections in various locations.

• Homogeneous Beam Profile: Ensures uniform UV-A coverage for consistent inspection results.

• Rugged and Durable: IP68 waterproof and penetrant resistant for reliable use in demanding environments.

• Lightweight and Ergonomic: Designed for comfortable handling during prolonged use.

• Long Battery Life: Provides extended operating time on a single charge.

• Meets Industry Standards: Complies with relevant NDT standards such as ASTM E3022-18 and ISO 3059-12, and specifications like Rolls-Royce RRES 90061 and Airbus AITM6-1001.

• No White Light Emission: Specifically designed for applications where white light is not permitted or desired.

Benefits:

• Enhanced Defect Detection: High-intensity UV-A light clearly reveals fluorescent indications.

• Increased Portability: Battery operation allows for flexible use in various inspection settings.

• Reliable Performance: Rugged construction ensures durability and consistent operation.

• User Comfort: Lightweight and ergonomic design reduces operator fatigue.

• Compliance with Standards: Meets critical industry requirements for NDT inspections.

Applications:

• Fluorescent Penetrant Testing (FPT) in aerospace, automotive, and general manufacturing.

• Magnetic Particle Inspection (MPI) for detecting surface and near-surface flaws.

• Leak detection using fluorescent tracer dyes.

• Quality control inspections in various industrial settings.

• Field inspections where portability is essential.
