NM01C00304

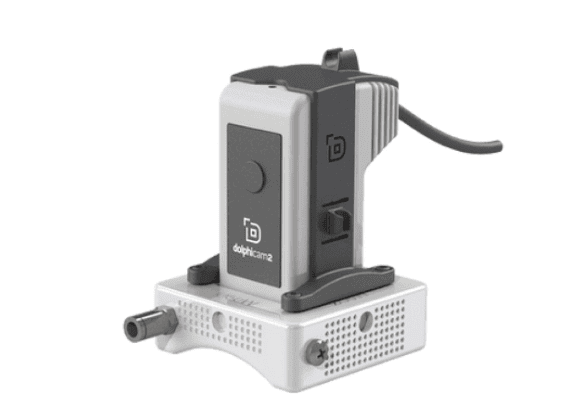

The Dolphitech Replaceable Delay Line is an accessory designed for use with Dolphitech's ultrasonic testing transducers, particularly with their advanced imaging systems like the DolphiCam2. This specific model features a 12 mm thick delay line made of Rexolite, a material known for its excellent acoustic properties, especially at higher frequencies, and its low attenuation. The inclusion of a bracket ensures secure and easy mounting to compatible Dolphitech transducers.

A delay line is used to introduce a time delay between the transducer element and the test material. This is often beneficial for improving near-surface resolution by separating the initial pulse and interface echoes from the signals originating within the material. Rexolite, being a low-loss material, helps to maintain signal integrity even with the added path length. The replaceable nature of the delay line offers cost-effectiveness and flexibility, allowing users to switch to different delay line materials or thicknesses as needed for specific applications.

Key Features:

• 12 mm Rexolite Delay Line: Provides excellent acoustic transmission and is well-suited for high-resolution imaging.

• Replaceable Design: Offers flexibility and cost-effectiveness for various inspection needs.

• Included Bracket: Facilitates secure and easy mounting to compatible Dolphitech transducers.

• Optimized for Dolphitech Systems: Designed to work seamlessly with Dolphitech's advanced ultrasonic imaging technology.

• Enhanced Near-Surface Resolution: The delay line helps to separate the initial pulse from near-surface echoes, improving the ability to detect shallow flaws.

Applications:

• Ultrasonic inspection of materials where good near-surface resolution is critical.

• Inspection of composites, metals, and multi-layered materials using Dolphitech systems.

• Applications where separating the initial pulse from early backscatter is necessary for clear signal interpretation.
