NM01ECHOFD

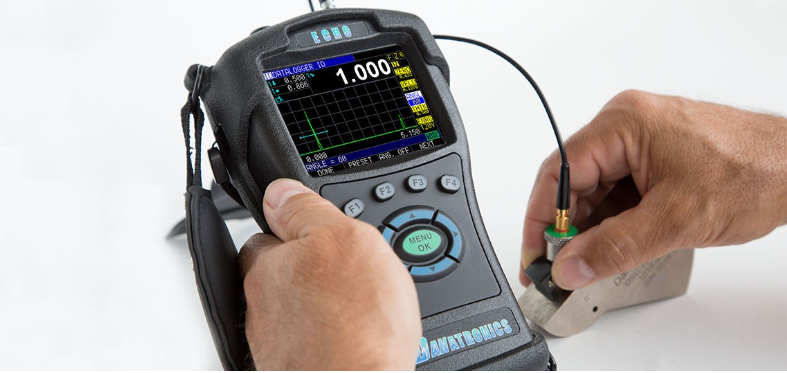

The DANATRONICS ECHO FD is a robust and intuitive portable ultrasonic flaw detector, engineered for precise and reliable non-destructive testing across a multitude of applications. Proudly made and designed in the USA, this instrument combines advanced functionality with a user-centric design for efficient and accurate inspections.
Featuring a 3.5” sunlight readable display with a customizable color palette, the ECHO FD ensures optimal visibility in any lighting condition. The instrument provides immediate and clear alerts with the option to change color and vibrate on alarm when critical thresholds are met.
Equipped with two independent gates, the ECHO FD enables precise measurement and evaluation of multiple ultrasonic signals simultaneously. Integrated software includes essential tools such as DAC (Distance Amplitude Correction) for accurate flaw sizing relative to depth, AWS (American Welding Society) for streamlined weld inspections, and API-5UE for specialized applications within the petroleum industry.
The Peak Memory function simplifies flaw characterization by capturing the maximum echo amplitude. With ample data storage capacity, offering 2 GB internal memory expandable up to 32 GB via micro SD card, the ECHO FD can store extensive inspection data. The integrated Datalogger allows for comprehensive recording of inspection parameters and readings, including B-scan imaging, with the convenience of exporting data to Excel for easy reporting and analysis.
A long-lasting 13-hour battery life ensures extended operation during demanding field inspections. The ECHO FD is further enhanced by a custom rubber boot that provides superior protection against impacts and harsh environments, along with a comfortable padded wrist strap and bail for secure and ergonomic handling.
Key Selling Points:
Bright and Clear 3.5” Sunlight Readable Color Display: Ensures excellent visibility in all environments.
Configurable Alarms with Visual and Haptic Feedback: Provides immediate alerts for critical indications.
Dual Independent Gates for Precise Evaluation: Enables simultaneous analysis of multiple signals.
Integrated Software for Key Industry Standards: Includes DAC, AWS, and API-5UE functionalities.
Peak Memory Simplifies Flaw Characterization: Captures maximum signal amplitude for easier analysis.
Large and Expandable Data Storage: 2 GB internal, expandable to 32 GB via micro SD card.
Comprehensive Datalogging with B-Scan Imaging and Excel Export: Facilitates efficient data management and reporting.
Extended 13-Hour Battery Life: Ensures prolonged operation in the field.
Rugged and Protective Design: Custom rubber boot enhances durability.
Ergonomic Handling: Padded wrist strap and bail provide comfort and security.
Quality Engineering: Proudly made and designed in the USA.
Benefits:
Enhanced Accuracy and Reliability of Inspections: Advanced features ensure dependable flaw detection and sizing.
Improved Efficiency and Workflow: Intuitive interface and data management tools streamline inspections.
Versatile Application Across Industries: Suitable for a wide range of materials and inspection needs.
Robust Performance in Demanding Environments: Durable design ensures longevity and reliability.
Simplified Data Analysis and Reporting: Comprehensive datalogging and export capabilities.
Extended Uptime in the Field: Long battery life minimizes interruptions.
Increased Operator Comfort and Reduced Fatigue: Ergonomic design promotes ease of use.
Applications:
The DANATRONICS ECHO FD Portable Ultrasonic Flaw Detector is an ideal solution for non-destructive testing across various sectors, including:
Critical weld inspection in construction and fabrication industries.
Corrosion assessment and thickness monitoring in oil and gas pipelines and vessels.
Detailed flaw detection in aerospace components and structures.
Quality assurance in manufacturing processes for diverse materials.
Inspection of castings, forgings, and other critical components.
General ultrasonic testing and evaluation in field and laboratory settings.
The DANATRONICS ECHO FD offers a powerful, reliable, and user-friendly solution for a wide range of ultrasonic flaw detection needs, combining advanced features with rugged durability and ease of use, all backed by quality American design and manufacturing.
