NM01DPM3

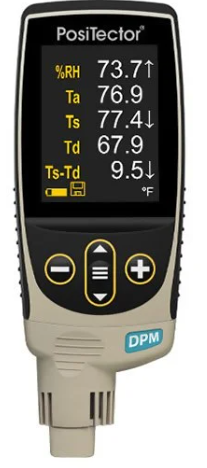

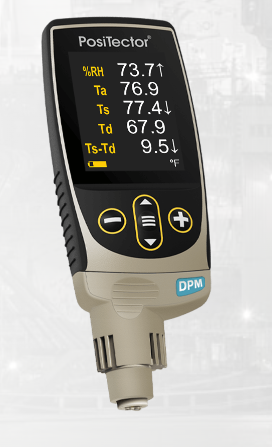

The Defelsko PosiTector DPM Integral Dew Point Meter, Advanced model, is a portable, handheld instrument designed for precise measurement and recording of environmental conditions critical for surface preparation and coating applications. This device is engineered to provide accurate readings of relative humidity, air temperature, surface temperature, dew point temperature, and the difference between surface and dew point temperatures (Ts-Td).

The "Advanced" model offers enhanced capabilities for data logging, analysis, and reporting, making it a valuable tool for professionals requiring detailed environmental monitoring. The "Integral" design incorporates the probe directly into the device, creating a compact and convenient instrument for field and laboratory use.

Key Features:

• Integrated Probe: Sensors for relative humidity, air temperature, and surface temperature are built into the device.

• Advanced Data Logging and Analysis:

  • Large memory capacity for storing measurement data.

  • Graphical display for trend visualization.

  • On-screen statistical analysis (average, minimum, maximum, standard deviation).

  • User-configurable HiLo alarms for out-of-range notifications.

  • USB data output for seamless data transfer to computers.

  • Software compatibility for comprehensive data analysis and reporting.

  • Date and time stamping of all readings.

• Automated Dew Point Calculation: Automatically calculates dew point temperature based on relative humidity and air temperature.

• Ts-Td Calculation: Automatically calculates the difference between surface and dew point temperatures, a key indicator of condensation risk.

• Durable and Rugged Design: Engineered for use in demanding industrial environments.

• User-Friendly Interface: Intuitive menu navigation and straightforward operation.

• Backlit Display: Ensures clear visibility in low-light conditions.

Applications:

• Surface Preparation Monitoring: Ensuring optimal environmental conditions prior to painting or coating applications to prevent condensation and promote proper adhesion.

• Coating Application Monitoring: Maintaining controlled environmental conditions during coating application for optimal performance.

• Industrial Environmental Monitoring: Assessing environmental conditions in various industrial settings.

• Quality Control: Verifying compliance with environmental specifications.

• Corrosion Prevention: Monitoring environmental parameters to minimize the risk of condensation-related corrosion.
