NM01T1023200

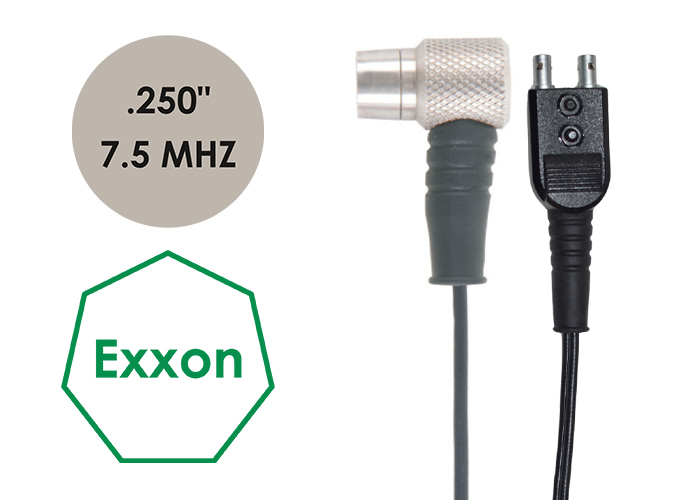

The Dakota NDT 7.5 MHz Dual Element Transducer is a versatile ultrasonic transducer featuring a 1/4 inch diameter element, a durable potted cable, and a convenient side cable entry. This transducer operates at a frequency of 7.5 MHz, providing a balanced combination of penetration and resolution suitable for a wide range of material testing applications.

The dual element design incorporates separate transmitting and receiving crystals that are internally angled to optimize the focus of the ultrasonic beam in the near-surface region. This configuration enhances the detection of small defects and improves the accuracy of thickness measurements, particularly in challenging materials or at elevated temperatures (depending on the specific model's temperature rating). The potted cable ensures a robust and environmentally sealed connection, guaranteeing reliable performance in demanding industrial environments. The side-entry cable configuration is a practical design that keeps the cable neatly routed during scanning procedures.

Key Selling Points:

• Versatile 7.5 MHz Frequency: Offers a good balance of penetration and resolution for various materials.

• Enhanced Near-Surface Resolution: The dual element design improves detection of small flaws and accurate measurement of thin materials.

• Robust Potted Cable with Side Entry: Provides a durable and environmentally sealed connection with convenient cable routing.

• Reliable Performance: Engineered for consistent and accurate ultrasonic testing.

• Suitable for a Range of Materials: Effective for inspecting steels, aluminum, glass, and thin plastics.

Benefits:

• Accurate Thickness Measurements: Provides reliable readings in a variety of materials.

• Improved Detection of Small Discontinuities: Enhances the ability to identify subtle flaws, particularly near the surface.

• Durable and Reliable in Industrial Environments: The potted cable ensures a long service life in demanding conditions.

• Convenient Handling During Inspections: The side-entry cable design keeps the cable out of the way.

• Wide Range of Applications: Suitable for various ultrasonic testing needs.

Approximate Dimensions (inches):

• Tip Diameter: 0.25 inches (1/4")

• Overall Length (excluding cable): Approximately 1 to 2 inches (This can vary slightly depending on the specific model).

• Body Diameter: Approximately 0.5 to 1 inch (This can vary slightly depending on the specific model).

• Cable Length: Typically 4 feet (48 inches), but can vary.

• Cable Entry: Side

Applications:

• Thickness gauging of various materials, including metals, plastics, and composites.

• Inspection of welds for porosity, inclusions, and other defects.

• Corrosion mapping and material degradation assessment.

• Bond testing and delamination detection.

• General-purpose ultrasonic testing in manufacturing, maintenance, and quality control.
