NM01ULTOFD56MMC

Premium NDT Solution: All-in-One TOFD Kit for Advanced Weld Inspection

This is an all-inclusive, professional-grade kit for Time-of-Flight Diffraction (TOFD), a powerful ultrasonic inspection method. It is designed to equip NDT technicians and welding inspectors with a complete, field-ready solution for the highly accurate detection and sizing of flaws in welds and materials. Each component has been carefully selected to ensure optimal performance, durability, and versatility, all securely protected within a rugged High-Density Polyethylene (HDPE) case.

High-Performance Transducer for Unmatched Accuracy

At the heart of this kit is a precision-engineered 2.25 MHz TOFD transducer. This frequency represents the gold standard for weld inspection, providing an ideal balance between deep sound wave penetration and high resolution. This allows you to effectively inspect a wide range of material thicknesses while still being able to pinpoint and differentiate even the smallest defects. The transducer's 6mm element is specifically chosen for the TOFD technique, generating a broad, unfocused beam that ensures reliable acoustic coverage of the inspection area and provides the necessary data for accurate flaw sizing. A robust Microdot (MD) connector provides a secure, low-profile connection that is both reliable and well-suited for high-frequency signal transmission.

Versatile Wedge Set for Comprehensive Coverage

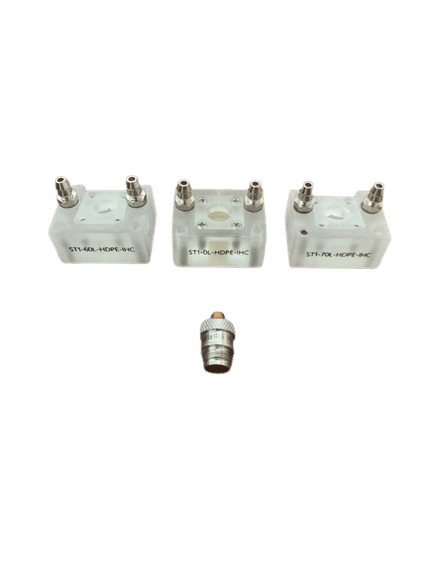

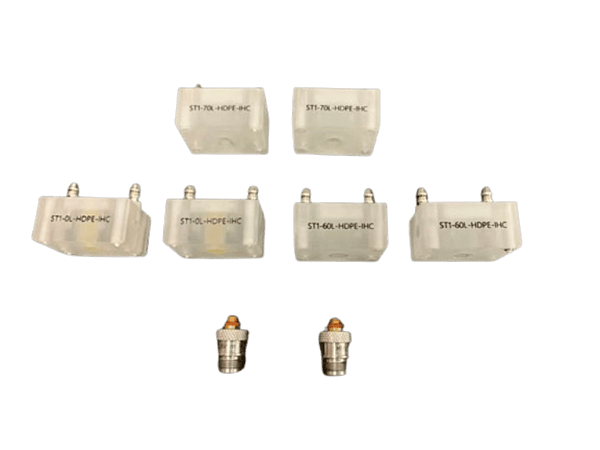

A key advantage of this kit is its complete set of three precision-machined wedges. These are essential for converting the transducer's longitudinal wave into angled shear waves, allowing you to adapt to virtually any inspection requirement.

• 0-Degree Wedge (Straight Beam): This wedge is used for a straight-on, compression-wave inspection. It's an indispensable tool for preliminary scans to detect lamination or lack of fusion.

• 60-Degree Wedge: This is the industry-standard angle for shear wave TOFD inspection. It's ideal for scanning the main volume of a weld to accurately locate and size flaws like cracks and porosity.

• 70-Degree Wedge: A steeper angle that is crucial for detecting flaws located very close to the top and bottom surfaces of the weld, ensuring a complete and thorough inspection that might be missed by shallower angles.

By including these three wedges, the kit provides unparalleled flexibility, allowing you to use the same transducer for multiple inspection angles and techniques.

Unparalleled Durability with HDPE Case

This entire kit is housed in a purpose-built High-Density Polyethylene (HDPE) case. HDPE is a top-tier material for protective equipment, renowned for its exceptional impact and chemical resistance. This lightweight yet incredibly strong case ensures your sensitive NDT instruments are shielded from the rigors of transportation and harsh industrial environments. Its robust construction provides peace of mind, knowing that your tools are safe from drops, impacts, dust, and moisture.

Ideal Applications

This kit is a complete solution for professionals specializing in:

• Advanced Weld Inspection: Accurate sizing and detection of flaws in butt welds, fillet welds, and other weld types.

• Pipeline Integrity: In-service inspection of oil and gas pipelines for internal cracking or corrosion.

• Power Generation & Aerospace: Critical component inspection where precision and reliability are non-negotiable.

• Quality Assurance & Manufacturing: Ensuring the integrity of castings, forgings, and other fabricated components.

With this all-in-one TOFD kit, you gain a powerful combination of precision, durability, and versatility, enabling you to conduct professional, code-compliant inspections with confidence.
