NM01UCIL

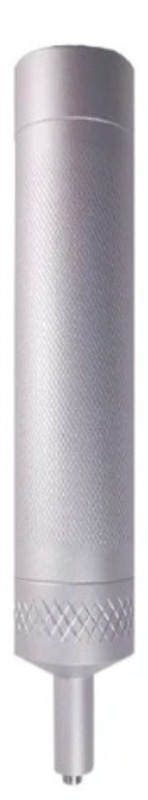

Unlocking Hardness in Tight Spaces: ADELIX Sensor UCI-L (50 N Test Load)

Discover a new level of precision and accessibility for your Ultrasonic Contact Impedance (UCI) hardness testing with the ADELIX Sensor UCI-L. Specifically engineered to overcome the challenges of measuring hardness in hard-to-reach areas, on intricate geometries, and within confined spaces, this specialized sensor is an indispensable tool for quality control and material assessment where conventional probes fall short.

Designed for Challenging Access and Accurate Results:

• "L" Designation for Extended Reach: The "L" in UCI-L typically signifies a long or slender probe design, making it exceptionally well-suited for accessing difficult locations such as:

  • Internal surfaces of pipes and tubes.

  • Grooves, slots, and gear teeth.

  • Component areas with limited clearance or complex geometries.

  • Weld seams in tight corners.

• Optimal 50 N (5 Kgf) Test Load: This sensor is designed to apply a 50 Newton (approximately 5 kgf) test load. This is a common and highly effective force for UCI hardness testing, providing:

  • Robust and Repeatable Readings: Sufficient load to ensure good contact and consistent indentations for reliable measurements.

  • Versatile Material Range: Suitable for a broad spectrum of materials, from soft metals to very hard steels, ensuring accuracy across various applications.

• Non-Destructive & Minimal Indentation: The UCI method is known for creating an extremely small, almost invisible indentation. This makes the ADELIX UCI-L sensor ideal for finished products, polished surfaces, or components where minimal surface marking is critical.

• Wide Hardness Measurement Range: Compatible with ADELIX UCI hardness testers, this sensor enables measurements across various standard hardness scales, including HRC (Rockwell C), HV (Vickers), HB (Brinell), HRB (Rockwell B), and HRA (Rockwell A), providing comprehensive material characterization. (Note: "50 H" likely refers to a specific hardness value or a common test point within its measurement range, rather than a limitation, indicating its capability for robust measurements).

• High Precision and Repeatability: Leveraging the UCI principle, the sensor measures the impedance changes of an oscillating rod as its diamond indenter penetrates the material, providing highly accurate and repeatable hardness readings.

• Durable and Reliable Construction: Built to withstand demanding industrial environments, ensuring consistent performance and a long operational lifespan for critical NDT applications.

• Seamless Integration: Designed to connect directly to compatible ADELIX UCI hardness testing main units, providing a complete and efficient testing solution.

The ADELIX Sensor UCI-L is the ultimate solution for NDT professionals and quality control engineers who require precise, reliable, and accessible hardness measurements on components with challenging geometries or limited access.
