NM01SPG1

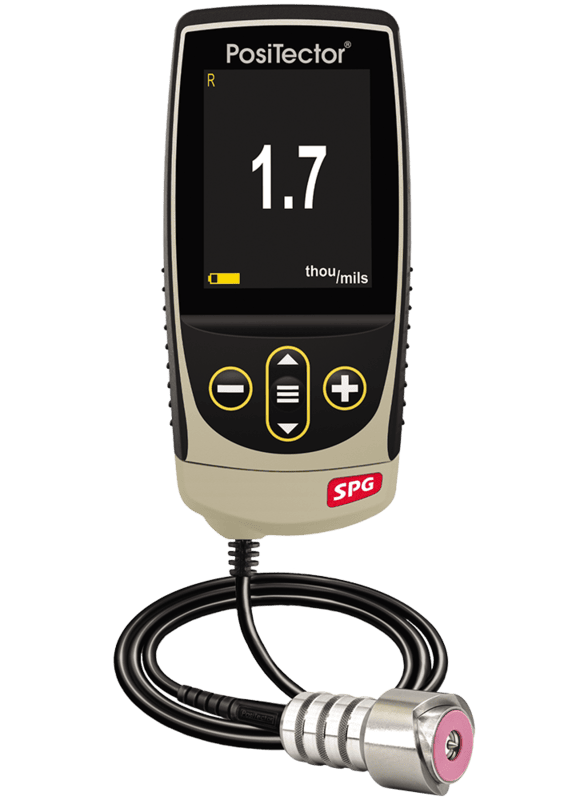

The DeFelsko SPGOS1-G PosiTector SPG OS1 Standard Surface Profile Gage is a digital depth micrometer specifically designed for accurately measuring and recording the peak-to-valley surface profile height on blasted steel surfaces, pipes, and tanks with an OD above 3mm (0.125”). With a measurement range from 0 to 500 μm (0-20 mils), it provides critical data for surface profile assessment in various industrial applications.

Engineered for durability and accuracy, this gage conforms to ASTM D4417-B, AS 3894.5-C (with optional 30° tip), U.S. Navy NSI 009-32, and SANS 5772 standards, ensuring precise and compliant measurements in any setting.

Key Features:

• Range: 0 to 500 μm (0-20 mils) peak-to-valley surface profile height

• Accuracy: Certificate of Calibration traceable to PTB

• Standards Compliance: ASTM D4417-B, AS 3894.5-C, U.S. Navy NSI 009-32, SANS 5772

• Construction: Alumina wear face and tungsten carbide tip, IP65-rated for weather, dust, and water resistance

• Display: 2.8" impact-resistant color touchscreen

• Measurement Rate: Over 50 readings per minute

Kit Contents:

• PosiTector Standard Gage Body (BDYSTD-G)

• PosiTector SPGOS E Probe (PRBSPGOSE)

• Glass zero plate and metal check shim

• Protective rubber holster with belt clip

• Wrist strap, protective lens shield, and 3 AAA batteries

• PosiSoft Software and USB cable for data transfer

• Nylon carrying case, instructions, and 2-year warranty on gage body and probe

Applications: Suitable for blasted steel, textured coatings, concrete, and other surfaces in construction, automotive, maritime, and industrial applications, this device enhances productivity and measurement consistency in field or shop environments.

User Manual
