SCANRAY® 2532 — Portable Wireless Digital Radiography System
Complete Field Package | SKU: SCANRAY2532
Overview
The SCANRAY® 2532 is a versatile, mid-format portable wireless digital radiography (DR) system and the most popular model in the SCANRAY Regular series. Engineered by DR Systems for a wide range of industrial inspection environments, the 2532 strikes the ideal balance between active imaging area and portability — delivering a large 10.0 × 12.5 inch detection surface in a robust, field-ready package that goes wherever the job demands.
With twice the active area of the 1230 model, the SCANRAY® 2532 is the go-to choice for inspectors who need to cover more surface area per exposure — reducing the number of shots required, accelerating inspection throughput, and lowering overall inspection costs without sacrificing image quality. Everything required to begin performing digital radiographic inspections is included straight out of the box.

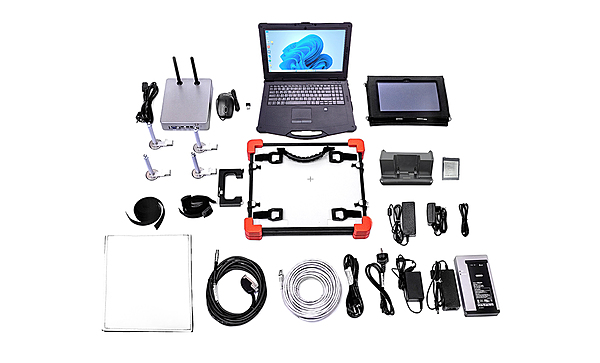

What's Included
| Item | Details |
|---|---|
| SCANRAY® 2532 Digital Flat-Panel Detector | Core detection unit |
| Universal Protective Cover | Drop protection up to 2 m (6.6 ft) |
| Detachable Detector Handle | Ergonomic field handling |
| Magnetic Holders | Fast detector positioning on ferrous surfaces |
| Lashing Straps | Secure detector placement on non-magnetic objects |
| Calibration Steel Plate | For calibration and image quality verification |
| 2 Sets of Batteries + Charger | Enables continuous 24/7 inspection capability |
| Ruggedized Laptop | Pre-installed with DR-SOFT® software |
| Ruggedized Tablet | Pre-installed with DR-SOFT® software |
| Tablet Docking Station | With extra battery for extended tablet operation |
| Additional Wi-Fi Module | Extended wireless range for remote operator positioning |
| Heat-Resistant Blanket | Enables inspection of hot objects up to 250°C (482°F) |
| Computer Mouse | For laptop/desktop software operation |
| Wire Set | Connection cables and accessories |
| Transportation Case | Ruggedized case for safe transport of all components |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Metric | Imperial |
|---|---|---|
| Length | 914 mm | 36.0 in |
| Width | 711 mm | 28.0 in |
| Height | 508 mm | 20.0 in |
| Dimensions (L × W × H) | 914 × 711 × 508 mm | 36.0 × 28.0 × 20.0 in |
| Weight | 34.9 kg | 77.0 lb |
Key Detector Specifications
| Parameter | SCANRAY® 2532 |
|---|---|
| Series | Regular |
| Scintillator | Gadox / CsI |
| Pixel Pitch | 124 µm |
| Active Image Area | 254 × 317 mm (10.0 × 12.5 in) |
| Pixel Matrix | 2048 × 2560 pixels |
| Grayscale Depth | 16-bit |
| Wireless Connectivity | Wi-Fi IEEE 802.11n/ac |
| Automatic Exposure Detection (AED) | Yes — built-in radiation sensor |
| Internal Memory | Yes — stores images if wireless connection is lost |
| Battery Life | Up to 7 hours per set |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
| Ingress Protection | IP67 — fully dustproof and waterproof |
| Image Format | DICONDE — protected digital format |
Regular Series — The Workhorse of the SCANRAY Lineup
The SCANRAY® 2532 is the most widely deployed model in the Regular series, offering the best combination of active area coverage and field portability for general-purpose industrial NDT. Its 124 µm pixel pitch delivers excellent image quality for the vast majority of weld inspection, corrosion survey, and quality control applications.
| SCANRAY Series | Pixel Pitch | Best For |
|---|---|---|
| Regular (1230, 2532 — This Product, 3643) | 124 – 140 µm | General weld and corrosion inspection |
| PRO (2530, 3643) | 99 µm | Enhanced detail in demanding QC applications |
| Ultra (1723, 2329) | 75 µm | Maximum resolution for precision inspection |
With a 254 × 317 mm (10.0 × 12.5 in) active area — double that of the 1230 — the 2532 significantly reduces the number of exposures required to cover a given inspection area, directly improving productivity and reducing radiation exposure time for inspection teams.
DR-SOFT® Software
The SCANRAY® 2532 ships with DR-SOFT® pre-installed on both the included ruggedized laptop and ruggedized tablet. DR-SOFT® is DR Systems' proprietary radiographic image acquisition and evaluation software, designed to deliver a fast and intuitive inspection workflow directly in the field. Key capabilities include:
- Real-time image display immediately after each exposure
- Image enhancement, annotation, and measurement tools
- DICONDE-format image storage for secure archiving and remote transmission
- Immediate post-exposure evaluation — no darkroom, no waiting, no film processing
- Remote image transmission to a separate evaluation station for multi-site workflows
System Highlights
True Plug-and-Play Inspection The comprehensive package contents mean inspectors can begin working immediately upon arrival on site — no separate software licensing, no missing accessories, no sourcing compatible hardware.
Maximum Coverage Per Exposure The 2532's large 10.0 × 12.5 inch active area captures more of the inspection surface in a single shot — reducing total exposure count, speeding up inspections, and minimizing radiation dose to personnel.
Wireless Operation Images are transmitted in real-time from the detector to the operator's tablet or laptop via Wi-Fi, allowing the operator to remain safely outside the radiation exclusion zone during exposure. An additional Wi-Fi module is included to extend wireless range in challenging environments.
24/7 Continuous Inspection Two full sets of batteries with charger ensure uninterrupted operation across extended inspection campaigns or multi-shift production environments.
Drop and Impact Protection The included universal protective cover protects the detector from accidental drops of up to 2 meters (6.6 feet) — a critical safeguard in active industrial environments.
High-Temperature Inspection The included heat-resistant blanket allows the detector to be used on hot objects up to 250°C (482°F) without any cooling period — reducing downtime in high-temperature process plant environments.
Zero Data Loss The detector's internal memory stores images locally when the wireless connection to the operator's station is interrupted. No images are ever lost during a working shift.
Compatible with All Radiation Sources The SCANRAY® 2532 works with constant-potential, half-sine, and pulsed X-ray generators, as well as gamma radiation sources of varying activity levels.
Compliance & Standards
The SCANRAY® 2532 fully meets the requirements of the following international NDT standards:
- ISO 17636-2 — Non-destructive testing of welds: Radiographic testing (Digital detectors)
- ASTM E2698 — Standard Practice for Radiological Examination Using Digital Detector Arrays
- ASME Boiler & Pressure Vessel Code — Section V, Article 2
Ideal Applications
- General purpose weld inspection in oil & gas, petrochemical, and power generation
- Corrosion mapping of pressure vessels, storage tanks, and piping
- Shipbuilding and offshore structure inspection
- High-throughput production radiography requiring large area coverage per shot
- In-service inspection of insulated and operating equipment
- Any application where inspection speed and area coverage are the primary priorities
About DR Systems
DR Systems is an internationally recognized developer and manufacturer of advanced digital radiography systems for industrial NDT. Headquartered in Seoul, Republic of Korea, DR Systems' SCANRAY® platform is trusted by inspection teams and NDT contractors across the oil & gas, aerospace, shipbuilding, and defense sectors worldwide.
