NM01UCIS

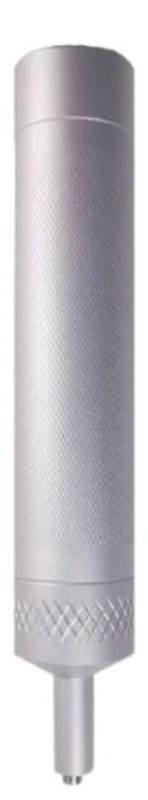

Specialized Hardness for Coatings: ADELIX Sensor UCI-S (10 N Test Load)
Achieve precise and non-destructive hardness control of electroplated and thin coatings with the ADELIX Sensor UCI-S. Specifically engineered for the delicate yet critical task of assessing the hardness of chrome, copper, tin, nickel, zinc, and other electroplated layers, this specialized Ultrasonic Contact Impedance (UCI) sensor from ADELIX is an essential tool for quality assurance in plating operations.
Designed for Thin Layers and Sensitive Applications:
"S" Designation for Surface/Small Load: The "S" in UCI-S typically signifies a smaller, more sensitive probe designed for surface applications and thinner layers, or one that applies a smaller test load. This makes it ideal for:
Electroplated coatings (chrome, copper, tin, nickel, zinc).
Thin-walled components.
Surfaces where minimal indentation is absolutely critical.
Micro-Load 10 N (1 Kgf) Test Load: This sensor is designed to apply a 10 Newton (approximately 1 kgf) test load. This very light load is crucial for:
Accurate Coating Hardness: Ensures that the indentation primarily assesses the hardness of the coating itself, minimizing influence from the substrate material.
True Non-Destructive Testing: Creates an exceptionally small, often imperceptible, indentation, preserving the integrity and aesthetic of the finished surface.
Sensitive Material Compatibility: Ideal for softer coatings or those applied to sensitive substrates.
Non-Destructive & Traceable Indentation: The UCI method is renowned for creating an extremely small, almost invisible indentation. This is paramount when testing decorative or functional coatings where any visible mark would be unacceptable.
Wide Hardness Measurement Range: Compatible with ADELIX UCI hardness testers, this sensor enables measurements across various standard hardness scales, including HV (Vickers), HRC (Rockwell C), HRB (Rockwell B), and others, providing comprehensive material characterization of the coating. (Note: "10 H" likely refers to a specific hardness value or a common test point within its measurement range, indicating its capability for precise measurements at lower loads).
High Precision and Repeatability: Leveraging the UCI principle, the sensor measures the impedance changes of an oscillating rod as its diamond indenter penetrates the material. This provides highly accurate and repeatable hardness readings even on thin layers.
Durable and Reliable Construction: Built to withstand demanding industrial environments while maintaining the precision required for sensitive coating analysis, ensuring consistent performance and a long operational lifespan.
Seamless Integration: Designed to connect directly to compatible ADELIX UCI hardness testing main units, providing a complete and efficient testing solution for coating quality control.
The ADELIX Sensor UCI-S is the indispensable solution for quality control engineers, plating specialists, and NDT professionals who require precise, reliable, and truly non-destructive hardness measurements specifically for electroplated and thin coatings, ensuring product quality and performance.
