Fujifilm — Industrial X-Ray Film IX80XD

Overview

Fujifilm Industrial X-Ray Film IX80XD is a professional radiographic film designed for non-destructive testing applications requiring high image detail, strong contrast, and dependable inspection records. It is suitable for examining welds, castings, pipelines, pressure components, aerospace parts, and other industrial materials using compatible X-ray or gamma-ray sources.

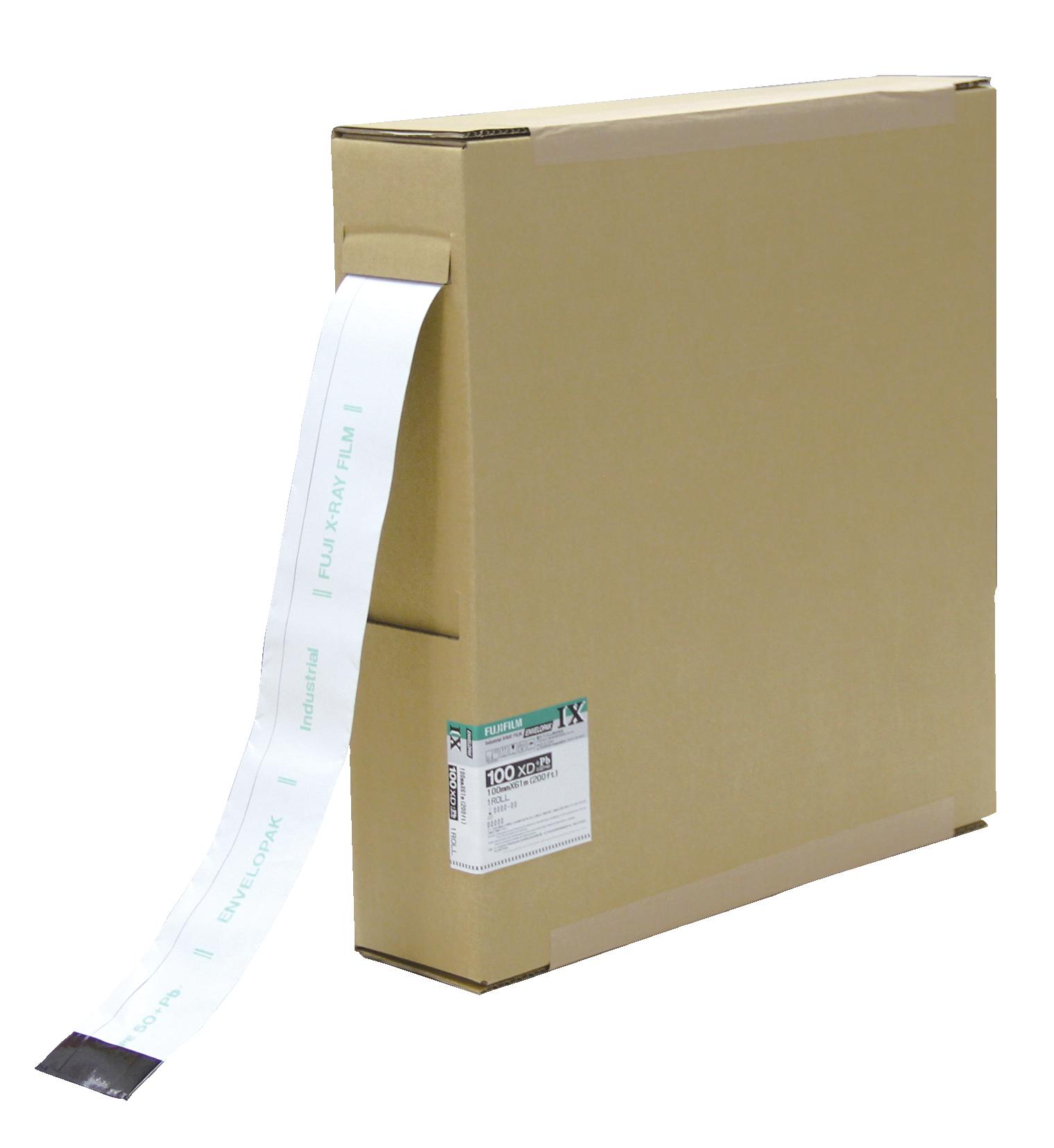

The 70 mm × 290 m continuous-roll configuration allows technicians to cut film to the required length according to the component geometry, cassette arrangement, exposure setup, and written radiographic procedure. Its narrow 70 mm width is particularly practical for pipeline welds, circumferential joints, long weld seams, and other elongated inspection areas.

With its extended 290 m roll length, SKU 16779172 is well suited for production environments, high-volume radiographic departments, pipeline projects, and inspection teams that require a large continuous supply of film.

What's Included

Note: Film cassettes, lead intensifying screens, processing chemicals, cutting tools, identification markers, and darkroom accessories are not included unless specified separately.

Box Dimensions & Shipping Weight (Estimated)

Actual shipping dimensions and weight may vary according to the manufacturer’s protective packaging and distribution configuration.

Key Specifications

Performance Features

Very-Fine-Grain Film Structure
Supports detailed radiographic imaging and the evaluation of small internal discontinuities.

High-Contrast Imaging
Provides clear density separation to help inspectors identify relevant indications and component features.

70 mm Narrow-Roll Format
Well suited for pipelines, circumferential welds, structural joints, and elongated inspection areas.

290 m Extended Roll Length
Provides a large film supply for high-volume inspection departments and long-term radiographic projects.

Custom-Length Preparation
Allows technicians to cut film according to the exact cassette size, weld length, component geometry, or exposure arrangement.

Permanent Inspection Record
Processed film provides a physical radiographic image that can be evaluated, documented, archived, and reviewed.

User-Friendly Design

• Continuous roll supports custom film-length preparation

• Narrow 70 mm width is practical for pipeline and weld inspection

• Extended 290 m roll reduces the frequency of film replacement

• Suitable for production and high-volume radiography workflows

• Can be loaded into compatible flexible or rigid film cassettes

• Supports use with appropriate lead intensifying screens

• Compatible with manual and automatic processing procedures

• Provides permanent physical inspection documentation

Built for Industrial Environments

• Designed for professional non-destructive testing

• Suitable for fabrication, construction, manufacturing, energy, and maintenance

• Practical for field and laboratory radiographic inspection

• Supports examination of welds, castings, forgings, and structural components

• Long-roll configuration supports repetitive and production-level inspections

• Suitable for asset-integrity and industrial QA/QC programs

• Must be protected from visible light and unintended radiation exposure

• Intended for use according to approved radiographic and radiation-safety procedures

Film Handling and Processing

• Store unopened film in a cool, dry, radiation-controlled location

• Protect the roll from excessive heat, humidity, pressure, and chemical vapors

• Open, cut, and load the film only under approved darkroom or safelight conditions

• Handle the film carefully to avoid fingerprints, scratches, creases, and pressure marks

• Cut the required film length using clean tools intended for darkroom use

• Load the film into a compatible cassette or film holder

• Use approved manual or automatic processing chemistry

• Maintain the required development time, temperature, and replenishment rate

• Wash and dry processed film thoroughly before evaluation

• Store completed radiographs according to applicable record-retention requirements

Compatibility

Compatible with:

• Industrial X-ray inspection systems

• Suitable gamma-ray radiography sources

• Flexible radiographic film cassettes

• Rigid film holders

• Lead intensifying screens

• Radiographic identification markers

• Manual film-processing tanks

• Automatic industrial film processors

• Compatible developer and fixer chemistry

• Film viewers and densitometers

• Pipeline and weld radiography workflows

• Industrial radiographic documentation systems

Exposure conditions, source type, screen selection, processing chemistry, and required image quality should be established according to the applicable inspection procedure.

Ideal Applications

• Pipeline weld inspection

• Circumferential weld radiography

• Structural weld inspection

• Long-seam weld inspection

• Pressure-vessel inspection

• Storage-tank inspection

• Casting and forging evaluation

• Boiler and heat-exchanger inspection

• Aerospace component radiography

• Power-generation equipment inspection

• Fabrication QA/QC

• High-volume production radiography

• Maintenance and asset-integrity inspection

• Internal discontinuity detection

• Permanent radiographic documentation

Safety and Handling

• Industrial radiography must be performed by trained and authorized personnel

• Establish controlled areas and radiation boundaries before exposure

• Use approved survey meters and personal dosimetry

• Prevent unauthorized personnel from entering the exposure area

• Protect unexposed film from radiation sources and visible light

• Wear suitable protective equipment when handling processing chemicals

• Follow applicable chemical safety documentation

• Dispose of exhausted processing solutions according to applicable requirements

• Store film away from heat, moisture, pressure, and chemical contamination

• Follow all applicable radiation-protection procedures and regulations

About Fujifilm

Fujifilm develops imaging products and materials for industrial radiography, medical imaging, photography, electronics, and specialized technical applications. Its industrial radiographic films support non-destructive testing teams working in fabrication, manufacturing, energy, construction, transportation, aerospace, maintenance, and quality control.
