NM01L118

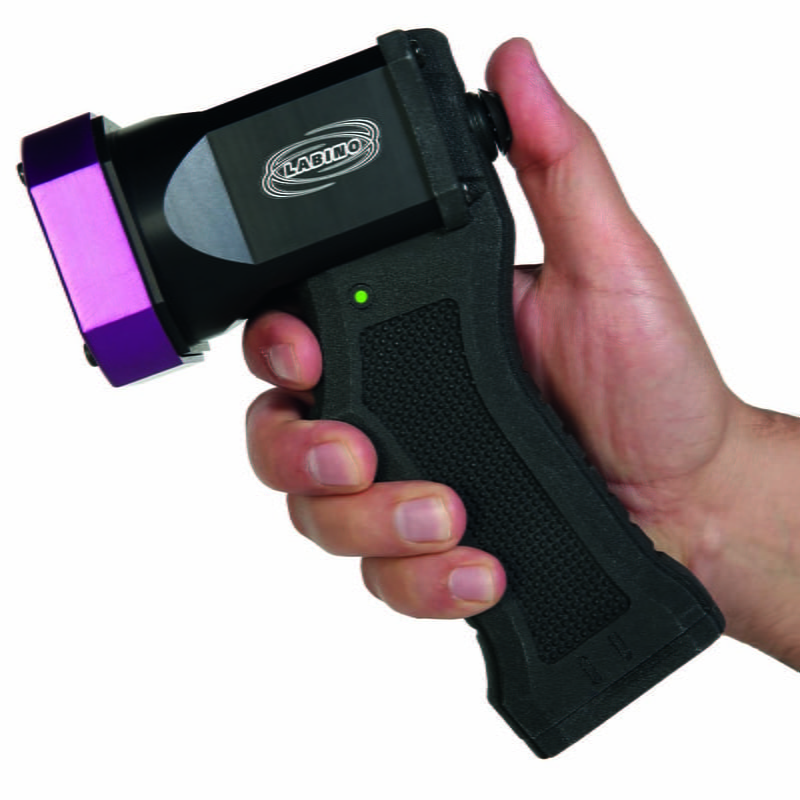

The Labino MB 3.0 UV ZEUS (Battery) is a powerful and versatile handheld UV-A LED inspection lamp designed for demanding industrial applications requiring both high-intensity UV-A illumination and the convenience of cordless operation with an integrated white light. This battery-powered unit offers exceptional portability and flexibility for non-destructive testing (NDT) and general inspection purposes.
The MB 3.0 ZEUS emits a peak wavelength of 365 nm, optimal for exciting fluorescent indicators used in magnetic particle and penetrant testing. It generates a nominal intensity of approximately 4,500 μW/cm² at a distance of 38 cm (15 inches), ensuring excellent fluorescence response for clear indication detection. The beam size producing intensity above 1,000 μW/cm² has a diameter of approximately 8 inches (20 cm).
A key feature of the MB 3.0 ZEUS is its integrated white light LED, which allows for convenient post-inspection viewing of the test surface without the need for a separate light source. The battery-powered design provides freedom of movement and eliminates the constraints of power cords. The lamp features a robust construction that is IP68 waterproof and penetrant resistant, ensuring durability in challenging working environments. The lightweight design (approximately 832 grams / 1.8 lbs including the battery) and ergonomic pistol grip contribute to comfortable use during extended inspections.
Key Selling Points:
Battery Powered for Portability: Offers cordless operation for maximum flexibility in various inspection locations.
Optimal 365 nm UV-A Output: Effectively excites fluorescent indicators for NDT.
High Intensity UV-A (4,500 μW/cm² at 15 inches): Provides strong UV-A for clear flaw detection.
Integrated White Light LED: Facilitates convenient post-inspection viewing.
Wide UV-A Beam Coverage (8 inches at >1,000 μW/cm²): Enables efficient inspection of larger areas.
Rugged and Durable Design (IP68): Waterproof and penetrant resistant for demanding environments.
Lightweight and Ergonomic: Comfortable for extended use.
Complies with Industry Standards: Meets requirements such as ASTM E3022-18 and ISO 3059-12 (depending on the specific configuration and certifications).
Benefits:
Unrestricted Movement: Battery power allows for inspection in hard-to-reach areas without power outlets.
Effective Flaw Detection: High-intensity UV-A reveals even subtle indications.
Increased Inspection Efficiency: Wide UV-A beam covers more area quickly, and the integrated white light streamlines the inspection process.
Durability in Harsh Environments: Robust design minimizes downtime and replacement costs.
User Comfort: Lightweight and ergonomic design reduces operator fatigue.
Applications:
The Labino MB 3.0 UV ZEUS (Battery) is ideal for various inspection applications where portability is crucial, including:
Fluorescent Penetrant Testing (FPT) in the field
Magnetic Particle Testing (MPT) on large structures
Quality control in manufacturing areas with limited access to power
Aerospace inspections on aircraft wings and fuselages
Automotive inspections in repair shops and on assembly lines
General industrial NDT requiring mobile operation with both UV-A and white light.
