NM01PHS092

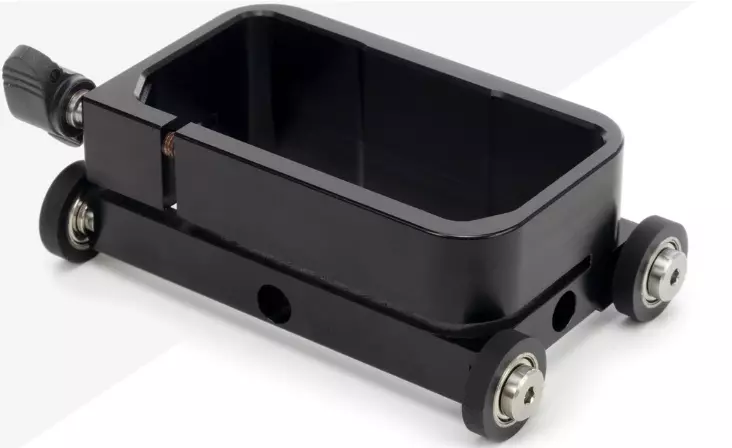

The Jireh HydroFORM Cart - 2nd Generation is a sophisticated, automated ultrasonic inspection system designed for efficient and reliable non-destructive testing (NDT) of pipelines and other cylindrical structures. This advanced system leverages HydroFORM technology to provide consistent coupling and high-quality data acquisition, significantly enhancing the accuracy and speed of inspections.

Key Features and Benefits:

• HydroFORM Technology:

  • Utilizes a water column to establish consistent coupling between the ultrasonic transducers and the pipe surface, eliminating the variability associated with manual couplant application.

  • Ensures uniform and reliable ultrasonic signal transmission, leading to more accurate and repeatable inspection results.

• 2nd Generation Enhancements:

  • Incorporates improvements based on user feedback and technological advancements, resulting in enhanced performance, durability, and user-friendliness.

  • May include features such as improved scanning mechanisms, enhanced data acquisition capabilities, and optimized ergonomic design.

• Automated Scanning System:

  • Automates the scanning process, reducing operator fatigue and increasing inspection speed.

  • Provides precise and repeatable scanning patterns, ensuring comprehensive coverage of the inspection area.

• Adjustable and Versatile Design:

  • Designed to accommodate a wide range of pipe diameters, offering versatility for various inspection applications.

  • Adjustable components allow for easy setup and configuration to match specific inspection requirements.

• High-Quality Data Acquisition:

  • Integrates seamlessly with industry-leading ultrasonic testing equipment, enabling accurate and reliable data acquisition.

  • Provides detailed information about corrosion, wall thinning, and other defects, facilitating informed decision-making.

• Rugged and Durable Construction:

  • Built to withstand the demanding conditions of field use, ensuring long-term reliability and performance.

  • Constructed from high-quality materials to resist corrosion and wear.

Applications:

• Oil and Gas Pipelines:

  • Inspecting pipelines for corrosion, cracks, and other defects to ensure safe and reliable operation.

• Storage Tanks:

  • Inspecting the walls of cylindrical storage tanks for corrosion and wall thinning.

• Industrial Piping Systems:

  • Inspecting pipes in various industrial settings, including chemical processing plants and power generation facilities.


Compatible with:

• NAVIC - Corrosion Mapping Scanner

• SKOOT - Corrosion Mapping Scanner

• ROTIX - Corrosion Chain Scanner

• STIX - Magnetic Corrosion Scanner

• MOTIX - Corrosion Mapping Scanner

• TERAX - Base Crawler

The original HydroFORM Cart is also available for legacy HydroFORMs.
