NM01B200

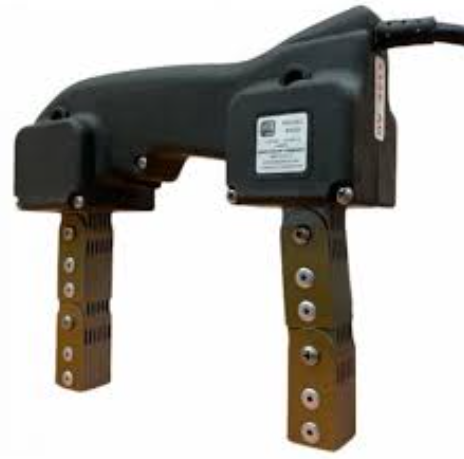

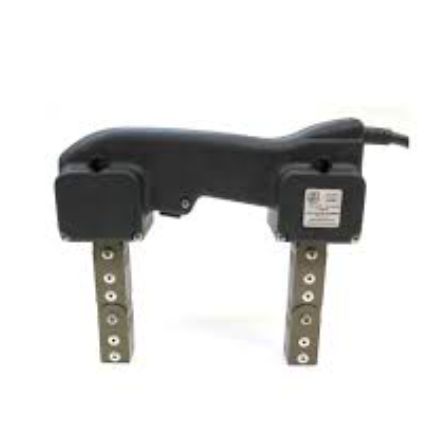

The Parker B-200 Magnetic Yoke is a high-performance, AC-powered electromagnetic yoke designed for non-destructive testing (NDT) using the magnetic particle inspection (MPI) method. This portable and durable yoke generates a strong alternating current (AC) magnetic field, making it ideal for detecting surface and near-surface defects in ferromagnetic materials.

With its lightweight yet rugged design, the B-200 provides superior maneuverability, allowing operators to inspect components in various positions and orientations. It is widely used in industries such as aerospace, automotive, oil & gas, construction, and manufacturing to ensure structural integrity and defect-free metal components.

Key Features & Benefits:

• Powerful AC Magnetic Field – Provides excellent sensitivity for detecting surface cracks and defects.

• Lightweight & Ergonomic Design – Ensures operator comfort during prolonged use.

• Rugged & Durable Construction – Built for industrial environments and harsh working conditions.

• Adjustable Leg Spacing – Offers flexibility to inspect components of various shapes and sizes.

• Easy One-Hand Operation – Simple on/off switch for quick activation and testing.

• 115V AC Power Supply – Compatible with standard electrical outlets, ensuring convenient use in workshops and field applications.

• Compliant with Industry Standards – Meets ASTM E709 and ASME Section V standards for magnetic particle inspection.

Applications:

The Parker B-200 Magnetic Yoke is widely used in:

• Aerospace – Inspecting aircraft structures and engine components.

• Automotive & Manufacturing – Checking welds, castings, and machined parts for defects.

• Oil & Gas Industry – Evaluating pipelines, pressure vessels, and drilling equipment.

• Construction & Infrastructure – Assessing the integrity of steel structures, bridges, and cranes.

• Power Generation – Inspecting turbines, rotors, and heavy-duty power plant components.

Technical Specifications:

• Model: Parker B-200

• Power Supply:115V AC

• Magnetic Field Type:Alternating Current (AC)

• Leg Span: Adjustable up to 10 inches (for accommodating various part sizes)

• Weight: Approx. 6–7 lbs

• Standards Compliance: ASTM E709, ASME Section V

Package Contents:

• Parker B-200 Magnetic Yoke (115V AC)

• Power Cord

• Instruction Manual
