NM0110L3299X7A10P25OM

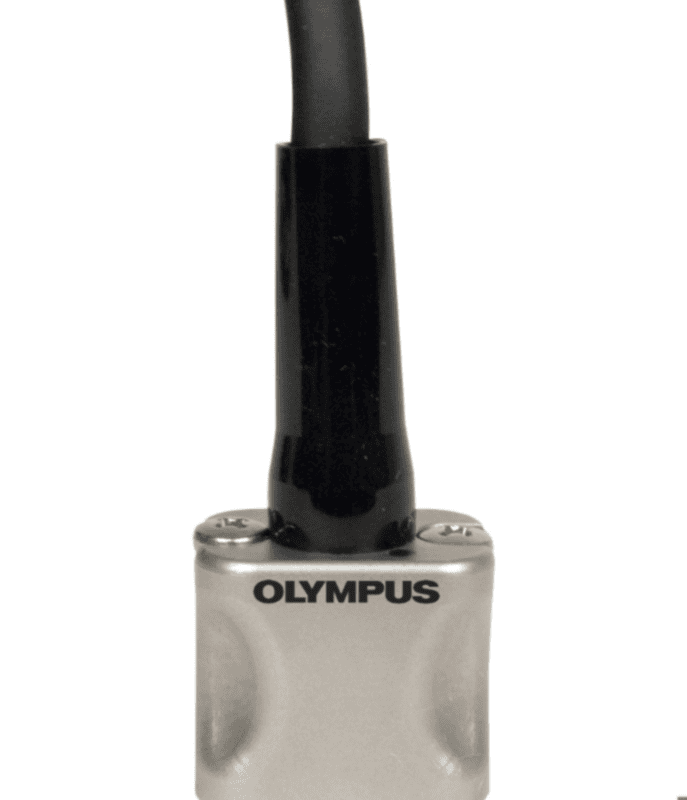

The Standard Phased Array Probe is a high-performance linear array transducer operating at a center frequency of 10 MHz. This probe features 32 individual elements, each with a pitch of 0.31 mm, resulting in a total active aperture of 9.9 mm (32 elements x 0.31 mm). The elevation, or width of the acoustic beam, is 7 mm.

This A10 series probe is designed with impedance matching to Rexolite, a material known for its excellent acoustic properties, ensuring efficient transfer of ultrasonic energy into the test material. The probe is encased in a durable PVC sheathing for protection and is equipped with a 2.5-meter cable for flexible connection to your phased array instrument. The OC designation likely refers to the manufacturer's specific connector type.

This standard phased array probe offers a balance of high frequency for excellent resolution and a sufficient number of elements for effective beam steering and focusing capabilities, making it suitable for a wide range of non-destructive testing applications.

Key Features:

• High Frequency: 10 MHz for excellent resolution and detection of small defects.

• Linear Array with 32 Elements: Provides electronic scanning, steering, and focusing capabilities.

• Compact Active Aperture: 9.9 mm total active aperture for focused ultrasound beams.

• Fine Pitch: 0.31 mm element pitch for enhanced image quality.

• Optimized Impedance Matching: Rexolite matching layer for efficient energy transfer.

• Durable Construction: PVC sheathing protects the probe in demanding environments.

• Long Cable: 2.5-meter cable for increased maneuverability.

• Standard Connector: OC connector for compatibility with specific phased array systems.

Applications:

• Weld inspection for detection of various defect types and orientations.

• Crack detection and sizing in critical components.

• Corrosion mapping and material characterization.

• Aerospace composite inspection.

• General purpose phased array inspections requiring high resolution.
