NM01RANGERWRC

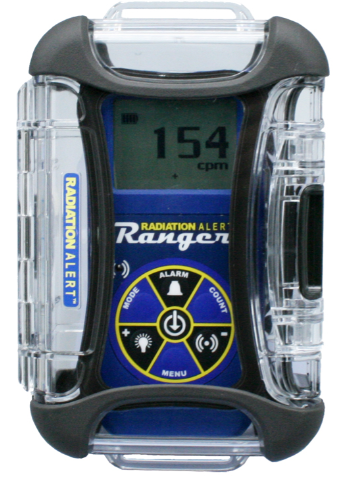

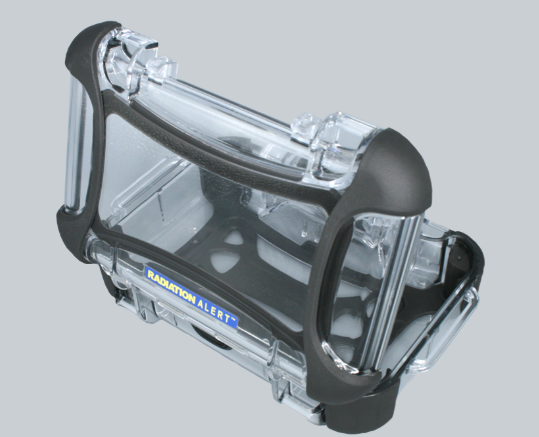

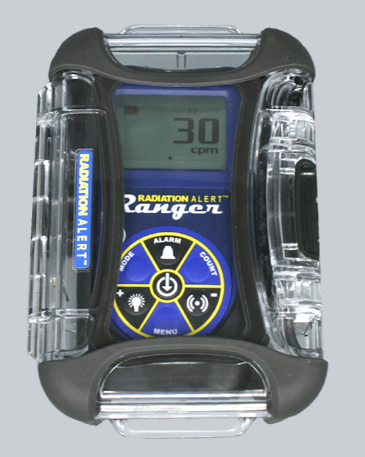

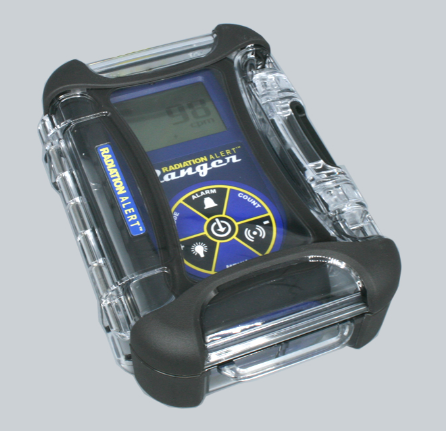

The SE INTL Water Resistance Case provides a robust and protective solution for operating your Radiation Alert® Ranger, Monitor 200, or Monitor 1000EC Geiger counter in challenging environmental conditions. Constructed from durable materials, this case offers splash-proof water resistance and protection against dust ingress, making it ideal for use in industrial, first responder, and other demanding settings.
Key Features and Benefits:
Compatibility: Specifically designed to fit the Radiation Alert® Ranger, Monitor 200, and Monitor 1000EC models.
Water Resistance: Offers splash-proof protection against low-pressure water exposure (rated to IPX6). This allows for continued operation in damp or wet conditions without risking damage to the instrument. Note: It is not intended for submersion or use while diving or swimming.
Dust Protection: Provides total protection against dust ingress (rated to IP5X), ensuring the sensitive internal components of the Geiger counter remain free from particulate contamination.
Gamma Detection: The case is designed to allow for gamma radiation detection, so the protective enclosure does not impede the primary function of the instrument.
Durable Construction: Made from Polycarbonate + ABS for the case shell and TPE for bumpers, offering good impact resistance and durability.
Temperature Range: Can be used in temperatures ranging from a minimum of -20°F (-29°C) to a maximum of 140°F (60°C).
Access to Controls: The case is designed to allow access to the necessary controls and display of the Geiger counter while it remains protected.
Lightweight: The empty case weighs approximately 1.1 lbs (0.5 kg), adding minimal bulk to the instrument.
Specifications (based on available information):
Interior Dimensions: L 6.7” (170mm) x W 3.8” (96mm) x H 2.9” (49mm)
Exterior Dimensions: L 7.4” (188mm) x W 5.1” (130mm) x H 2.6” (65mm)
Weight (empty): 1.1 lbs (0.5 kg)
IP Rating: IP5X (Dustproof), IPX6 (Water Resistant)
Materials: Polycarbonate + ABS (case), TPE (bumpers), 304 stainless steel (pins/hardware), Nylon with Gore® membrane (purge valve), Nylon with POM (strap), TPE (interior web).
