NM01X0AW0034

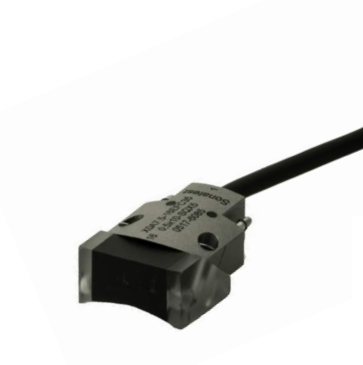

The Sonatest X0AW-N45S-IHC is a precision-engineered ultrasonic wedge designed for advanced angled beam inspections in non-destructive testing (NDT) applications, particularly on curved surfaces. This wedge is specifically crafted to generate a 45-degree shear wave (SW) within steel, achieved through a 39-degree cut angle that accounts for the refraction of ultrasonic waves. A critical feature of this wedge is its integrated irrigation system, enabling continuous and consistent couplant delivery during inspections, significantly enhancing efficiency and reliability, especially during prolonged testing. This model is tailored for inspecting surfaces with a 4-inch Outside Diameter (OD) radius, ensuring optimal ultrasonic beam coupling and transmission on these specific geometries. With a 0mm delay line, it facilitates direct contact inspections. Manufactured by Sonatest, a recognized leader in NDT equipment, the X0AW-N45S-IHC wedge provides exceptional performance, accuracy, and durability for critical inspections on curved surfaces with a 4" OD.

Key Features and Benefits:

• 45-Degree Shear Wave (SW) in Steel:

  • Optimized for detecting flaws oriented at specific angles within steel structures.

  • Enhances inspection accuracy and effectiveness.

• 39-Degree Cut Angle:

  • Precisely calculated to produce a 45-degree shear wave in steel, compensating for refraction.

• Integrated Irrigation System:

  • Provides continuous couplant delivery, improving inspection efficiency and consistency.

  • Ideal for prolonged testing and challenging inspection environments.

• 4-Inch Outside Diameter (OD) Radius:

  • Designed for accurate inspections on curved surfaces with a 4-inch OD.

  • Ensures optimal ultrasonic beam coupling and transmission.

• 0mm Delay Line:

  • Allows for direct contact with test material.

• Sonatest Manufacturing:

  • Manufactured by Sonatest, a trusted provider of high-quality NDT equipment.

Applications:

• Weld Inspections on Curved Surfaces (4" OD):

  • Detecting weld defects on pipes and other curved structures with a 4" OD.

• Pipeline Inspections:

  • Inspecting pipelines for corrosion and flaws.

• Structural Integrity Assessments:

  • Evaluating curved components with a 4" OD.

• General NDT on Curved Surfaces (4" OD):

  • Performing angled beam inspections on curved surfaces
