NM01REVOLVERDUAL

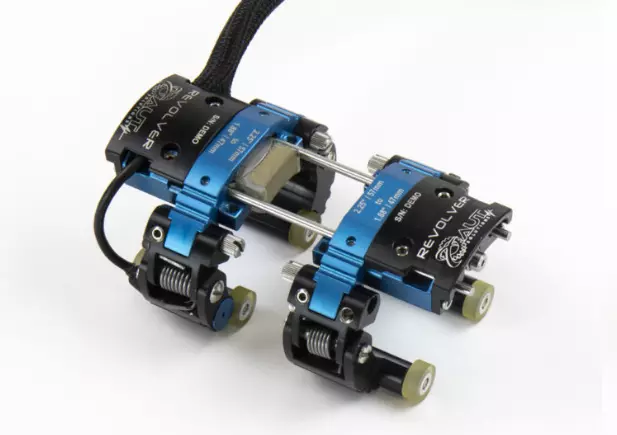

The AUT Solutions Revolver-Dual is an advanced, dual-sided, bracelet-style encoded clamp scanner specifically engineered for highly accurate phased array ultrasonic testing (PAUT) of small bore piping. This specialized scanner is designed to inspect outer diameters (O.D.) ranging from 0.800 inches (20.32 mm) to 4.500 inches (114.3 mm), making it ideal for a wide range of small diameter pipes and tubes.

A key advantage of the Revolver-Dual is its low-profile design, allowing it to operate in areas with as little as 0.625 inches (15.8 mm) of clearance. This feature is critical for inspections in confined spaces, such as boiler tubes or densely packed piping systems. Its "dual-sided bracelet style" means it wraps around the pipe, holding two phased array probes simultaneously to provide complete weld coverage in a single scan, significantly increasing inspection efficiency. The integrated encoder ensures precise positional data collection, enabling the creation of high-resolution C-scan images for detailed flaw mapping and sizing.

The Revolver is designed for simplicity: users select the appropriate band size, snap the scanner onto the pipe, and are ready to scan. All components are machined from high-grade anodized aluminum for durability and long life. It is compatible with a wide range of commercial phased array flaw detectors, including Olympus OmniScan, TD Scan, M2M, GE, Zetec, and VEO systems. The package includes an impact device and a UCI probe, a test block for calibration, coupling paste, a USB cable, a pendrive with dmq DataCenter software for data management, a certificate of conformity, and a high-impact carrying case for safe transport and storage.

Key Selling Points:

• Small Bore Pipe Expertise: Specifically designed for accurate PAUT on pipes from 0.800" to 4.500" O.D.

• Dual-Sided Inspection: Enables complete weld coverage in a single pass, enhancing efficiency.

• Ultra Low Profile (0.625" Clearance): Perfect for inspections in highly confined or limited-access areas.

• Bracelet-Style Clamp: Provides secure and stable attachment around the pipe for consistent scanning.

• High-Resolution Encoded Data: Ensures precise positional information for detailed C-scan imaging and flaw mapping.

• Robust Aluminum Construction: Built for durability and long life in demanding industrial environments.

• Broad Compatibility: Works with leading phased array flaw detectors from various manufacturers.

• Comprehensive Kit: Includes essential accessories for immediate deployment, including probes, test block, software, and a rugged case.

Benefits:

• Maximized Inspection Efficiency: Reduces scan time by providing dual-sided coverage in one pass.

• Access to Challenging Areas: Enables critical inspections in previously inaccessible small bore piping.

• Superior Data Quality: Produces highly accurate and repeatable results for reliable flaw detection and sizing.

• Streamlined Workflow: Simple setup and comprehensive kit make it ready for immediate use.

• Durable and Reliable: Designed for continuous performance in harsh industrial settings.
