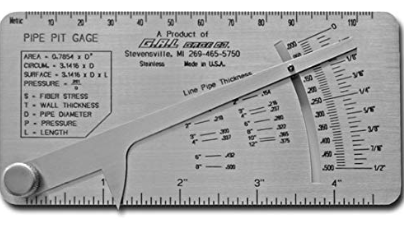

GAL GAGE — Pipe Pit Gauge CAT 17
Stainless Steel Pit Depth Gauge for Pipe, Corrosion & Surface Measurement SKU: CAT 17
Overview
The GAL GAGE CAT 17 Pipe Pit Gauge is a precision inspection tool designed for measuring pit depth, corrosion damage, and surface irregularities on pipes, tanks, vessels, and structural components. Built from all stainless steel, this gauge provides durability, corrosion resistance, and reliable performance in demanding field and shop environments.
With a measurement range of 0 to 1/2", the gauge allows inspectors to evaluate material loss and surface pitting quickly and accurately. Its scale includes 1/64" and .010" increments, supporting practical measurement flexibility for corrosion inspection and maintenance documentation.
The adjustable arm can be locked in place at any dimension, helping inspectors preserve readings, improve repeatability, and simplify field reporting. Available in inch or metric versions, the CAT 17 is a practical tool for corrosion monitoring, pipeline inspection, and industrial QA/QC workflows.
What's Included
| Item | Details |
|---|---|
| Pipe Pit Gauge | GAL GAGE CAT 17 stainless steel pit depth gauge |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 8.0 in |
| Width | 4.0 in |
| Height | 1.0 in |
| Dimensions (L × W × H) | 8.0 × 4.0 × 1.0 in |
| Weight | 0.5 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Pipe pit gauge / corrosion depth gauge |
| Model | CAT 17 |
| Measurement Range | 0 to 1/2" |
| Scale Increments | 1/64" and .010" |
| Material | All stainless steel |
| Locking Feature | Arm locks in place at any dimension |
| Units Available | Inch or metric |
| Application | Pit depth and corrosion measurement |
| Manufacturer | GAL GAGE |
| SKU | CAT 17 |
Performance Features
Pit Depth Measurement
Designed to measure corrosion pits, surface damage, and material loss on pipe and metal surfaces.
Dual Increment Scale
Provides readings in 1/64" and .010" increments for practical inspection flexibility.
Locking Measurement Arm
Allows the arm to be locked at any dimension for repeatable checks and easier documentation.
All Stainless Steel Construction
Provides durability and corrosion resistance for long-term field use.
User-Friendly Design
- Compact and easy to carry
- Simple manual measurement operation
- Locking arm helps preserve readings
- Available in inch or metric configurations
- Designed for efficient corrosion inspection workflows
Built for Industrial Environments
- Durable stainless steel construction
- Reliable for field, shop, and plant inspections
- Suitable for corrosion monitoring programs
- Designed for professional NDT and QA/QC use
Compatibility
Compatible with:
- Pipeline inspection workflows
- Tank and vessel corrosion surveys
- Visual inspection and NDT programs
- Maintenance and asset integrity inspections
- Field corrosion measurement kits
Ideal Applications
- Pipe pit depth measurement
- Corrosion monitoring
- Pipeline and vessel inspection
- Tank inspection and maintenance
- Surface damage evaluation
- Oil & gas and petrochemical inspection
- Industrial QA/QC and repair assessment
About GAL GAGE
GAL GAGE manufactures practical welding and inspection gauges designed for dimensional verification, weld inspection, and corrosion assessment. Their tools are widely used by inspectors, welders, and QA/QC professionals where durability, accuracy, and field-ready performance are essential.
