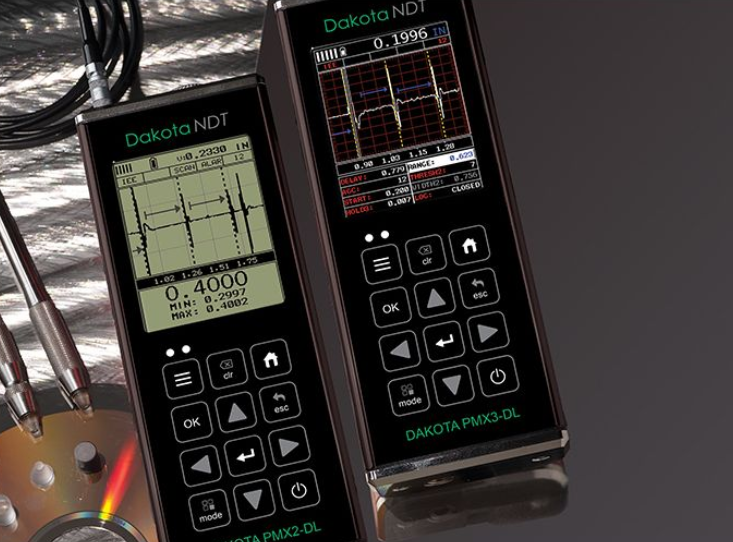

Dakota NDT — PMX3-DL Precision Thickness Gauge (PVX Colour)
High-Resolution Precision Ultrasonic Thickness Gauge with AMOLED ¼ VGA Display, A-Scan, B-Scan & 4 GB Memory SKU: Z-157-0007Overview
The Dakota NDT PMX3-DL Precision Thickness Gauge, also referenced as PVX Colour, is a professional ultrasonic thickness measurement instrument designed for high-resolution material inspection, precision thickness verification, and advanced NDT workflows. Built for field, shop, and laboratory use, this gauge supports accurate measurement across metals, plastics, composites, and industrial materials.
The PMX3-DL provides 0.001 mm high resolution and a range of display options including A-Scan, B-Scan, Pulse-Echo, and Echo-Echo. Its AMOLED ¼ VGA display with 60 Hz screen refresh and rotating landscape view provides clear visual presentation of inspection data, helping technicians review measurements, waveforms, and scan information efficiently.
Equipped with manual or automatic gain control, 110 dB gain range depending on selected mode, user-definable setups, multiple language display, visual and audible alarms, high-speed scan at 250 readings per second, differential mode, minimal thickness alarm, 4 GB internal memory, and data management software, the PMX3-DL is built for professional inspection teams requiring precision, documentation, and advanced measurement control.
What's Included
| Item | Details |
|---|---|
| Thickness Gauge | Dakota NDT PMX3-DL Precision Thickness Gauge |
| Model Reference | PVX Colour |
| Display | AMOLED ¼ VGA display |
| Screen Refresh | 60 Hz |
| View Orientation | Rotating landscape view |
| Display Modes | A-Scan, B-Scan, Pulse-Echo, Echo-Echo |
| Data Storage | 4 GB internal memory |
| Software | Data management software |
| Alarm Functions | Visual and audible alarm, minimal thickness alarm |
| Documentation | User manual / operating instructions, if included |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 14.0 in |
| Width | 12.0 in |
| Height | 6.0 in |
| Dimensions (L × W × H) | 14.0 × 12.0 × 6.0 in |
| Weight | 5.0 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Precision ultrasonic thickness gauge |
| Model | PMX3-DL |
| Model Reference | PVX Colour |
| Resolution | 0.001 mm |
| Display Type | AMOLED ¼ VGA |
| Screen Refresh | 60 Hz |
| View Orientation | Rotating landscape view |
| Display Options | A-Scan, B-Scan, Pulse-Echo, Echo-Echo |
| Gain Control | Manual or AGC |
| Gain Range | 110 dB, varies with selected mode |
| Automatic Gain Control | Yes |
| User Setups | User definable setups |
| Display Language | Multiple language display |
| Alarm Functions | Visual and audible alarm with high and low limit settings |
| Calibration Options | Multiple calibration and material selection options |
| High-Speed Scan | 250 readings per second |
| Differential Mode | Included |
| Minimal Thickness Alarm | Included |
| Data Storage | 4 GB internal memory |
| Software | Data management software |
| Application | Precision thickness measurement and material verification |
| Manufacturer | Dakota NDT |
| SKU | Z-157-0007 |
Performance Features
0.001 mm High Resolution
Provides precision measurement capability for applications requiring detailed material thickness verification.
AMOLED ¼ VGA Display
Offers clear color viewing with 60 Hz screen refresh and rotating landscape view for efficient inspection review.
Multiple Display Modes
Supports A-Scan, B-Scan, Pulse-Echo, and Echo-Echo display options for flexible inspection and data interpretation.
4 GB Internal Memory
Supports data output, storage, and inspection documentation for professional reporting and quality control programs.
User-Friendly Design
Multiple language display supports flexible operator use
User-definable setups allow customized inspection configurations
Visual and audible alarms support high and low tolerance monitoring
Differential mode helps compare measurement variation against reference values
Data management software supports inspection records and reporting workflows
Built for Industrial Environments
Designed for professional ultrasonic NDT applications
Suitable for precision measurement, QA/QC, and production environments
Practical for field, shop, and laboratory inspection workflows
Built for repeated measurement and documentation use
Supports demanding inspection programs requiring high accuracy and data management
Compatibility
Compatible with:
Ultrasonic precision thickness measurement workflows
A-Scan and B-Scan inspection procedures
Pulse-Echo and Echo-Echo measurement applications
Material calibration and selection workflows
Data storage and reporting processes
Manufacturing QA/QC and industrial NDT programs
Ideal Applications
Precision ultrasonic thickness measurement
Material thickness verification
Manufacturing quality control
Production inspection
Corrosion monitoring
A-Scan and B-Scan evaluation
Differential thickness comparison
Field, shop, and laboratory NDT workflows
About Dakota NDT
Dakota NDT is a trusted manufacturer of ultrasonic testing equipment, thickness gauges, flaw detectors, probes, cables, and inspection accessories. Their products are widely used in professional NDT environments where accuracy, durability, and consistent inspection performance are essential.
