NM01QC5050

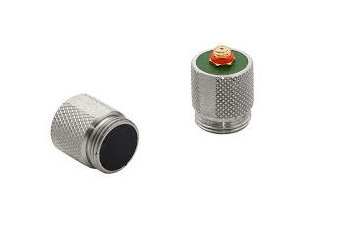

The DAKOTA NDT QUICK CHANGE SHEAR WAVE TRANSDUCER (QC) is a high-performance ultrasonic transducer engineered for efficient and precise angled beam inspections, featuring a convenient quick-change interface. This transducer operates at a nominal frequency of 5 MHz with a 0.5-inch element diameter, making it a versatile choice for a wide range of weld inspection, flaw detection, and material characterization applications.

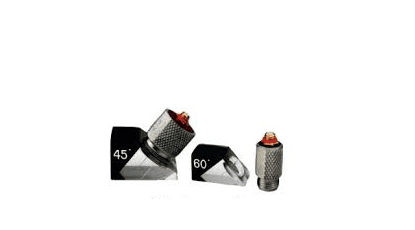

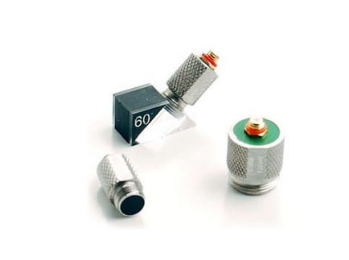

The defining feature of this transducer is the Quick Change (QC) design, incorporating a specialized threaded interface that allows for rapid and secure attachment to a variety of compatible angle beam wedges without the need for tools. This significantly streamlines inspections where multiple beam angles are required or when switching between different transducers on the same wedge.

Operating at 5 MHz, this transducer excels in applications demanding good resolution for detecting smaller discontinuities while still offering adequate penetration for many common materials. The 0.5-inch element size provides a balance between sensitivity and beam focusing.

Equipped with a standard Microdot connector, this transducer ensures a reliable and secure connection to a wide range of ultrasonic testing instruments. Manufactured by DAKOTA NDT, a trusted leader in the non-destructive testing (NDT) industry, this QC series shear wave transducer is a valuable asset for NDT professionals seeking to enhance inspection efficiency and accuracy.

Key Selling Points:

• Quick Change (QC) Compatibility: Designed for rapid, tool-free interchange with compatible Dakota NDT wedges.

• Optimal 5 MHz Frequency: Provides a good balance of penetration and resolution for general shear wave inspection.

• Versatile 0.5-inch Element Size: Suitable for a wide range of inspection applications.

• Microdot Connector: Ensures a reliable and secure connection to UT instruments.

• Durable Construction: Built to withstand demanding industrial environments.

• Manufactured by DAKOTA NDT: A trusted leader in ultrasonic testing equipment.

• Enhanced Inspection Efficiency: Quick interchangeability minimizes downtime.

Benefits:

• Increased Productivity: Rapid transducer and wedge changes save valuable inspection time.

• Versatile Inspection Capabilities: Easily adaptable for different inspection angles using QC wedges.

• Reliable Performance: Delivers consistent and accurate shear wave signals.

• Easy to Use: The quick change mechanism simplifies transducer and wedge changes.

• Durable and Long-Lasting: Built to withstand the rigors of field and shop environments.

Applications:

This Quick Change Shear Wave Transducer is ideal for a wide range of angled beam ultrasonic testing applications, including:

• General and detailed weld inspection in various industries.

• Flaw detection in metals, composites, and other materials.

• Inspections requiring frequent changes of inspection angle.

• Material characterization and evaluation.

• Quality control processes in manufacturing and fabrication.

The DAKOTA NDT QUICK CHANGE SHEAR WAVE TRANSDUCER (QC), 5 MHz, 0.5" offers a versatile, efficient, and reliable solution for shear wave ultrasonic testing, particularly when used in conjunction with Dakota NDT's Quick Change wedge system. Its balanced frequency and element size make it a valuable tool for a broad spectrum of inspection needs.
